公司简介

iXBlue公司总部设在法国圣日耳曼莱昂(Saint Germain en Laye)这座巴黎郊区最富有的城市。由法国Photline Technologies和专业特种光纤制造企业iXFiber合并而成。是国际知名的水下导航定位设备和海洋锚定观测设备生产商，导航、定位和成像解决方案研发商。

其主要产品包括惯性导航系统和声学导航系统，包括惯性导航系统PHINS、ROVINS，长基线定位系统RAMSES，超短基线定位系统GAPS、POSIDONIA等产品。其导航设备广泛应用于国际知名的水下机器人设备中，并在实际使用中表现出了良好的性能。iXBlue产品凭借其整体性能、可靠性和终身的成本效益而不断被选中。由于没有任何随时间而退化的活动件或关键部件，该设备具备最佳的总拥有成本。因此，该设备可靠性较好并且无需维护。这种设备还具备紧凑、轻型和节能的特征，并且与潜艇通常使用的系统不同，整合非常简单。

依托30多年的从业经验，iXBlue 也成为了面向海军防御应用终极性能 FOG 导航领域的全球领导者。

产品列表

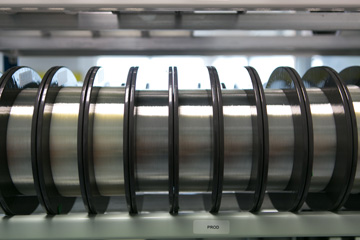

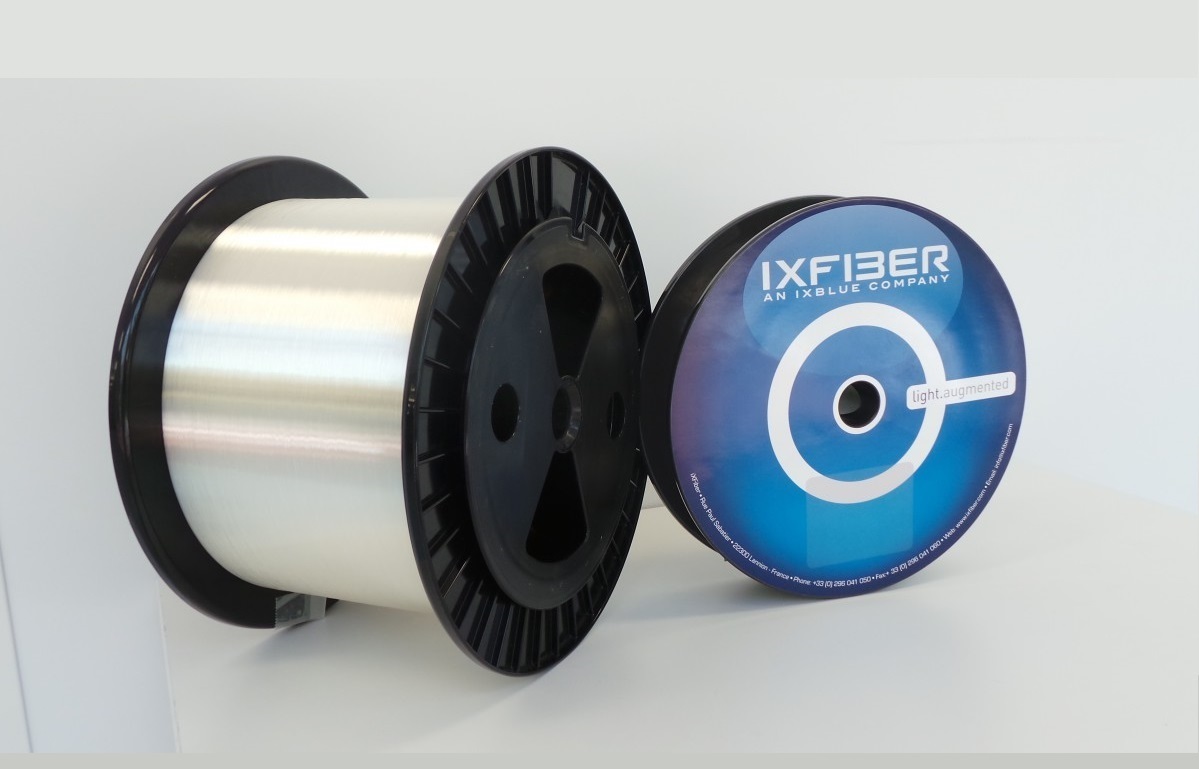

SPECIALTY FIBERS

iXBlue Photonics offers a comprehensive range of iXFiber specialty fibers for a wide variety of applications:

• active doped fibers for fiber amplifiers and lasers

• polarization maintaining fibers for Fiber Optics Gyroscopes

• passive PM and SM fibers for fiber amplifiers and lasers

• polarizing fibers for Fiber Optics Sensors and Gyroscopes

• spun fibers for Fiber Optic Current Sensors

• photosensitive fibers for FBG inscription

• fiber optics coils for Fiber Optic Gyroscopes or Sensors

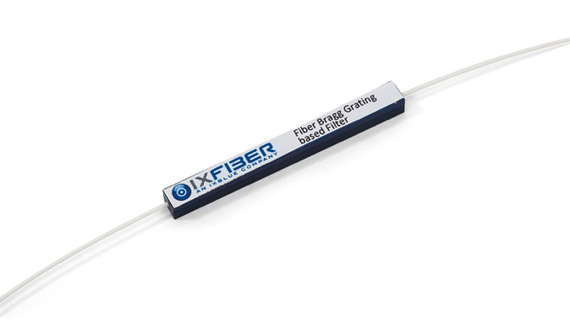

FIBER BRAGG GRATINGS

the iXBlue Photonics range of FBG includes :

• FBG laser mirrors

• Gain Flattering Filters for fiber amplifiers

• FBG for fiber optics sensors

• FBG arrays : up to 100 HR FBGs can be inscribed in the same fiber, without any splice

• FBG Assembly for Single Frequency DFB Laser

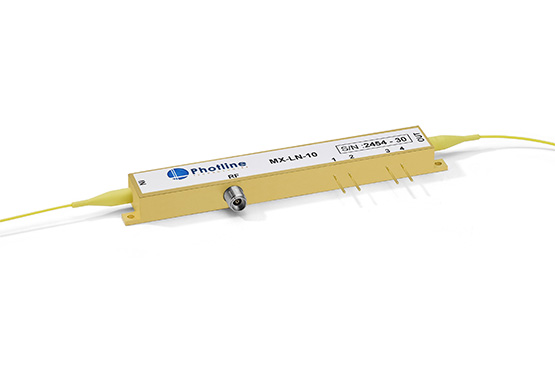

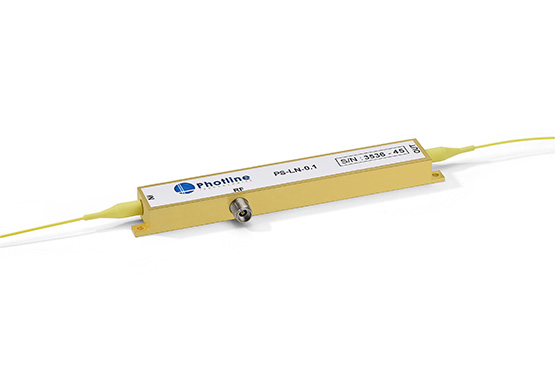

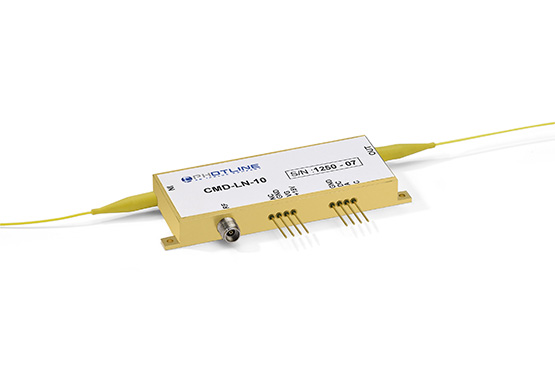

LITHIUM NIOBATE ELECTRO OPTIC MODULATOR

The most comprehensive range of commercial Litium Niobate (LiNbO3) Electro Optic Modulators.

Intensity and phase modulators, from low frequencies to 40 Gbps / 40 GHz and for a broad range of wavelength windows including : 800 nm, 1060 nm, 1300 nm, 1550 nm and 2 microns. When they are matched with the family of Photline Technologies RF drivers, these modulators serve all applications, from laboratory experiments to demanding industrial systems.

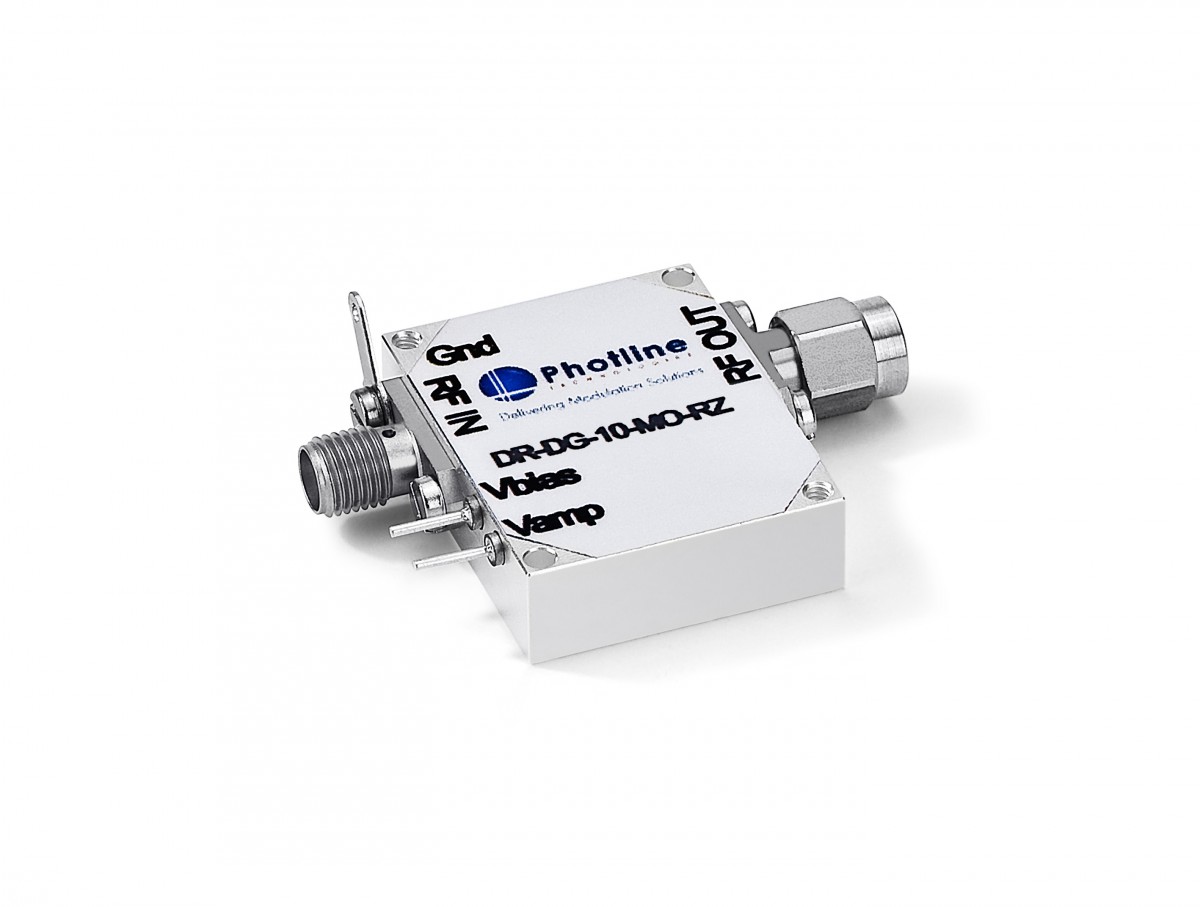

RF MODULATOR DRIVER

The iXblue Photonics family of RF connectorized modules includes drivers for modulators, RF amplifiers up to 40 GHz and specific modules such as D flip-flop and delay lines.

The modulator drivers are intended to feed modulators with an electrical signal exhibiting optimized peak-to-peak voltage, rise/fall time and jitter.

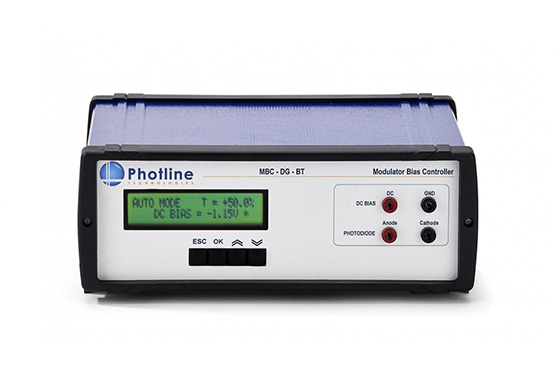

MODULATOR BIAS CONTROLLER

Photline Modulator Bias Controllers (MBC) are designed to compensate the inherent drift of Mach-Zehnder modulators due to aging and environmental variations. The MBC lock the operating point of the intensity modulators so as to keep systems and lab set-ups at their top level performance.

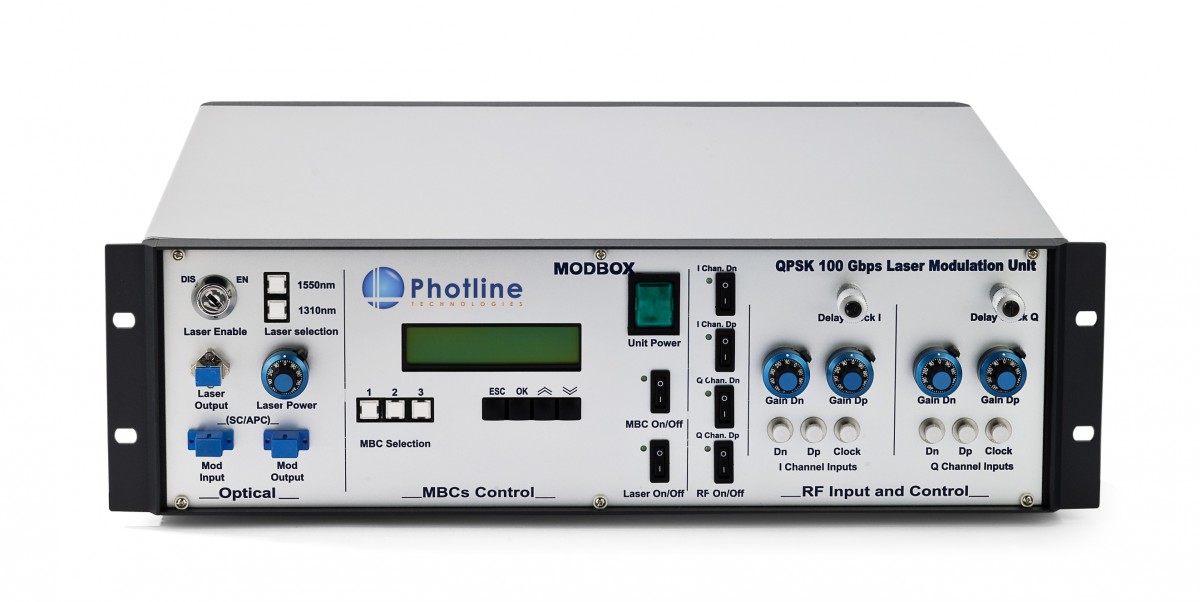

MODBOX

iXblue Photonics' ModBox are custom designed Modulation Units and Transmitters.

They incorporate a complete and dedicated modulation stage with power supply and control electronics and optional laser source and receiver. ModBox can be taylored to accomodate a broad variety of applications : pulse generation, pulse picking, spectral broadening, analog modulation and all formats of digital communication.

技术能力

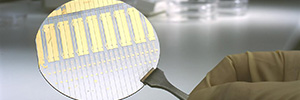

LINBO3 MODULATORS TECHNOLOGY

To produce its modulator chips, iXBlue Photonics masters the two key waveguide processes to inscribe optical waveguides in the LiNbO3 substrate : titanium diffusion and annealed proton exchange. Therefore we can select the most appropriate process depending on the final application : Ti diffusion for 1550 nm high data rate telecom modulators, APE for highly polarizing circuits and Near InfraRed modulators.

SPECIALTY FIBERS AND FIBER COMPONENTS TECHNOLOGY

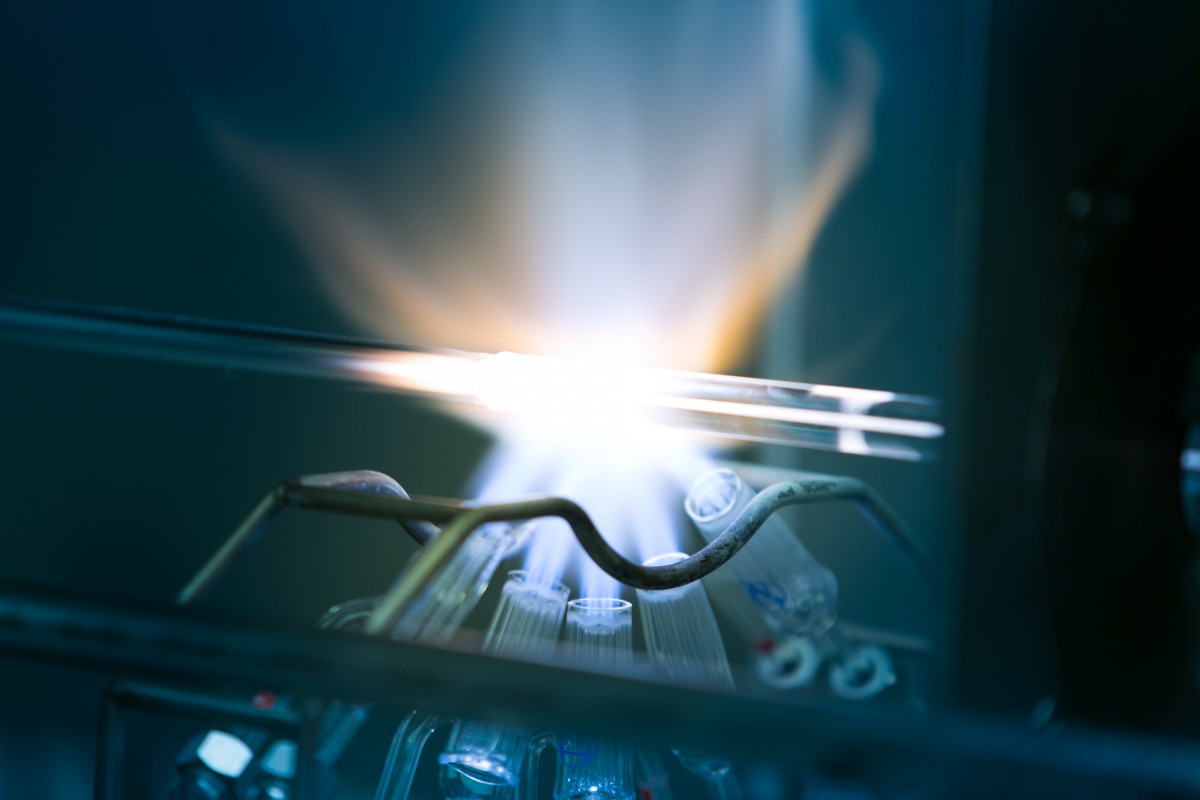

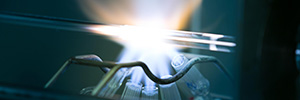

Our specialty fibers preforms are produced using the MCVD process. Preforms can be further drilled, machined, grinded, polished in order to obtain fibers with specific properties.

iXBlue Bragg gratings are photowritten using either the Lloyd mirror technique or phase masks. That last process is very well suited for volume production, when the interferometric Lloyd mirror process offers an unparalleled adaptability for prototypes or low volume of specific devices.

应用领域

iXBlue Photonics solutions serve a broad range of applications

In-Stock  Modulators

In-Stock Lithium Niobate Electro Optic Modulators

950 nm   1000 nm   1310 nm   1550 nm

800 nm / 950 nm modulators

Product reference                                                       Specifications

NIR-MPX950-LN-0.1-00- P-P-FA-FA -14441-21          1000 nm band, DC coupled to 300 MHz Phase Modulator

– tested @944 nm

NIR-MPX800-LN-05-00-P-P-FA-FA –

15129-15 – tested @780 nm                               800 nm band 10 GHz Phase Modulator  15129-15 – tested @780 nm

NIR 1000 nm modulators

Product reference                                               Specifications

NIR-MPX-LN-0.1-00-P-P-00-00-15495-22           1000 nm band, DC coupled to 300 MHz Phase Modulator

NIR-MPX-LN-0.1-00-P-P-FA-FA-15646-14           1000 nm band, DC coupled to 300 MHz Phase Modulator

NIR-MPX-LN-0.1-00-P-P-FA-FA-LIL -15494-02    1000 nm band, DC coupled to 300 MHz Phase Modulator

NIR-MPX-LN-05-00-P-P-FA-FA -15168-07           1000 nm band 10 GHz Phase Modulator

1310 modulators

Product reference                                                 Specifications

MPZ1300-LN-10-00-P-P-FA-FA -14483-27            1310 nm band 10 GHz Phase Modulator DC coupled option phase modulator

MPZ1300-LN-10-00-P-P-FA-FA -14483-28             1310 nm band 10 GHz Phase Modulator DC coupled option phase modulator

MPZ1300-LN-10-00-P-P-FA-FA -14483-14             O Band, up to 20 GHz,DC coupled phase modulator

MPZ1300-LN-10-00-P-P-FA-FA -14483-16             O Band, up to 20 GHz,DC coupled phase modulator

MX1300-LN-20-PD-P-P-FA-FA -14753-16              1310 nm band 20 GHz Intensity Modulator

1550 nm modulators

Product reference                                                    Specifications

MXER-LN-10-PD-P-P-FA-FA-35dB -15462-14          1550 nm band and 10 GHz Very High Extinction Ratio Lithium Niobate Intensity Modulators

MXER-LN-10-PD-P-P-FA-FA-40dB -15462-01          1550 nm band and 10 GHz Very High Extinction Ratio Lithium Niobate Intensity Modulators

MXER-LN-10-PD-P-P-FA-FA-40dB -15462-03          1550 nm band and 10 GHz Very High Extinction Ratio Lithium Niobate Intensity Modulators

MXER-LN-20-00-P-P-FA-FA-30dB -15192-06           1550 nm band and 20 GHz Very High Extinction Ratio Lithium Niobate Intensity Modulators

MXER-LN-20-PD-P-P-FA-FA-30dB -14875-06          1550 nm band and 20 GHz Very High Extinction Ratio Lithium Niobate Intensity Modulators

MXER-LN-20-PD-P-P-00-00-35dB -15192-27           1550 nm band and 20 GHz Very High Extinction Ratio Lithium Niobate Intensity Modulators

MXER-LN-20-PD-P-P-FA-FA-35dB -15058-02           1550 nm band and 20 GHz Very High Extinction Ratio Lithium Niobate Intensity Modulators

MXAN-LN-10-00-P-S-FA-FA -13782-29                     1550 nm band 10 GHz Analog Intensity Modulator

MXAN-LN-10-00-P-S-FA-FA -13784-20                     1550 nm band 10 GHz Analog Intensity Modulator

MXAN-LN-10-00-P-S-FA-FA -14000-06                    1550 nm band 10 GHz Analog Intensity Modulator

MXAN-LN-10-00-P-S-FA-FA -14000-24                    1550 nm band 10 GHz Analog Intensity Modulator

MXAN-LN-20-PD-P-P-FA-FA -14149-02                   1550 nm band 20 Gb/s Intensity Modulator

MXER-LN-20-00-P-P-FA-FA-30dB -15192-06          1550 nm band and 20 GHz Very High Extinction Ratio Lithium Niobate Intensity Modulators

MXAN-LN-40-PD-P-S-FA-FA -14854-12                   1550 nm band and 20 GHz Very High Extinction Ratio Lithium Niobate Intensity Modulators

MXIQ-LN-30-PD-P-P-FA-FA -14769-03                   1550 nm band 30 GHz IQ Modulators

MXIQ-LN-30-PD-P-P-FA-FA -15312-22                   1550 nm band  30 GHz IQ Modulators
