Azur Light System

Azur Light System（法国）

http://www.azurlight-systems.com

地址：: 11 Avenue de Canteranne Cite de la Photonique – Sirah 33600 Pessac France

电话：: +33 5 47 74 55 90

传真：: +33 5 47 74 55 99

产品：: 单频激光器红激光激光高功率激光高功率光纤激光器和放大器绿激光光纤激光器光纤放大器蓝光激光器

公司简介

ALS (Azur Light System)公司位于法国的佩萨克(Pessac)，利用波多尔大学（University of Bordeaux）和Alphanov激光与光学技术中心的创新技术，ALS公司开发、生产和商业化一系列新波长的光纤激光器，可用于科研、工业、光子医学等应用领域，ALS产品的优势是提供稳定性大大提高的、史无前例的集成的系统应用的独有全光纤解决方案。

公司简介

ALS-VISIBLE-488-515-532nm

Optical	Performance			Units
Wavelength	488	515	532	nm
Power	0.5, 1, 2, ...	0.5, 1, 2 …. 10	0.5, 1, 2 …. 10	W
Beam quality	M² < 1.1			-
Transverse mode	TEM 00			-
Spectral width longitudinal single mode multi-longitudinal mode	Single frequency: < 200 kHz⁽¹⁾ Narrow bandwidth: < 50 pm			-
Power stability	≤ ± 0.3			%
Noise RMS Single frequency Narrow bandwidth	≤ 0.05% , 10Hz to 10MHz ≤ 0.2% , 10Hz to 10MHz			-
Pointing stability	< 1			µrad/°C
Output polarisation	Polarised > 99:1			-
Output fiber	Single mode PM fiber to laser head Power splitting and fiber recoupling available ⁽²⁾			-
Operating temperature range	15-35			°C
Electrical & Mechanical
Interfacing	Analogue (local/remote), USB			-
Supply requirements	90-240V AC / 50-60 Hz			-
Power consumption ⁽²⁾	200<...< 400			W
Cooling (rack)	Integrated air-cooled system (no water)			-
Cooling (head)	“Coolerless” laser head. No heat sink or active cooling required			-
Size (LWD) – main unit ⁽³⁾	Rack 19’ 3U - 483428130			mm
Size (LWD) – laser head ⁽³⁾	From 1507540 to 27512050			mm

(1): Linewidth reduction to 10kHz available in option

(2): Depending on output power

(3): Standard dimensions. Others dimensions available for OEM

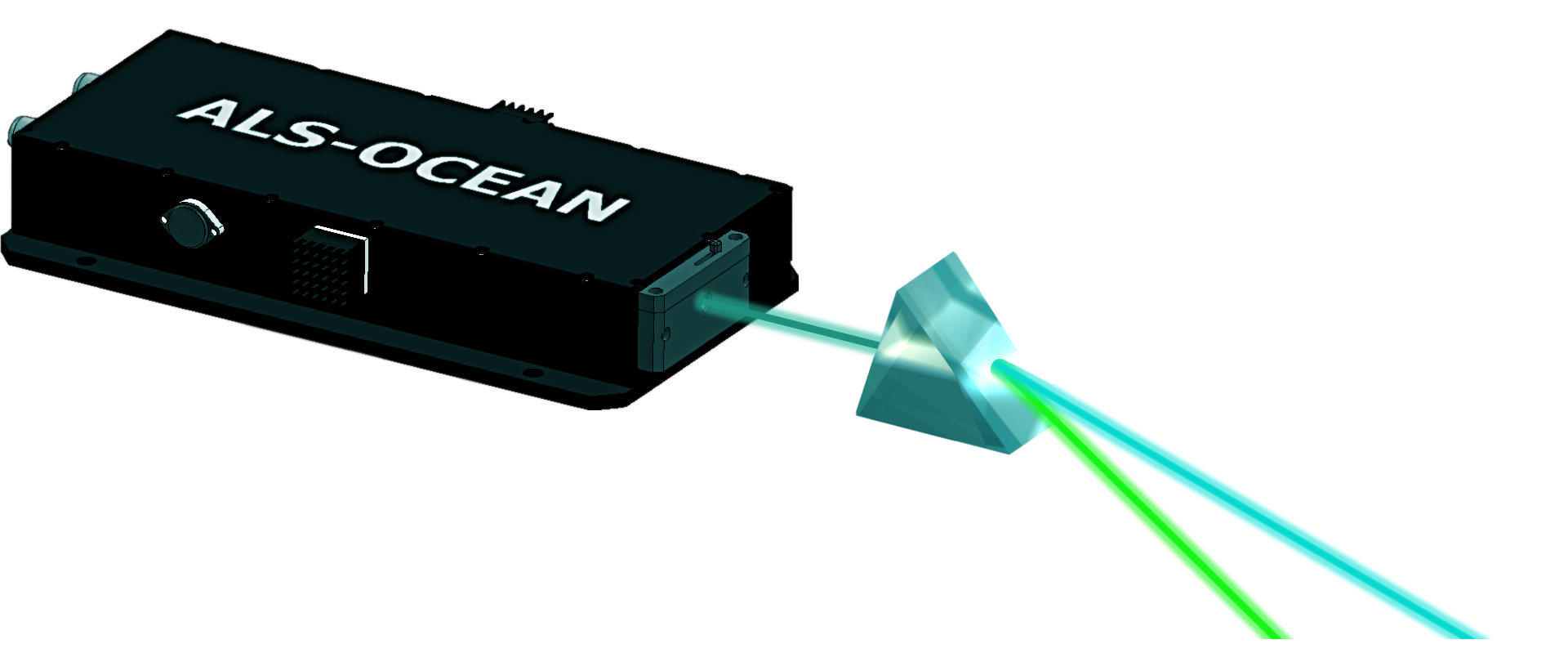

ALS-OCEAN-MULTI-WAVELENGTH

Optical	Performance			Units
Multi wavelenght platform	Combination of 2 to 3 wavelengths			-
Wavelength (1)	488	515	532	nm
Power	0.5, 1, 2,...	0.5, 1, 2 … 10	0.5, 1, 2 … 10	W
Beam quality	M² < 1.1			-
Transverse mode	TEM 00			-
Spectral width longitudinal single mode multi-longitudinal mode	Single frequency: < 200 kHz Narrow bandwidth: < 50 pm			-
Power stability	≤ ± 0.3			%
Noise RMS Single frequency Narrow bandwidth	≤ 0.05% , 10Hz to 10MHz ≤ 0.2% , 10Hz to 10MHz			-
Pointing stability	< 1			µrad/°C
Output polarisation	Polarised > 99:1			-
Output fiber	Single mode PM fiber to laser head Power splitting and fiber recoupling available			-
Operating temperature range	15-35			°C
Electrical & Mechanical
Interfacing	Analogue (local/remote), USB			-
Supply requirements	90-240V AC / 50-60 Hz			-
Power consumption	200<...< 400			W
Cooling (rack)	Integrated air-cooled system (no water)			-
Cooling (head)	“Coolerless” laser head. No heat sink or active cooling required			-
Size (LWD) – main unit ⁽²⁾	Two to three racks units 19’ 3U - 483428130			mm
Size (LWD) – laser head ⁽²⁾	29015047			mm

(1): Others wavelength in the 488-560nm range available on request.
(2): Standard dimensions. Others dimensions available for OEM.

ALS-IR-976-1030-1064nm

High power IR head with internal isolator Fiber Laser 976nm 1030nm 1064nm 5w 10w 50w

Button tech nir ir series Fiber Laser 976nm 1030nm 1064nm 5w 10w 50w

Optical	Performance			Units
Wavelength	976	1030	1064	nm
Power	5, 10, 15...	5, 10,…50	5, 10,…50	W
Beam quality	M² < 1.1			-
Transverse mode	TEM 00			-
Spectral width longitudinal single mode multi-longitudinal mode	Single frequency: < 50 kHz ⁽¹⁾ Narrow bandwidth: < 50 pm			-
Power stability	≤ ± 0.3			%
Noise RMS Single frequency Narrow bandwidth	≤ 0.05% , 10Hz to 10MHz ≤ 0.2% , 10Hz to 10MHz			-
Pointing stability	< 1			µrad/°C
Output polarisation	Polarised > 99:1			-
Output fiber	PM980/HI1060/Collimated output/laser head ⁽⁴⁾			-
Operating temperature range	15-35			°C
Electrical & Mechanical
Interfacing	Analogue (local/remote), USB			-
Supply requirements	90-240V AC / 50-60 Hz			-
Power consumption ⁽²⁾	200 <...< 400			W
Cooling (rack)	Integrated air-cooled system (no water)			-
Size (LWD) – main unit ⁽³⁾	Rack 19’ 3U - 483428130			mm

(1): Linewidth reduction to 3kHz available in option
(2): Depending on output power
(3): Standard dimensions. Others dimensions available for OEM.
(4): A laser head may be suitable, depending on wavelength, power and laser type.

High power IR optical amplifiers

High Power Standard optical Amplifiers for FC/APC external seeder				Unit
Wavelength domains (1)	975_980	1025_1052	1055_1085	nm
Output power	5, 10, …	5, 10, …, 50		W
Output power Tunability	1 to 100 (10 to 100 recommended)			%
Beam quality	M² < 1.1			-
Beam diameter « free space »	1.1 ±10%			mm
Beam divergence	< 0.4			mrad (FW@1/e^2)
Spatial mode	TEM00			-
Input optical power	15 to 150			mW
Power stability	< ± 0.2 (short term) < ± 0.3 (over 8 hours)			% %
Noise [100Hz - 10MHz]:	Seeder dependent			% rms
Frequency stability	Seeder dependent
Output polarization	Polarized > 99.9:1			-
Pointing stability	< ± 0.5			µrad/°C
Output(2)	Free space laser head			-
Laser control	Multi-turn potentiometer, Touchscreen, Analog voltage			-
Supply requirements	90-240V/50-60Hz			-
Electrical power consumption	200<…<500			W
Cooling	Air cooled			-

(1): wavelength range: the effective standard useable spectral domain is define at +/- 4nm from one requested central wavelength.

Extended wavelength range are available on demand.

(2): other on demand

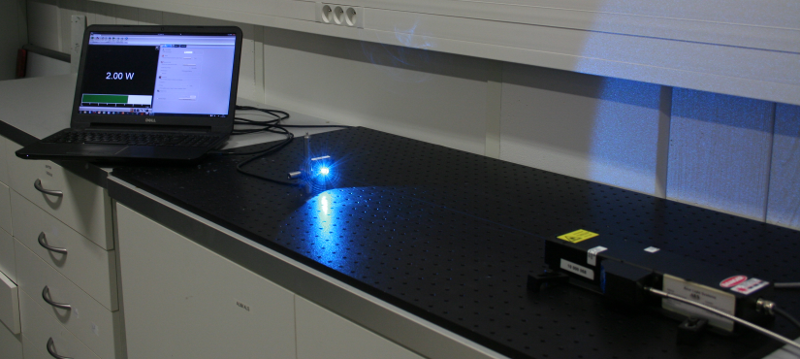

ALS BL 488 Fiber laser serie

laser bleu 488 2W table

Optical	Performance		Units
Wavelength		488	nm
Power		0.5, 1, 2	W
Beam quality	M² < 1.1		-
Transverse mode	TEM 00		-
Spectral width longitudinal single mode multi-longitudinal mode	Single frequency: < 200 kHz⁽¹⁾ Narrow bandwidth: < 50 pm		-
Power stability	≤ ± 0.3		%
Noise RMS Single frequency Narrow bandwidth	≤ 0.05% , 10Hz to 10MHz ≤ 0.2% , 10Hz to 10MHz		-
Pointing stability	< 0.5		µrad/°C
Output polarisation	Polarised > 100:1		-
Output fiber	Single mode PM fiber to laser head Power splitting and fiber recoupling available ⁽²⁾		-
Operating temperature range	15-35		°C
Electrical & Mechanical
Interfacing	Analog (local/remote)		-
Supply requirements	90-240V AC / 50-60 Hz		-
Power consumption ⁽²⁾	200<...< 300		W
Cooling (rack)	Integrated air-cooled system (no water)		-
Cooling (head)	“Coolerless” laser head. No heat sink or active cooling required		-
Size (LWD) – main unit ⁽³⁾	Rack 19’ 3U - 483428130		mm
Size (LWD) – laser head ⁽³⁾	From 1507540 to 27512050		mm

(1): Linewidth reduction to 10kHz available in option

(2): Depending on output power

(3): Standard dimensions. Others dimensions available for OEM

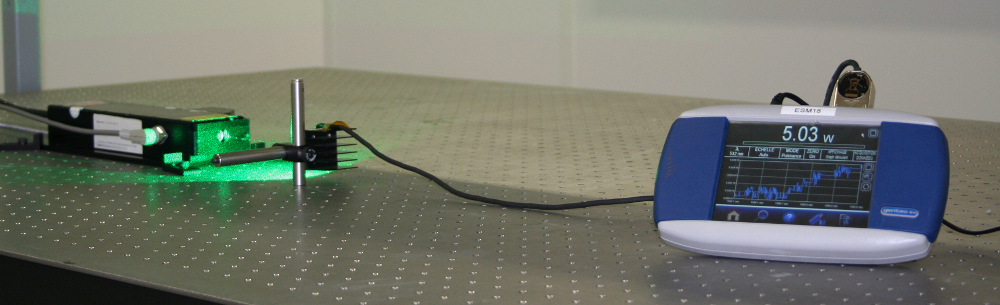

ALS GR 515 Fiber laser serie

ALS GR 515 5W ld

Optical	Performance		Units
Wavelength		515	nm
Power		0.5, 1, 2, 5, 10	W
Beam quality	M² < 1.1		-
Transverse mode	TEM 00		-
Spectral width longitudinal single mode	Single frequency: < 200 kHz⁽¹⁾		-
Power stability	≤ ± 0.3		%
Noise RMS Single frequency	≤ 0.05% , 10Hz to 10MHz		-
Pointing stability	< 1		µrad/°C
Output polarisation	Polarised > 100:1		-
Output fiber	Single mode PM fiber to laser head Power splitting and fiber recoupling available ⁽²⁾		-
Operating temperature range	15-35		°C
Electrical & Mechanical
Interfacing	Analogue (local/remote), USB		-
Supply requirements	90-240V AC / 50-60 Hz		-
Power consumption ⁽²⁾	200<...< 300		W
Cooling (rack)	Integrated air-cooled system (no water)		-
Cooling (head)	“Coolerless” laser head. No heat sink or active cooling required		-
Size (LWD) – main unit ⁽³⁾	Rack 19’ 3U - 483428130		mm
Size (LWD) – laser head ⁽³⁾	From 1507540 to 27512050		mm

(1): Linewidth reduction to 10kHz available in option

(2): Depending on output power

(3): Standard dimensions. Others dimensions available for OEM

ALS IR 976 Laser Fiber serie

Fiber Laser 976 serie ld2

Optical	Performance		Units
Wavelength		976	nm
Power		2 , 5 , 10	W
Beam quality	M² < 1.1		-
Transverse mode	TEM 00		-
Spectral width longitudinal single mode multi-longitudinal mode	Single frequency: < 50 kHz ⁽¹⁾ Narrow bandwidth: < 50 pm		-
Power stability	≤ ± 0.3		%
Noise RMS Single frequency Narrow bandwidth	≤ 0.07% , 10Hz to 10MHz ≤ 0.2% , 10Hz to 10MHz		-
Pointing stability	< 0.5		µrad/°C
Output polarisation	Polarised > 100:1		-
Output fiber	PM980/Collimated output/laser head ⁽⁴⁾		-
Operating temperature range	15-35		°C
Electrical & Mechanical
Interfacing	Analog (local/remote)		-
Supply requirements	90-240V AC / 50-60 Hz		-
Power consumption ⁽²⁾	200 <...< 300		W
Cooling (rack)	Integrated air-cooled system (no water)		-
Size (LWD) – main unit ⁽³⁾	Rack 19’ 3U - 483428130		mm

(1): Linewidth is closer to 30kHz but warrantied >50kHz
(2): Depending on output power
(3): Standard dimensions. Others dimensions available for OEM.
(4): A laser head may be suitable, depending on wavelength, power and laser type.

ALS IR 976 Laser Fiber serie

Fiber Laser 976 serie ld2

Optical	Performance		Units
Wavelength		976	nm
Power		2 , 5 , 10	W
Beam quality	M² < 1.1		-
Transverse mode	TEM 00		-
Spectral width longitudinal single mode multi-longitudinal mode	Single frequency: < 50 kHz ⁽¹⁾ Narrow bandwidth: < 50 pm		-
Power stability	≤ ± 0.3		%
Noise RMS Single frequency Narrow bandwidth	≤ 0.07% , 10Hz to 10MHz ≤ 0.2% , 10Hz to 10MHz		-
Pointing stability	< 0.5		µrad/°C
Output polarisation	Polarised > 100:1		-
Output fiber	PM980/Collimated output/laser head ⁽⁴⁾		-
Operating temperature range	15-35		°C
Electrical & Mechanical
Interfacing	Analog (local/remote)		-
Supply requirements	90-240V AC / 50-60 Hz		-
Power consumption ⁽²⁾	200 <...< 300		W
Cooling (rack)	Integrated air-cooled system (no water)		-
Size (LWD) – main unit ⁽³⁾	Rack 19’ 3U - 483428130		mm

ALS IR 1030 Fiber Laser serie

Azur Light Systems high power infrared Fiber Laser Fiber Laser 976nm 1030nm 1064nm 5w 10w 50w

Optical	Performance		Units
Wavelength		1030	nm
Power		5, 10,…50	W
Beam quality	M² < 1.1		-
Transverse mode	TEM 00		-
Spectral width longitudinal single mode	Single frequency: < 50 kHz ⁽¹⁾		-
Power stability	≤ ± 0.3		%
Noise RMS Single frequency	≤ 0.05% , 10Hz to 10MHz		-
Pointing stability	<0.5		µrad/°C
Output polarisation	Polarised > 100:1		-
Output fiber	Collimated output/laser head ⁽⁴⁾		-
Operating temperature range	15-35		°C
Electrical & Mechanical
Interfacing	Analogue (local/remote)		-
Supply requirements	90-240V AC / 50-60 Hz		-
Power consumption ⁽²⁾	200 <...< 400		W
Cooling (rack)	Integrated air-cooled system (no water)		-
Size (LWD) – main unit ⁽³⁾	Rack 19’ 3U - 483428130		mm

ALS IR 1064 Fiber Laser serie

Azur Light Systems high power infrared Fiber Laser Fiber Laser 976nm 1030nm 1064nm 5w 10w 50w

Optical	Performance		Units
Wavelength		1064	nm
Power		5, 10,…50	W
Beam quality	M² < 1.1		-
Transverse mode	TEM 00		-
Spectral width longitudinal single mode	Single frequency: < 50 kHz ⁽¹⁾		-
Power stability	≤ ± 0.3		%
Noise RMS Single frequency	≤ 0.05% , 10Hz to 10MHz		-
Pointing stability	< 0.5		µrad/°C
Output polarisation	Polarised > 99:1		-
Output fiber	PM980/Collimated output/laser head ⁽⁴⁾		-
Operating temperature range	15-35		°C
Electrical & Mechanical
Interfacing	Analogue (local/remote)		-
Supply requirements	90-240V AC / 50-60 Hz		-
Power consumption ⁽²⁾	200 <...< 400		W
Cooling (rack)	Integrated air-cooled system (no water)		-
Size (LWD) – main unit ⁽³⁾	Rack 19’ 3U - 483428130		mm

ALS GR 532 Fiber Laser serie

Azur Light Systems high power infrared Fiber Laser Fiber Laser 976nm 1030nm 1064nm 5w 10w 50w

Optical	Performance		Units
Wavelength		1064	nm
Power		5, 10,…50	W
Beam quality	M² < 1.1		-
Transverse mode	TEM 00		-
Spectral width longitudinal single mode	Single frequency: < 50 kHz ⁽¹⁾		-
Power stability	≤ ± 0.3		%
Noise RMS Single frequency	≤ 0.05% , 10Hz to 10MHz		-
Pointing stability	< 0.5		µrad/°C
Output polarisation	Polarised > 99:1		-
Output fiber	PM980/Collimated output/laser head ⁽⁴⁾		-
Operating temperature range	15-35		°C
Electrical & Mechanical
Interfacing	Analogue (local/remote)		-
Supply requirements	90-240V AC / 50-60 Hz		-
Power consumption ⁽²⁾	200 <...< 400		W
Cooling (rack)	Integrated air-cooled system (no water)		-
Size (LWD) – main unit ⁽³⁾	Rack 19’ 3U - 483428130		mm
