公司简介
AUREA公司法国Besancon,是全球领先的创新型光学仪器制造商，其设计和制造的新一代单光子计数器在生物技术，纳米技术，生命科学，光网络，生物医药，环保和航空产业取得了极大地成功。
产品列表
PIXEA-xxxx | Spectral width (nm) | Pulse width1 (ps) | Peak power2 (mW) | Average power3 (mW) | ||
PIXEA-375 | < 5 | < 45 | > 300 | 2 | ||
PIXEA-405 | < 5 | < 45 | > 300 | 2 | ||
PIXEA-440 | < 5 | < 60 | > 150 | 1.5 | ||
PIXEA -470 | < 5 | < 60 | > 150 | 1.5 | ||
PIXEA -480 | < 5 | < 60 | > 100 | 1 | ||
PIXEA -510 | < 10 | < 120 | > 150 | 1 | ||
PIXEA -635 | < 7 | < 45 | > 200 | 1.5 | ||
PIXEA -665 | < 7 | < 45 | > 200 | 1.5 | ||
PIXEA -690 | < 7 | < 50 | > 200 | 1.5 | ||
PIXEA-720 | < 7 | < 50 | > 200 | 1.5 | ||
PIXEA -770 | < 7 | < 50 | > 100 | 1 | ||
PIXEA -830 | < 10 | < 45 | > 100 | 1 | ||
PIXEA -850 | < 10 | < 50 | > 100 | 1 | ||
PIXEA -850-DFB | < 0.5 | < 90 | > 100 | 0.5 | ||
PIXEA -880 | < 10 | < 50 | > 100 | 1 | ||
PIXEA -905 | < 10 | < 50 | > 100 | 1 | ||
PIXEA -940 | < 10 | < 50 | > 100 | 1 | ||
PIXEA -980 | < 10 | < 50 | > 100 | 1 | ||
PIXEA -1060 | < 15 | < 60 | > 100 | 1 | ||
PIXEA -1060-DFB | < 0.5 | < 60 | > 100 | 0.5 | ||
PIXEA -1310 | < 15 | < 35 | > 50 | 1 | ||
PIXEA -1310-DFB | < 0.5 | < 30 | > 50 | 0.5 | ||
PIXEA -1550 | < 15 | < 35 | > 50 | 0.5 | ||
PIXEA -1550-DFB | < 0.5 | < 30 | > 50 | 0.5 | ||
Other wavelengths, pulse widths or power available on request | ||||||
AUREA Technology received the 2014 CLEO/Laser Focus World Innovation Award | AUREA Technology offers the first worldwide high-brightness stand-alone quantum Entangled Photon Pair Source at telecom wavelengths, ideal for quantum information technologies. The TPS photon-pair source series are high-performance, compact and easy-to-use self-contained twin photon source. With only 5mW of pump power, it performs a spectral brightness of more than 100,000 photons/s/pm! This innovative twin-photon source is very well designed. It provides a very convenient front-panel display and easy-to-use PC Graphical User Interface via its fast USB connection. Moreover, DLL libraries are also provided for LabVIEW, C++, and Visual basic user interface developments. Entangled photons have appeared to be a promising way for both demonstrating quantum physics principles, and new quantum information applications. For example, entangled photons allows the development of Quantum Key Distribution protocols over few hundreds of kilometers. In biological imaging applications, entangled-photon light source allows yielding original dispersion-free measurements. Hence, the manipulation of the non-classical properties of such photon source have great potential for the development of very new quantum applications. |
Features
| Applications
| Datasheet
|
| The SPD_A_VIS from AUREA Technology is the “best-in-class” high-performance and easy-to-use single photon counting modules engineered for the most demanding low-level-of-light [400 nm - 1060 nm] applications. The SPD_A_VIS can be used in continuous mode (free-running) or in gated-mode. The newly designed SPD_A_VIS is the only commercially available photon counting module which provides up to 2 independent detection channels, and also a large variety of valuable options, such as the fully integrated Time-to-Digital Converter. |
Features
| Applications
| Datasheet
|
| The SPD_A_NIR from AUREA Technology is the “best-in-class” high-performance and easy-to-use Near Infrared single photon counting modules engineered for the most demanding low-level of-light applications, such as single photon counting, Time Correlated Single Photon Counting (TCSPC), spectroscopy, eye safe LIDAR, optical communications, and quantum cryptography. The SPD_A_NIR is available for 1- or 2-channels. One of the advantage of the dual single photon counting module SPD_A_M2 from AUREA Technology is that the two independent single photon detectors are included in the same case and most importantly are paired during the manufacturing. As matter of fact, the twins detectors have similar Dark Count Rate and Quantum Efficiency. |
Features
| Applications
| Datasheet
|

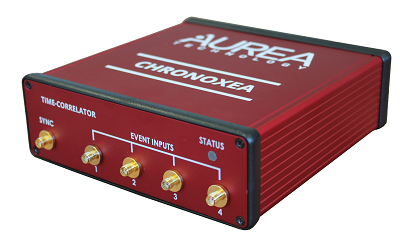

 | AUREA Technology unveils the CHRONOXEA its Time Correlation Module that makes acquiring time-resolved data in an efficient, easy-to-use, and affordable solution. The CHRONOXEA features 1 start channel and 4 independent stop channels to perform time correlated measurements with a high resolution of 13 ps on measurement range up to 7 seconds. Based on FPGA fast electronics, the CHRONOXEA TCSPC correlation module features a high transer rate up to 1 x 106 correlations/sec. In addition, it offers a PC connection via its USB interfaces. Its ergonomic Graphical User Interface allows the user to manage the settings and display the measured data. DLL libraries compatible to the most well-known programming languages, such as LabVIEW and C++ are also provided. Very well-designed, it is fully compatible with all commercial single photon avalanche photodiode detectors | |
 |
Time-Resolved Single Photon Counter
 | The LynXea_VIS from AUREA Technology is a stand-alone [400-1060 nm] Time Correlated Single Photon Counting TCSPC module, which fully integrates the Time to Digital Converter and the best single photon avalanche detection (SPAD) counting technologies within the same box. As a matter of fact, TCSPC measurements are now available without assembling multiple boxes! AUREA Technology provides the LynXea a new generation of all-in-one, high-performance and easy-to-use Time Correlated Single Photon Counting (TCSPC) instruments. The LynXea is ultra-low-noise and high quantum efficiency single photon TCSPC module with timing resolution down to 65 ps. The TCSPC module from AUREA Technology is proposed in two versions, the LynXea_VIS_M1 with 1 channel and the LynXea_VIS_M2 with 2 independent channels. Very well-designed, the compactness, the outstanding-performances and the modern interfaces make the LYNXEA | |
 |
[900 nm - 1700 nm] - NIR Time Resolved Single Photon Counter
| The LynXea_NIR from AUREA Technology is a stand-alone [900 - 1 700 nm] Time Correlated Single Photon Counting TCSPC module, which fully integrates the Time to Digital Converter with the best single photon counting technologies within the same box. AUREA Technology provides the LynXea a new generation of “all-in-one” and easy-to-use Time Correlated Single Photon Counting (TCSPC) modules. The LynXea series are ultra-low-noise and high Photon-Detection-Efficiency TCSPC modules with timing resolution in the picosecond range. The TCSPC module from AUREA Technology is proposed in two versions, the M1 version with 1-channel and the M2 version with 2 independent channels. Very well-designed, the compactness, the outstanding-performances and the modern interfaces make the LYNXEA | |
|
AUREA Technolog received the 2015 CLEO Laser Focus World Innovation Award. | The PICOXEA from AUREA Technology is the first "all in one, very-compact, and easy-to-use" Time Correlated Single Photon Counting TCSPC ANALYSER, which contains pulsed laser, gated-mode Single Photon Counting and its associated TDC correlation electronics and software for standard fluorescence decay recording. Engineered with innovative mindset, the stand-alone PICOXEA TCSPC ANALYSER fully integrates within the same box; the world’s most advanced Geiger-mode avalanche photodiode (Geiger-SPAD), picosecond pulsed laser source and Time to Digital Converter (TDC) technologies. Moreover, it includes the fast data processing, USB interface, and also the most intuitive Graphical User Interfaces compatible with LabVIEW and also the most commonly used programming languages.This newly designed PICOXEA TCSPC ANALYSER allows any very-low-level of light down to the single photon level required for fast event fluorescence (FLIM, FCS...), photoluminescence or Photon Source Time-Resolved measurements. Optical fiber coupled, the PICOXEA TCSPC ANALYSER is compatible with any commercial confocal microscopes, two-photon excitation microscopes and multiphoton tomography systems. |
Features
| Applications
| Datasheet
|
Single Photon detection module
The SPD_OEM_NIR is a high-performance and compact near-infrared Single Photon detection module designed for industrial and scientific applications that require high photon detection efficiency, reliability, and high-level of integration. It is based on cooled Geiger-mode InGaAs avalanche photodiode technologies controlled by its free-running and gated-mode embedded electronics and user-friendly software. Its "champion-grade" version performs up to 30% QE, Dark Count Rate noise < 1,000 cps, after-pulsing probability < 0.1%, and low timing jitter < 200 ps. Its remote interface allows to easily adjust the QE and the Dead Time by using the DLL libraries compatible to the most well-known programming languages.
Very well engineered the SPD_OEM_NIR is today the most valuable NIR single photon detection module for both asynchronous and synchronous low-level-of-light detection applications in the industry.

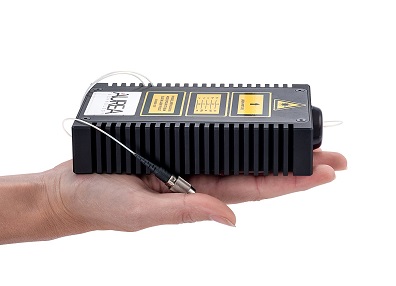

Picosecond diode laser module
The PIXEA_OEM is a high-performance picosecond laser based on gain-switched laser diode technologies controlled by its embedded electronics and software. The PIXEA_OEM offers a large variety of wavelengths from 375 nm to 1990 nm. Designed for the most demanding industrial applications, the PIXEA generates ultrashort laser pulses down to 20 ps with extremely-low timing jitter down to 3 ps, and excellent beam quality. Its embedded electronics is able to continuously tune the repetition rate from single shot to 120 MHz, the pulse width from <40 ps to 5 ns and the peak power up to 1W. It can be easily triggered by an external source and remotely controlled by a PC via its USB port. Its remote interface allows to easily adjust the laser pulse shape (rate, width and power) by using the DLL libraries compatible to the most well-known programming languages. Dual-mode (CW & pulsed) and different optical output options are also available.
Very well engineered the PIXEA_OEM is the most versatile picosecond laser diode module designed for industrial applications that require high-performance, flexibity, reliability, and low cost of ownership.
