公司简介
加拿大Attodyne公司是专业制造工业级和科研级高功率皮秒激光器的知名厂家，其代表产品有APL-X系列，APL-4000系列，APLQ系列和PIRL-HP系列皮秒激光器。该公司的产品集成度高，Turn-key操作，可风冷工作，可靠性高。可多波长输出，满足不同领域，不同材料加工的需求，使应用更广泛。
产品列表

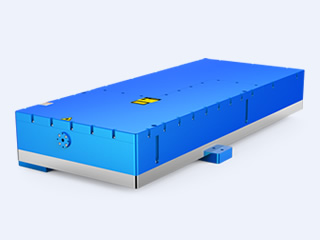

Picosecond UV DPSS Lasers（355nm)
Low-Power Picosecond UV(IR) DPSS Lasers • <10 picosecond pulses • Long term power stability <3%rms• High beam quality with M2≤1.3 • Serial Interface |  |
| Parameters | Olive-355-0.7 | Olive-1064-2 |
| Average Power | >0.7@100KHz | >2W@500KHz |
| Wavelength | 355nm | 1064nm |
| Pulse Width | <10ps | <10ps |
| Pulse Repetition Rate | 50kHz-1000kHz | 50kHz-1000kHz |
| Spatial Mode | M2≤1.3 | M2≤1.3 |
| Working Material | Nd:YVO4 | Nd:YVO4 |
| Beam-pointing | <25μrad | <25μrad |
| Beam Roundness | ≥85% | ≥90% |
| Beam Diameter | ≤1.0mm | ≤1.5mm |
| Beam Divergence | ≤2mrad | ≤2mrad |
| Pulse Stability | ≤2%rms | ≤2%rms |
| Long-Term Stability | ≤3%rms | ≤3%rms |
| Ambient Temperature | 18-35℃ | 18-35℃ |
| Cooling | Water | Water |
| Polarization Ratio | Vertical, >1000:1 | Vertical, >1000:1 |
| Power Consumption | 700W | 700W |
| Classification | Class 4 | Class 4 |

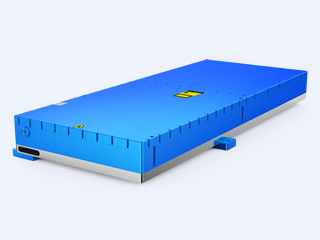

Picosecond IR DPSS Lasers（1064nm)
Low-Power Picosecond IR(UV) DPSS Lasers • <10 picosecond pulses • Long term power stability <3%rms• High beam quality with M2≤1.3 • Serial Interface |  |
| Parameters | Olive-355-0.7 | Olive-1064-2 |
| Average Power | >0.7@100KHz | >2W@500KHz |
| Wavelength | 355nm | 1064nm |
| Pulse Width | <10ps | <10ps |
| Pulse Repetition Rate | 50kHz-1000kHz | 50kHz-1000kHz |
| Spatial Mode | M2≤1.3 | M2≤1.3 |
| Working Material | Nd:YVO4 | Nd:YVO4 |
| Beam-pointing | <25μrad | <25μrad |
| Beam Roundness | ≥85% | ≥90% |
| Beam Diameter | ≤1.0mm | ≤1.5mm |
| Beam Divergence | ≤2mrad | ≤2mrad |
| Pulse Stability | ≤2%rms | ≤2%rms |
| Long-Term Stability | ≤3%rms | ≤3%rms |
| Ambient Temperature | 18-35℃ | 18-35℃ |
| Cooling | Water | Water |
| Polarization Ratio | Vertical, >1000:1 | Vertical, >1000:1 |
| Power Consumption | 700W | 700W |
| Classification | Class 4 | Class 4 |

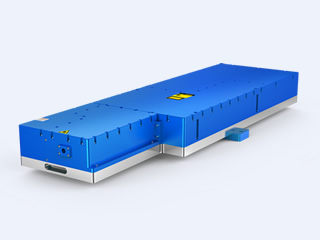

Mid-Power Picosecond IR DPSS Lasers (Olive-1064-10)
Mid-Power Picosecond IR DPSS Lasers • <10 picosecond pulses • Long term power stability <3%rms • High beam quality with M2≤1.3 • Serial Interface |  |
| Parameters | Olive-1064-10 |
| Average Power | >10W@500KHz |
| Wavelength | 1064nm |
| Pulse Width | <10ps |
| Pulse Repetition Rate | 50kHz-1000kHz |
| Spatial Mode | M2≤1.3 |
| Working Material | Nd:YVO4 |
| Beam-pointing | <25μrad |
| Beam Roundness | ≥90% |
| Beam Diameter | ≤1.5mm |
| Beam Divergence | ≤2mrad |
| Pulse Stability | ≤2%rms |
| Long-Term Stability | ≤3%rms |
| Ambient Temperature | 18-35℃ |
| Cooling | Water |
| Polarization Ratio | Vertical, >1000:1 |
| Power Consumption | 1000W |
| Classification | Class 4 |

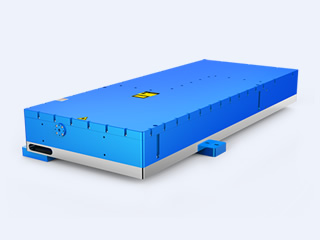

High-Power Picosecond IR DPSS Lasers (Olive-1064-50)
High-Power Picosecond IR DPSS Lasers • <10 picosecond pulses • Long term power stability <3%rms • High beam quality with M2≤1.3 • Serial Interface |  |
| Parameters | Olive-1064-50 |
| Average Power | >50W@500KHz |
| Wavelength | 1064nm |
| Pulse Width | <10ps |
| Pulse Repetition Rate | 50kHz-1000kHz |
| Spatial Mode | M2≤1.3 |
| Working Material | Nd:YVO4 |
| Beam-pointing | <25μrad |
| Beam Roundness | ≥90% |
| Beam Diameter | ≤1.5mm |
| Beam Divergence | ≤2mrad |
| Pulse Stability | ≤2%rms |
| Long-Term Stability | ≤3%rms |
| Ambient Temperature | 18-35℃ |
| Cooling | Water |
| Polarization Ratio | Vertical, >1000:1 |
| Power Consumption | 1000W |
| Classification | Class 4 |
应用领域
|
Gorilla Glass Dicing and Cutting
For machining of hard transparent materials, picosecond lasers offer many advantages over other tools due to the non-thermal ablation process. Chemically strengthened glasses such as cannot be succesfully machined with typical mechanical or laser cutting tools. Using industrial picosecond lasers… |
Bio-compatible Plastic for Medical Implants Processing
Soft and thermally sensitive materials are perfect for picosecond laser micromachining. Picosecond lasers offer advantages over other tools due to the non-thermal ablation process. Devices made from bio-absorbable and drug delivering plastics are gaining wide-spread use in medicine. Ma terials such… |
Machining transparent fragile materials is one of the main interests for picosecond laser systems. Nonlinear absorption at high peak powers of picosecond pulses along with none-thermal ablation characteristic of ultra-short pulses can produce crack-free clean cut lines on such materials.… |
The demand for faster compact electronics devices pushes the printed circuit boards (PCB) toward multilayered smaller sizes, which makes it more complicated to singulate the boards after fabrication. Picosecond laser systems can be used for singulating PCBs with minimal heat… |
Steel: Medical Devices and Miniature Parts
microgear fabricated from a standard 25um sheet of stainless steel. 100 um inner diameter. (right) SEM image of section of stainless steel tube by picosecond laser. Numerous applications exist in which stainless steel and other tough alloys must be… |
Rapid Prototyping of Microfluidics
Microscopic features in glass, sapphire and other transparent materials are easily achieved with picosecond micromachining. Material removal rates in glass can be as vary from ~0.1 to >1 mm^ 3/min*W for optimized processes. The microfluidic mixer structure seen here is milled… |
