Tydex公司成立于1994年，位于有俄罗斯光学心脏之称的圣彼得堡市，技术团队由俄罗斯科学院Loffe物理技术研究所科学家组建。Tydex专注于生产、定制应用于科研及工业的各类光学元件及仪器，囊括了光谱仪、太赫兹波光子、测温、计量和热成像仪器，以及太赫兹组件、传感器、探测器等。应用波长从深紫外到可见光、近红外、中红外，直至毫米波。

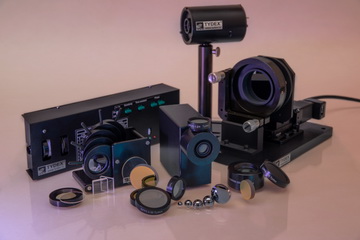

THz探测器
Tydex公司设计生产的THz探测器Golay Cell是最有效的探测器之一 。该产品在室温下具有优异的灵敏度，并具有宽波长范围内的平坦光学响应。GC系列探测器在室内制造并且独立校准。该产品包括一个探头和一个电源。滤波器支架可选。
分别以HDPE（高密度聚乙烯）、TPX（聚4-甲基戊烯）和Diamond为窗口材料，对应不同的探测波长范围，信号可由BNC接口输出到示波器上读出。
1. Golay Cell GC-1P(Golay Detector with HDPE Window)
Download Golay Cells Datasheet (PDF, 188 KB) |
Golay Cell在在室温下非常宽的带宽下都有优良的灵敏度和平坦的光谱响应，出厂即代表经过单独校准过。包含一个探测头和电源，也可提供增加滤波片。提供的多种HRFZ-Si和TPX材料做成的THZ光学元件如低通滤波片、聚乙烯偏振片、窗口镜、透镜以及分光片来满足不同的THZ应用。也提供软硬件组件将Golay Cell产生的模拟信号转变成数字信号，该组件具备一个特殊的软件和一个电路单元，并可通过USB线和个人电脑相连。可用于检测，处理和分析光声信号。

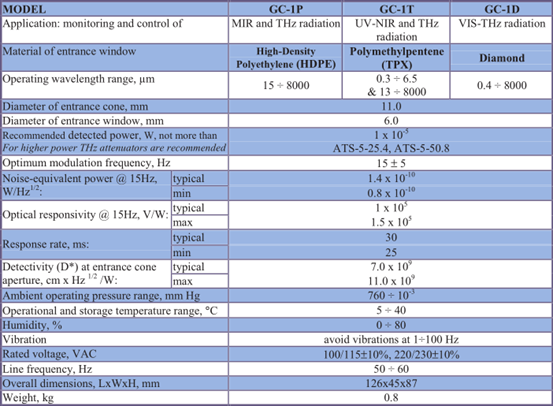

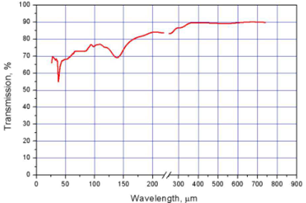

Technical specification:
Diameter of entrance cone, mm: | 11.0 |
Diameter of entrance window, mm: | 6.0 |
Material of entrance window: | High-Density Polyethylene (HDPE) |
Optimal operating wavelength range, μm: | 15 ÷ 8000 |
Recommended detected power, W, up to: | 1 x 10-5 |
Optimum modulation frequency, Hz: | 15 ± 5 |
Noise-equivalent power @ 20Hz: |
|

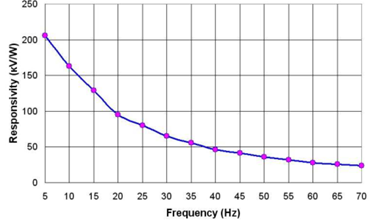

Optical responsivity @ 20Hz: |
|
Response rate: |
|
Detectivity (D*) at entrance cone aperture: |
|
Ambient operating pressure range, mm Hg | 760 ÷ 10-3 |
Operational and storage temperature range, °C | 5 ÷ 40 |
Humidity, % | 45 ÷ 80 |
Vibration | avoid vibrations at 1 ÷ 100 Hz |
Rated voltage, VAC | 100/115 ± 10%, |
Line frequency, Hz | 50 ÷ 60 |
Overall dimensions, L x W x H, mm3 | 126 x 45 x 87 |
Weight, kg | 0.8 |
2. Golay Cell GC-1T(Golay Detector with TPX Window)
Download Golay Cell Datasheet (PDF, 188 KB)
Technical specification:
Diameter of entrance cone, mm: | 11.0 |
Diameter of entrance window, mm: | 6.0 |
Material of entrance window: | Polymethylpentene (TPX) |
Operating wavelength range, μm: | 0.3 ÷ 6.5 & 13 ÷ 8000 |
Recommended detected power, W, up to: | 1 x 10-5 |
Optimum modulation frequency, Hz: | 15 ± 5 |
Noise-equivalent power @ 20Hz: |
|
Optical responsivity @ 20Hz: |
|
Response rate: |
|
Detectivity (D*) at entrance cone aperture: |
|
Ambient operating pressure range, mm Hg | 760 ÷ 10-3 |
Operational and storage temperature range, °C | 5 ÷ 40 |
Humidity, % | no special requirements |
Vibration | avoid vibrations at 1 ÷ 100 Hz |
Rated voltage, VAC | 100/115 ± 10%, |
Line frequency, Hz | 50 ÷ 60 |
Overall dimensions, L x W x H, mm3 | 126 x 45 x 87 |
Weight, kg | 0.8 |
将聚乙烯窗口镜换成TPX材料，GC-1T探测器的工作波段变得更宽，更达到可见甚至是紫外波段。该型号可看作钻石窗口的替代品。TPX材料在THZ波段的透过率比钻石材料更高，而且价格更低，只比GC-1P贵些。它包含一个探测头和电源，也可提供滤波片选项。各种HRFZ-Si和TPX材料做成的THZ光学元件如低通滤波片，聚乙烯偏振片、窗口镜、透镜以及分光片可以满足不同的THZ应用。提供软硬件组件来把Golay Cell产生的模拟信号转变成数字信号。该组件包含一个特殊的软件和一个电路单元，并可通过USB线和个人电脑相连。可用于检测，处理和分析光声信号。
3. Golay Cell GC-1D(Golay Detector with Diamond Window)
Download Golay Cell Datasheet (PDF, 188 KB)
Golay探测器出厂时即已单独校准过，包含一个探测头和电源，也可提供滤波片的选项。由于聚乙烯窗口镜换成了钻石材料，GC-1D探测器的工作波长范围更宽，可达到可见光波段。如果除了可见光和THZ波段，也要求MIR波段的时候，就需要采用这种窗口镜。当然，GC-1D型号的探测器的价格会比GC-1T略贵。各种HRFZ-Si和TPX材料做成的THZ光学元件如低通滤波片，聚乙烯偏振片，窗口镜，透镜以及分光片可以满足不同的THZ应用。也提供软硬件组件来把Golay Cell产生的模拟信号转变成数字信号。该组件包含一个特殊的软件和一个电路单元，并可通过USB线和个人电脑相连。可用于检测，处理和分析光声信号。
Diameter of entrance cone, mm: | 11.0 |
Diameter of entrance window, mm: | 6.0 |
Material of entrance window: | Diamond |
Operating wavelength range, μm: | 0.4 ÷ 8000 |
Recommended detected power, W, up to: | 1 x 10-5 |
Optimum modulation frequency, Hz: | 15 ± 5 |
Noise-equivalent power @ 20Hz: |
|
Optical responsivity @ 20Hz: |
|
Response rate: |
|
Detectivity (D*) at entrance cone aperture: |
|
Ambient operating pressure range, mm Hg | 760 ÷ 10-3 |
Operational and storage temperature range, °C | 5 ÷ 40 |
Humidity, % | no special requirements |
Vibration | avoid vibrations at 1 ÷ 100 Hz |
Rated voltage, VAC | 100/115 ± 10%, |
Line frequency, Hz | 50 ÷ 60 |
Overall dimensions, L x W x H, mm3 | 126 x 45 x 87 |
Weight, kg | 0.8 |
4. Hardware-software Complex盒
通过Complex盒，可将Golay Cell与私人电脑直接连接起来，从而可省去示波器、光谱仪等昂贵的信号探测、处理仪器；
探头前端还可选配厂家推荐的滤波片。
