公司简介

美国Innovative Photonic Solutions公司成立于2003年,基于其专有的光谱切片技术,专门提供高性能半导体二极管光源系统,主要提供638、785、808、830、976、1064和1546nm单频半导体激光器;532、785、808、830、976、1064和1546nm多模波长稳定激光器;405单模拉曼激光器;532、638、785、808、830、976和1064nm单模波长稳定的激光器。同时,IPS公司能够提供不同的封装形式,具体可根据需要选择。此类激光器主要应用于高性能拉曼激光光源、拉曼探针、单频激光种子源、光纤激光器泵浦、二极管倍频源、高功率模块、以及气体传感、太赫兹源等系统中。


产品列表

Products by Wavelength

      Single Mode 405nm

Product IDFWHM Spectral WidthOuput Power (mW)Output Configuration or ConnectorIntegral Laser Line FilterIntegral PhotodiodePackaging ConfigurationData Sheet

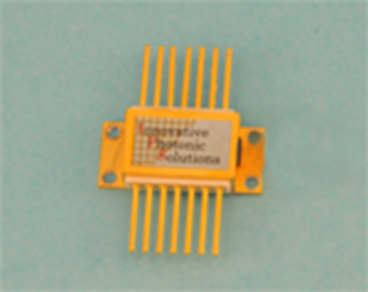

I0405SB0045B<100 kHz45Open BeamYesYesSingle-Mode Wavelength Stabilized Open Bean 14-pin SF14 Pin Data sheet.pdf
I0405SD0030B-IS<100MHz, <0.2 pm, <0.005 cm-130 with integral dual-stage isolatorOpen BeamYes - Dual Filter PackLinear Tracking PhotodiodeSingle-Mode D-type OEM ModuleD-type Data Sheet.pdf
I0405SD0045B<100MHz, <0.2 pm, <0.005 cm-145Open BeamYes - Dual Filter PackLinear Tracking PhotodiodeSingle-Mode D-type OEM ModuleD-type Data Sheet.pdf
I0405SR0030B-IS<100MHz, <0.2 pm, <0.005 cm-130 with integral dual-stage isolatorOpen BeamYesYesR-Type Single-Mode Turn-Key Laser R-type Module.pdf
I0405SR0045B45
I0405SH0030B-IS-TH-L<100MHz, <0.2 pm, <0.005 cm-130 with integral dual-stage isolatorOpen BeamYes - Dual Filter PackYesSingle-Frequency Tethered Head H-Type & L-TypeTethered Head H-type Data Sheet.pdf
I0405SH0045B-TH-L45

其余波长请点击:(532nm、633 nm638 nm647 nm660 nm785 nm808 nm830 nm976 nm1053 nm1064 nm1064.x nm)

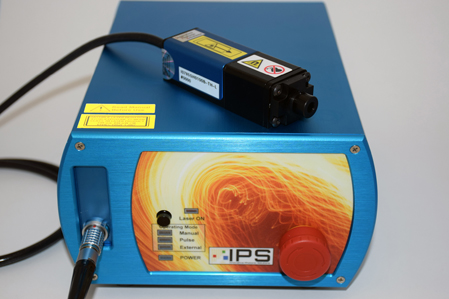

Single Frequency Master Oscillator Power Amplifier (MOPA)



Features

  • 760 nm, 780 nm785 nm, 808 nm, and 830 nm Wavelengths Available.

  • >500 mW of open beam output power (>1 W available upon request)

  • >300 mW of PM fiber coupled output power

  • Single frequency output (spectral linewidth < 100MHz CW, < 100 kHz Instantaneous)

  • UL/CE and IEC Certified

  • RoHS Compliant

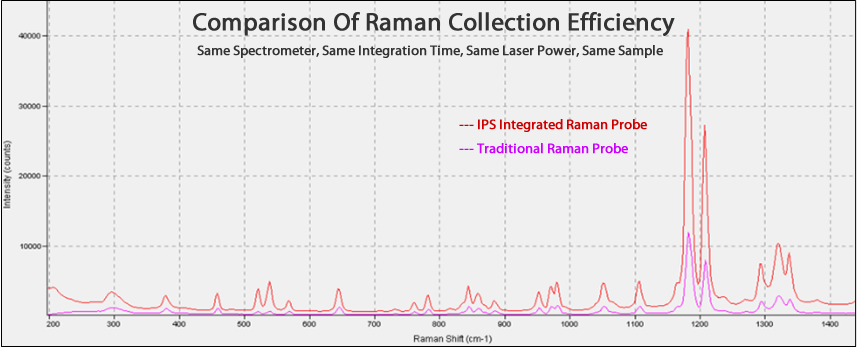

Integrated Raman Probe



Features

  • 785 nm Wavelength Stabilized Excitation Source.

  • High Throughput Optical Design with 100cm-1 Cut-on.

  • User Friendly Ergonomic Design.

  • Distance Regulator for Easy Sampling.

  • External Control Box for Power Adjustment and Compliance with CE, UL, and CDRH.


应用领域:

Raman Spectroscopy

Fiber Laser Seeds and Pumps

Remote Sensing
