公司简介
OPTIPHASE公司致力于提供低成本高性能全光纤传感器解决方案，基于白光干涉仪为技术基础，产品包括光纤相位解调仪；全光纤相位调制器，光纤拉伸器，OCT自相关仪，光纤迈克逊干涉仪，光纤M-Z干涉仪，光纤位移传感器，光纤速度反射计等。
产品列表
» INSTRUMENTS
OPD-4000 Optical Phase Demodulator
World’s leading instrument for measuring interferometric phase change. Features high resolution, large dynamic ran ge, adjustable modulation frequency, high pass filter with digital and analog output, selectable data averaging, servos and PhaseView software control. Single channel and multi-channel configurations available… more
TDI-7000 TDM Fiber Interrogator
The TDI-7000 is an advanced interferometric Time Domain Multiplexed fiber sensor interrogation product that delivers breakthrough sensitivity and price/performance. This transformational ability produces truly distributed interrogation that has significant advantages over point sensor arrays when used for large area distributed coverage… more
» FIBER STRETCHERS

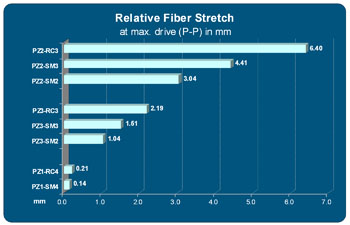

OPTIPHASE offers the most extensive line of fiber stretchers available in today’s market. It begins with a family of 3 stretcher platforms designed to span a fiber stretch range from 0.14 mm to 6.40 mm (standardized to single mode fiber, applying maximum voltage drive).
These piezo-electric fiber stretchers offer enhanced modulation while maintaining a high operational frequency for a wide range of interferometric measurements and sensing systems.
Our fiber stretchers are designed to operate with a bipolar voltage drive and are unique in that they do not require proprietary drivers. For most low voltage applications (< ± 15V) our stretchers can be driven by standard electronics such as signal generators, op-amps or other laboratory equipment without modification.
Each stretcher platform, (PZ1, PZ2, PZ3) supports a range of operational wavelengths from 600 nm to 1625 nm with an extensive variety of fiber choices including Single Mode (SM) fiber, Polarization Maintaining (PM) fiber in both Panda and Bowtie types, as well as Reduced Cladding (RC) SM fiber for the most extensive stretch value. Fiber termination choices include bare leads, FC/PC or FC/APC connections for all fiber types.
PZ1 High-speed Fiber Stretcher
The PZ1’s compact form factor makes an ideal fit for small spaces.… more
PZ2 High-efficiency Fiber Stretcher
The PZ2 provides the most extensive stretch of our stretcher product family and is ideal for use in white-light scanning interferometers and sensing systems for OCT/OCDR applications.… more
PZ3 Mid-range Fiber Stretcher
The PZ3 is the mid-range member of our family of fiber stretchers with drive characteristics similar to the PZ2.… more
»OTHER ASSEMBLIES
PDR Polarization Diversity Receiver
Used with the OPD-4000 Optical Phase Demodulator, replaces photodiode receiver to eliminate polarization fading in fiber optic interferometers without significant degradation in the signal-to-noise ratio. The compact and cost effective design is PCB mountable ... more
MFI Michelson Fiber Interferometer
Michelson and Mach-Zehnder interferometers are available in wavelengths from 1064 to 1550 nm. Each interferometer has a “zero meter” path mismatch which provides flexibility to change the delay length to match varying applications. more
