公司简介
mirSense是一家法国公司成立于2015年,致力于高性能化学分析提供商用的和紧凑的解决方案。mirSense公司与III-V lab有15年的研发合作经验, 与Alcatel公司, Thales公司及CEA-Léti公司有共同的实验室,运用纳米技术及光子学,mirSense强大的微小型化技术为其提供唯一的解决方案,因此mirSense具有强大技术以及大量专利等支持。其核心竞争力在于设计、制作、精密集成以及组装中远红外量子级联光器件和子系统,应用于单一气体检测和多种气体同时检测的工业场景。借助于这些高灵敏度的产品,客户可以开发高性能的痕量气体检测设备和系统。mirsense光谱激光探测是世界领先的化学分析中的应用和系统制造商提供先进的多激光技术。
产品列表
1.uniMir : Single Mode DFB QCL / Broadband Fabry Perot QCL
The uniMir product line offers single mode Quantum Cascade Lasers (single mode DFB QCL) or broadband lasers (Fabry Perrot) between 4µm – 10µm (2500 cm-1 – 1000 cm-1). uniMir lasers operate at room temperature, without a cryogenic system, in pulsed or continuous wave emission.

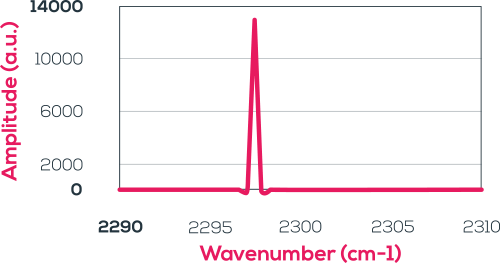

Single Mode DFB QCL
mirSense uses the well-known Distributed Feedback (DFB) effect to achieve single frequency sources. Furthermore, our products rely on our strong experience (since 2000) and a unique and patented approach. Our technology uses top metal grating to provide the feedback in the cavity. Top metal gratings allow versatility, reproducibility and stability in wavelengths.
Specifications*
Wavelength | 4 µm – 10 µm |
Mode | Pulsed (QCW) or Continous (CW) |
Operating Temp. Range | 0 – 40°C |
Package | Butterfly (BTF) or HHL |
Line Width | 0.001 cm-1 (CW)/ < 1.5 cm-1(QCW) |
*These are typical values and depend on the wavelength.
2.multiMir : Broadband DFB Quantum Cascade Lasers (QCL)
multiMir is a Broadband DFB Quantum Cascade Laser (QCL). It is the only full semiconductor solution for broadband tuning (~100cm–¹). It gives you unprecedented capabilities for high quality spectroscopy with the same performances as a single frequency laser in terms of wavelength accuracy, stability and compactness, but with a tuning range of several tenth of cm–¹.
multiMir combines mirSense laser technology together with the silicon based integrated optics capability.
With such a component, you can analyze your mixture in harsh conditions, with many interfering molecules, and identify specific molecules with broad signatures.
This is the only proprietary full semiconductor technology to provide a unique production scaling capability.
Specifications*
Wavelength | Contact us |
Tunable range | 40 cm-1 |
Operating Temp. range | 0 – 40°C |
Package | Butterfly (BTF) with Peltier regulation |
*These are typical values and depend on the wavelength.
3.multiSense : QCL based spectrometer module for gas analyzers
multiSense is a QCL based spectrometer module for gas analyzers manufacturers. It combines the unique properties of mid-infrared lasers together with the compactness and affordability of photoacoustic detection. In 1 dL, our offer can detect up to 10 gases, such as: CO, CO2, NO, NO2, NO, SO2, SO3, HS, NH3, CH4… as well as more complex molecules such as hydrocarbides or blood constituents.
mirSense has reached an unprecedented level of co-integration of quantum cascade lasers and photoacoustic detection in order to deliver such an innovative module. Working together with CEA-Léti, we also benefit from the best of the silicon industry to provide this cost effective approach.
Off-the-shelf components are available andmirSense is able to provide “design to cost” components for large volume (>100 000) applications when both performance and cost matter !
Specifications
Components measured | CH4/H2CO/H2O — Or– CO/CO2 More components coming soon |
Analysis principle | mid-IR (QCL) + PhotoAcoustic |
Size | 7cm (W) x 7cm (D) x 3cm (H) housing for easy OEM integration |
Detection limits | Gas dependent – Typically, from ppb to ppm level |
Sample Gas flow rate | < 40 ml/min |
Sample Gas conditions | Temperature: Less than 40°C |
4.powerMir : Bright solution for demanding applications
The powerMir is a high power Quantum Cascade Lasers family achieving very high output power and wall-plug efficiency. At room temperature, watt-level power in continuous wave operation is achieved in the wavelength range of 4.3 to 4.7 µm (other wavelength, e.g : 4.0µm / 9.0µm are available with custom design development) . The mode is typically TEM00 with Gaussian spatial distribution and high beam quality for easy handling.
The highest efficiency is obtained from buried-ridge devices with improved thermal characteristics. The buried heterostructure is formed by regrowth of semi insulating iron doped InP on the side wall after etching of the laser ridge. Excellent performances, including lower threshold current densities and high characteristic temperature, are obtained due to lower lateral waveguide losses and improved lateral heat dissipation.
powerMir is available in standard HHL package with collimating lens for low divergence and Peltier regulation.
The High Power Quantum Cascade lasers frommirSense line target the Defense and Security applications, e.g : Directional InfraRed Counter Measure (DIRCM), where high power, robustness and high beam quality are mandatory.
Specifications
Wavelength | ∼ 4.6 µm |
Mode | Continuous Wave (CW) |
Output Power | ≥ 1.6 W |
Operating Temp. range | 0 – 40°C |
Beam quality | M² < 1.3 / < 6 mRad divergence |
Package | HHL with Peltier Regulation |
