We have established our optics fabrication facility since year 2003. The facility has been certified ISO9001 and ISO14000 since year 2006. It has been expanded to 12000 square meters in 2010. Continuous investment on facility as well as production process and equipment has been made over the years. SPC and other tools are applied widely in factory quality and engineering management.
Training employee is high focus among our organization. From basic manufacturing skills to sophisticated capacity management system are provided in regular basis. We believe quality to customers is delivered from quality employee’s hand. Thus we put training high priority in each year’s agenda.
产品列表
Laser Optics
|
|
| ||
|
|
| ||
|
|
|
IR Optics
|
|
| ||
|
|
|
Illumination Vision
|
| |
|---|---|---|
|
|
|
Laser Accessory
|
|
| ||
|
|
|
Fiber Laser
Raycus Fiber Laser
Raycus Fiber Laser Technologies Co. Ltd. is the leading high power fiber laser manufacturer, with deep understanding of laser technologies and specialty fibers.
• High quality
• Excellent service
• Low operating costs
High power fiber laser products including 10W to 50W pulsed fiber lasers and 10W to 1000W continuous wave fiber lasers.
Pulsed Fiber Laser
Cooled:Wind
Polarization: Random
Central emission wavelength(nm):1064±1
Dimention W*D*H: 391*260*120
Working Voltage (DCV):24
Optical Isolator: Yes
Weight (kg): 9.5
| Part No. | Normal Average Output Power(W) | Beam Quality(M2) | Output Fiber Cable Length(m) | Power Consumption (20°C)(W) |
|---|---|---|---|---|
| FBLS-1064-5-P | 5 | <1.3 | 2.5 | 25 |
| FBLS-1064-10-P | 10 | <1.4 | 2.5 | 50 |
| FBLS-1064-15-P | 15 | <1.4 | 2.5 | 100 |
| FBLS-1064-20-P | 20 | <1.8 | 2.5 | 140 |
| FBLS-1064-25-P | 25 | <1.8 | 2.5 | 220 |
| FBLS-1064-30-P | 30 | <1.8 | 2.5 | 300 |
| FBLS-1064-50-P | 50 | <2 | 2.5 | 440 |
Continuous Wave Fiber Laser
Ploarization: Random
Working Voltage (DCV):220
Output Power Adjustment Range (%):5-100
| Part No. | Normal Average Output Power(W) | Beam Quality(M2) | Output Fiber Cable Length(m) | Power Consumption (20°C)(W) |
|---|---|---|---|---|
| FBLS-1064-5-CW | 5 | <1.1 | 2.5 | 25 |
| FBLS-1064-10-CW | 10 | <1.1 | 2.5 | 50 |
| FBLS-1064-20-CW | 20 | <1.1 | 2.5 | 95 |
| FBLS-1064-30-CW | 30 | <1.2 | 2.5 | 140 |
| FBLS-1064-50-CW | 50 | <1.2 | 2.5 | 200 |
| FBLS-1064-100-CW | 100 | <1.2 | 2.5 | 440 |
| FBLS-1064-200-CW | 200 | <1.2 | 2.5 | 800 |
| FBLS-1064-300-CW | 300 | <1.1 | 6 | 2000 |
OZ Optics
1) Fiber collimator / focuser
Receptacle Style Collimator HUCO-AX-W-F-f USD90-215
Receptacle Style Focuser: HPUFO-AX-W-F-M-WD-f USD 200-500
Pigtail Style Collimator: LPC-0A-W-a/b-F-BD-f-BL-X-JD-L USD 25-190
Pigtail Style Focuser: LPF-0A-W-a/b-F-M-WD-f-BL-X-JD-L USD 35-235
Refer PDF collimators_focusers
2) Variable optical attenuator
DA-100-X-W-a/b-F-LB(-OPT) USD 1800
Refer PDF DTS0007
BB-A-11-W-a/b-F-LB-XY-JD-L(-OPT) USD 100-250
Refer PDF DTS0061
3) Fiber coupler
FPD USD 50-175
PFPD USD 150-175
Refer PDF DTS0025
4) Fiber polarizer
FOP-A1-11-W-a/b-I-O-LB-XY-JD-L USD500
Refer PDF DTS0018
Fiber Laser Welding Head
FPW series of fiber laser welding heads are widely used to focus a collimated laser beam to perform welding operations.
Features:
Each water cooled fiber laser welding head consists of:
Multiple connector choices: QBH, D80, LLK-B, SMA905
Focal length of 100mm or at your choice
Water cooling for collimator and focal lens
Specifications for Water Cooled Fiber Laser Welding Head
Maximum Power | 1000W |
|---|---|
Fiber Connector | QBH, D80, LLK-B, SMA905 |
Wavelength | 1064nm |
Cooling Method | Water Cooled |
Maximum Input Beam NA | 0.22 |
Focal Lens Size | 40mm x 3mm |
Part No: | Focal Length (mm) | Lens Diameter (mm) | Wavelength (nm) |
|---|---|---|---|
FPW-100 | 100 | 40 | 1060-1070 |

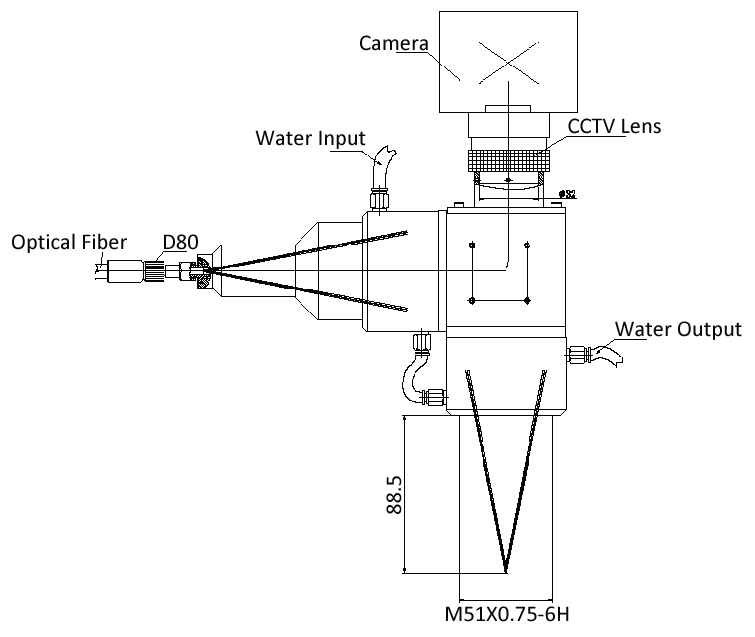

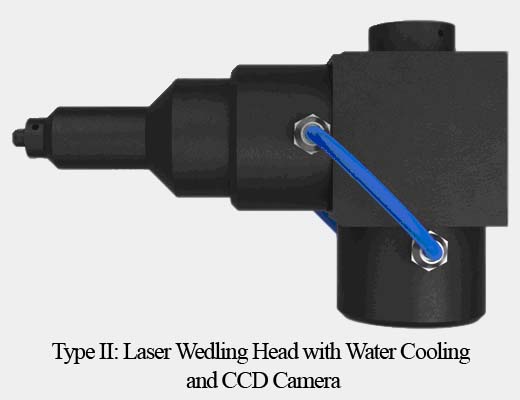

Coaxial Laser Welding Head
Equipped with CCD and CCTV lens, Coaxial Welding Head provides customer a real time monitor and inspection of the welding effects.
Part No: | Focal Length (mm) | Lens Diameter (mm) | Wavelength (nm) |
|---|---|---|---|
FPW-100-monitor | 100 | 40 | 1060-1070 |
