Venteon is a name with a reputation for high quality technical solutions in the field of ultra-short, few-cycle lasers and amplification systems.
In September 2014, Venteon Laser Technologies GmbH was purchased and became part of the Laser Quantum group. This has allowed wider access to the venteon products and support around the world, through the Laser Quantum distribution network.
Laser Quantum is committed to continuing the research into this innovative area of laser science and all the short pulse products will continue to be supported. All the product information is available on the Laser Quantum website through the main menu above.
产品列表

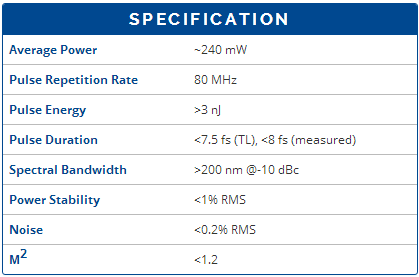

venteon one- Entry level general <8 fs laser
The venteon one laser system is a compact, low-priced and robust source for ultrashort pulses <7.5 fs (transform limited <8 fs (measured) on a compact footprint of only 260 mm x 600 mm. The monoblock design is optimised for low pump threshold and includes an integral pump laser.
DOWNLOADS

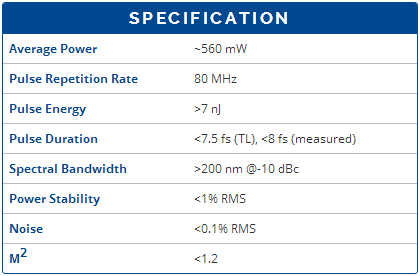

venteon power- Laser optimised for the highest power
The venteon power laser system integrates a state of the art DPSS pump laser on an advanced, monolithic breadboard and is designed, then optimised to offer the highest possible power output for the configuration. This system delivers >560 mW of sub-7.5 fs short laser pulses directly out of the box (7.5 nJ @ 80 MHz repetition rate).
DOWNLOADS

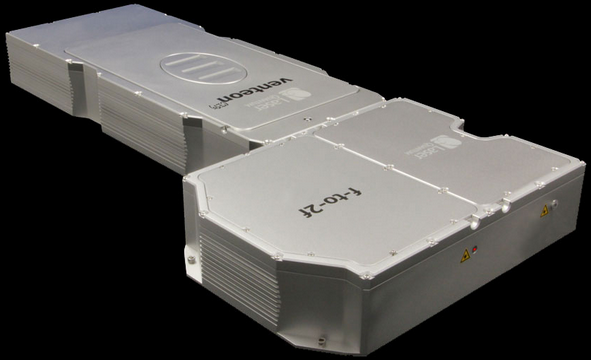

venteon CEP- Supplied with CEP locking f-to2f interferometer
The venteon CEP5 laser is a complete carrier-envelope-phase (CEP) stabilised laser system that utilises the exceptional spectral characteristics of the venteon ultra oscillator for a direct realisation of sub-two cycle CEP stable laser pulses with less than 50 as timing jitter. The CEP5 locking approach is the most natural way of locking the CEP by only filtering the spectral wings and is thus efficient and low-noise. Most importantly, it does not affect the properties of the ultrashort output beam by avoiding refractive elements as an AOFS in the beam path.
DOWNLOADS

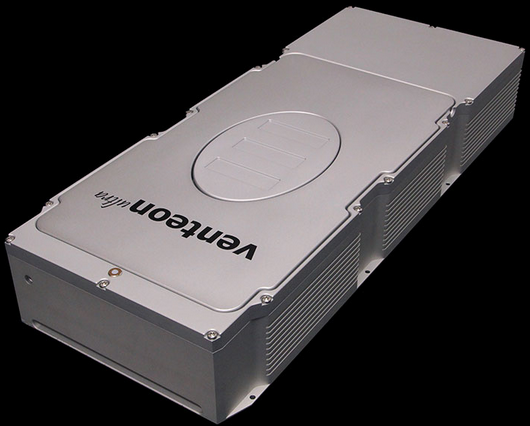

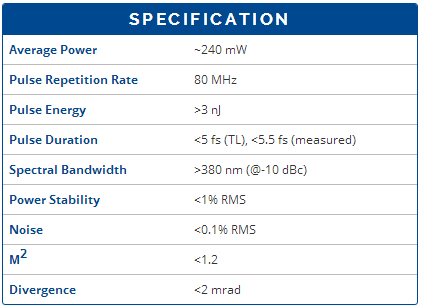

venteon ultra- ultrabroadband laser
The venteon ultra laser system provides unique spectral properties with an integrated state of the art DPSS pump laser on a novel designed, monolithic breadboard. It is designed and optimised to offer the shortest available pulse durations. It delivers >240 mW of sub-5.5 fs short laser pulses directly out of the box (>3 nJ @ 80 MHz repetition rate).
DOWNLOADS

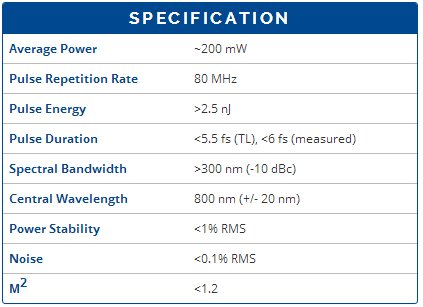

venteon dual- Ideal front-end for the few cycle OPCPA
The venteon dual laser system represents the ideal front-end for broadband few-cycle OPCPA applications. The spectral bandwidth of this laser allows for the generation of broadband sub-5.5 fs pulses as a signal for a subsequent NOPA stage and provides sufficient pulse energy (>30 pJ @ 1030 nm) for seeding an Yb-based amplifier pump stage. The pulses are provided by two separate output ports and are intrinsically self-synchronised with ultra-low timing jitter.
