QUBIG GmbH specializes in design and manufacturing of world-class electro-optic modulators (EOM) for scientific and industrial applications requiring optical sidebands on free space lasers. Large apertures, outstanding modulation efficiency and selected crystals make our EOMs the right choice even for high-power lasers from UV to IR wavelengths. Available in quick delivery standard models and challenging custom developments.

产品列表

1、

Electro-Optic Modulators

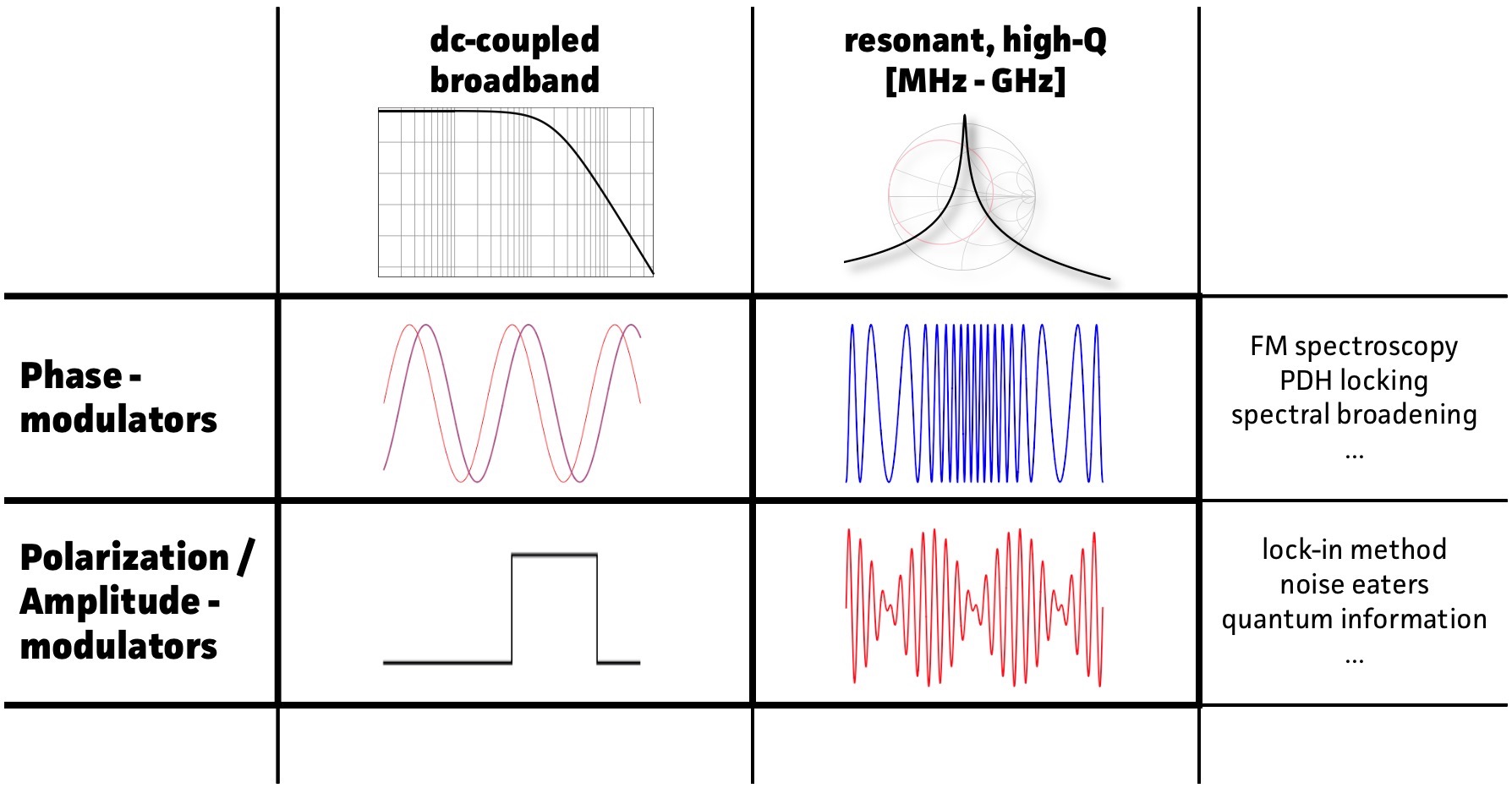

Electro-optic modulators (EOMs) are efficient and easy to use tools to modify the phase, frequency, polarization or amplitude of a free-space laser. In contrast to acousto-optic modulators the spatial mode of the laser beam remains unaltered. Therefore, EOMs are the ideal choice when several frequency components are required in a laser spectrum. For instance, in laser cooling repumper frequency generation, ion trapping and quantum optics, for spectral broadening to suppress stimulated Brillouin scattering (SBS) in high power fibers, and for heterodyne techniques, like FM Spectroscopy, Modulation Transfer Spectroscopy or Pound-Drever Hall (PDH) Laser Frequency Stabilization. The modulation spectrum of our electro-optic modulators ranges from DC-coupled phase shifters to high-Q, resonant EOMs in the kHz, MHz and GHz range. Large apertures and a range of selected crystals materials (AR-coated or Brewster-cut) permit the use of high power lasers at UV to IR wavelengths.

Key Features

• Modulation Frequencies: DC - 14.7 GHz (DC-coupled, Resonant, and Traveling-Wave Models)

• Wavelength Range: UV - MIR (190nm - 10.6 μm, with a selection of dedicated crystals)

• Large Apertures for easy Alignment and High Laser Power (Standard: 3x3mm, 5x5mm)

Product Matrix

Laser Spectroscopy & PDH Frequency Stabilization Optical Frequency Locking

Special Purpose Electro-Optic Modulators

Alkali Repumper Frequencies for Spectroscopy and Laser Cooling of neutral Atoms

	Lithium		Sodium	Potassium			Rubidium
Species Resonance frequency Tuning range AR coating	Li-6 228 MHz  ± 30 MHz  671 nm	Li-7 813 MHz  ± 60 MHz  671 nm	Na-23 1713 MHz  ± 100 MHz  589 nm	K-39 441 MHz  ± 40 MHz  766 nm	K-40 1285 MHz  ± 100 MHz  766 nm	K-41 241 MHz  ± 30 MHz  766 nm	Rb-85 2915 MHz  ± 100 MHz  780 nm
Sample datasheets	EO-Li6	EO-Li7	EO-Na23	EO-K39	EO-K40	EO-K41	EO-Rb85

Repumper Frequencies for Spectroscopy and Laser Cooling of Ions

	Beryllium	Magnesium	Calcium	Strontium	Ytterbium
Species Resonance frequency Tuning range AR coating	Be-9+ 1250 MHz  ± 100 MHz  313 nm	Mg-25+ 1789 MHz  ± 100 MHz  280 nm	Ca-43+ 1938 MHz  ± 100 MHz  397 nm	Sr-87+ 5.00 GHz  ± 100 MHz  422 nm	Yb-171+ 2105 MHz  ± 100 MHz  369 nm
Sample datasheets	EO-Be9+	EO-Mg25+	EO-Ca43+	EO-Sr87+	EO-Yb171+

2、

Advanced Driver Unit - ADU

The Advanced Driver Unit (ADU) is a user-friendly RF driver specifically designed for resonant EOMs. It combines a precision radio-frequency source (DDS) with optional power amplifier and several useful features needed for laser spectroscopy and frequency stabilization (PDH). It’s simple, push-button operation and automatic lock & track function, make it an ideal solution for users requiring a stand-alone, trouble-free EOM driver always operating on the EOMs optimal working point. Besides ensuring stable operation (amplitude & phase of the optical modulation) this potentially saves expensive analytical equipment, like an optical spectrum analyzer (e.g. scanning Fabry-Perot cavity). For more complex applications the ADU offers several input and output ports as well as PC control software (free) which can be embedded in experiment control sequences.

ADU - Dedicated Resonant EOM Driver (1 - 200 MHz)

• DDS based precision RF Synthesizer (resolution: 0.1Hz, stability: 100ppm (internal) or external reference)

• RF Power: 20dBm (resolution: 0.1dB), high power version ADU/HP with Pout: 30dBm, more on request

• Plug-in unit (3HU, 28TE) for 19” systems (req. 5/12VDC) or standalone bench-top version, fanless = silent

• provides clean 12V supply for fast, trans-impedence amplified photodetector (PD-AC100)




automatic resonance frequency locking & tracking (ditherless) internal heterodyne frequency mixing circuit (PDH), precision phase adjust (< mrad), high conversion, 3xf0 front-panel & remote PC controllable (USB), free software, digital in-/outputs, interlock, auto-recovery EMC shielded with ultra-low noise linear power supplies (optional, for mains voltage 110/220VAC)

Main Applications:

Frequency Modulation (FM) Spectroscopy, Modulation Transfer (MT) Spectroscopy Laser Frequency Stabilization, Optical Cavity locking, Pound-Drever Hall lock (PDH) Spectral Broadening Precision Optical Phase Control (e.g. for Dynamic Optical Lattices) Resonant Electro-Optic Amplitude Modulators

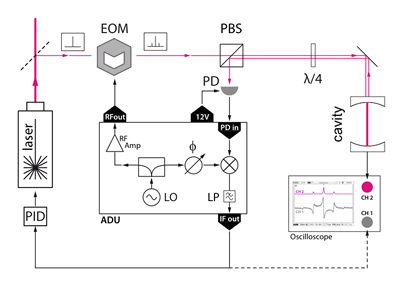

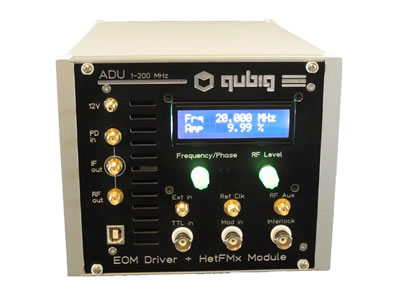

ADU - standalone version	typical application: Pound-Drever Hall lock

Extended Driver Unit - EDU

With the Extended Driver Unit (EDU) Series Qubig offers an economic and user-friendly solution for high power radio-frequency sources in the GHz-range as ideal drivers for high-frequency and GHz EOMs. It features a compact, modular design with a wideband, RF generator module along with a suitable RF power amplifier module. Both modules can be used independently and can packaged in a stand-alone benchtop version or up to 6 modules in a 19” rack system for mains voltage 110/220VAC with ultra-low noise linear power supplies.

EDU - High Frequency EOM Driver Module (0.1 - 4.4 GHz)

Wideband RF Generator, PLL based (resolution: 10 kHz, stability: 2.5ppm) RF Power: 19dBm (resolution: 0.5dB) - seed signal for AMP RF amplifier modules Plug-in unit (3HU, 14TE) for 19” systems (requires 5VDC), SMA connector compact, modular design full front-panel control (encoder & display), manual & digital (TTL) on/off intuitive operation with auto-save and auto-recovery

AMP - RF Amplifier Modules (0.01 - 3.2 GHz)

broadband (up to 0.9, 2.2, 2.8 GHz) and narrow-band (1.6-1.8, 2.0-2.2, 2.4-2.7, 2.9-3.2 GHz) versions RF Power: 2W, 5W or up to 10W (40 dBm) - designed for EDU seed signal Plug-in unit (3HU, 14TE) for 19” systems (requires 24VDC), SMA connectors compact, modular design highly efficient with passive heat-sink (fanless = silent) fully protected (unmatched load, over-temperature)

BOX - Standalone Benchtop Box or 19” Rack System

• full (84TE), half (42TE) or 1/3 (28TE) 19” rack or benchtop box for 2, 3 or 6 modules (EDU, AMP)

• matched ultra-low noise linear power supplies for mains voltage 110/220VAC

• EMC shielded, fanless = silent

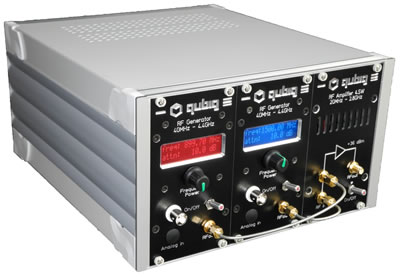

Example: High Frequency EOM Driver for a Double-Resonance EOM 2 EDU modules + 1 AMP module packaged in a BOX standalone benchtop version

3、

Fiber Modulators / Photline

Qubig GmbH is proud to announce a strategic partnership with Photline Technologies, France to mutually strengthen its portfolios by distributing each others products in France and Germany, respectively. This allows us to always offer the best solutions for each customers particular electtro-optic modulation application. Whereas Qubigʼs free-space resonant EOMs satisfy with ultra-low optical loss (<1%), high laser power handling (>10W cw) and wide wavelength ranges down to UV, the integrated fiber modulators by Photline technologies offer uncompromising bandwitdh (>10 GHz) and modulation efficiency in both phase/- and intensity modulator (Mach-Zehnder) configurations.

Fiber Modulators

Photline Technology electro-optic fiber modulators offer wide bandwidth (>10GHz), high efficiency (low halfwave voltage Vpi), excellent extinction ratios (Mach-Zehnder Modulators) and good optical power handling in the NIR - IR wavelength range.

	Phase Modulators	Intensity Modulators
780 – 850nm	NIR-MPX800-LN Series -0.1: 150 MHz, Vpi: 2V -05: 5 GHz, Vpi: 3V -10: 10 GHz, Vpi: 4V optical insertion loss: 3.5dB max. optical power: 25mW	NIR-MX800-LN Series -10: 10 GHz, optical IL: 3.5dB -20: 20 GHz, optical IL: 4.5dB Vpi: 3.5V max. optical power: 20mW

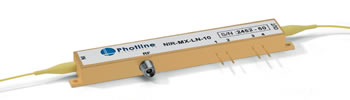

980 – 1150nm	NIR-MPX-LN Series -0.1: 150 MHz, Vpi: 2.5V -02: 2 GHz, Vpi: 3V -05: 5 GHz, Vpi: 4.5V -10: 10 GHz, Vpi: 5.5V optical insertion loss: 3 dB max. optical power: 100mW	NIR-MX-LN-10 10 GHz, Vpi: 4V optical insertion loss: 5 dB max. optical power: 100mW extinction ratio: 30dB
1290 – 1330nm		MX1300-LN-10 10 GHz, Vpi: 4.5V optical insertion loss: 3.5dB max. optical power: 100mW extinction ratio: 22dB
1530 – 1580nm	MPX-LN Series -0.1: 150 MHz, Vpi: 3.5V -05: 4 GHz, Vpi: 9V optical insertion loss: 3.5 dB max. optical power: 100mW MPZ-LN Series -10: 12 GHz, Vpi: 7V -20: 20 GHz, Vpi: 9V -40: 32 GHz, Vpi: 10V optical insertion loss: 2.5 dB max. optical power: 100mW	MX-LN Series -10: 12 GHz, IL: 2.7dB, Vpi: 4.7V -20: 20 GHz, IL: 2.7dB, Vpi: 6.5V -40: 30 GHz, IL: 4dB, Vpi: 6.5V max. optical power: 100mW extinction ratio: 22dB MXAN-LN Series (for analog signals) -10: 12 GHz, IL: 2.7dB, Vpi: 6.5V -20: 20 GHz, IL: 2.7dB, Vpi: 8V max. optical power: 100mW extinction ratio: 22dB
1900 – 2200nm	MPX2000-LN-0.1 150 MHz, Vpi: 4.5V optical insertion loss: 3 dB max. optical power: 100mW MPZ2000-LN-10 10 GHz, Vpi: 10.5V optical insertion loss: 3.5 dB max. optical power: 100mW	MX2000-LN Series -01: 2 GHz, Vpi: 5.5V -10: 10 GHz, Vpi: 9.5V  optical insertion loss: 4dB max. optical power: 100mW extinction ratio: 22dB

RF Amplifiers/Drivers

Wideband, linear RF amplifiers with low noise and flat group delay and gain curves. Optimized for analog modulation (phase/intensity) or pulse applications with low and high repetition rate. Single supply voltage with gain control.

	Analog	Pulses

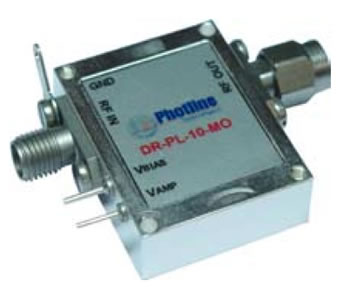

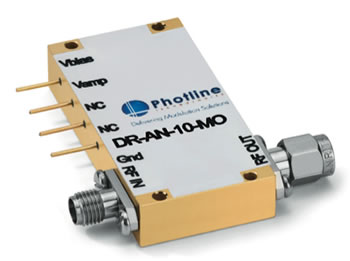

10 GHz	DR-AN-10 Series gain: 30dB supply: 12Vdc (1.2Vc) 350mA -MO: 9 Vpp -HO: 12.5 Vpp	DR-PL-10-MO Series gain: 20dB, 6.5Vpp, rise/fall: 25 ns supply: 12Vdc (0.4Vc), 370mA -LR: 10Hz - 100MHz (rep.rate) -HR: 50kHz - 1GHz (rep.rate)
20 GHz	DR-AN-20 Series gain: 30dB supply: 12Vdc (1.2Vc) 350mA -MO: 9 Vpp -HO: 12.5 Vpp	several dedicated telecom drivers

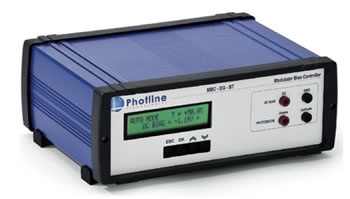

Modulator Bias Controllers

Modulator Bias Controllers (MBC) are required to stabilize the operating point of Mach-Zehnder Modulators (Intensity-Modulators). For critical applications and to achieve high extinction ratios (ER) the use of an external tap-coupler (e.g. OP-PD/TAP-800, -1000, 1550) and the MBC’s internal photodiode is recommended.

Ditherless	Continuously tunable

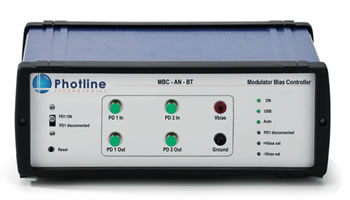

MBC-AN Series -12/+12V bias locking range: Quad Points internal photodiodes & tap couplers	MBC-DG Series -10/+10V bias locking range: 360 degree internal photodiode & tap coupler

ELECTRO-OPTIC MODULATORS –EOM

一、PM - RESONANT PHASE MODULATORS

PM- Bulk/Free-Space

UV（200-400nm）

PM6-UV   PM7-UV   PM8-UV   PM9-UV   PM10-UV    PM11-UV

VIS(360-650nm)

PM6-VIS   PM7-VIS   PM8-VIS   PM9-VIS   PM10-VIS   PM11-VIS   PM6-NIR

NIR(0.6-1.1μm)

PM7-NIR   PM8-NIR   PM9-NIR   PM10-NIR   PM11-NIR

SWIR(1.0-3.0μm)

PM6-SWIR   PM7-SWIR   PM8-SWIR   PM9-SWIR   PM10-SWIR    PM11-SWIR

MWIR(3.1-7.4μm)

PM6-MWIR   PM7-MWIR   PM8-MWIR   PM9-MWIR   PM10-MWIR  PM11-MWIR

LWIR(7.5-12μm)

PM6-LWIR    PM7-LWIR   PM8-LWIR    PM9-LWIR   PM10-LWIR   PM11-LWIR

PM.FC- Fiber coupled

Atom trapping &cooling (ATC)

PM.FC-Rb780_2.9     PM.FC-Rb780_3.0     PM.FC-Rb780_3.4     PM.FC-Rb780_6.6      PM.FC-Rb780_6.8

lon trapping & cooling (ITC)

PM.FC-Cs_4.6    PM.FC-Cs_9.2

Molecule trapping &cooling (MTC)

PM.FC-Yb_3.8    PM.FC-Yb_6.3

PM.SMD - Surface Mount Device

二、TW-BROADBAND PHASE MODULATORS

TWP-Bulk/Free-Space

TWP2                   TWP5                   TWP10                   TWP20

（up to 2GHz）   （up to 5GHz）    （up to 10GHz）   （up to 20GHz）

UVIS                                     TWP5-UVIS          TWP10-UVIS

VIS       TWP2-VIS               TWP5-VIS            TWP10-VIS          TWP20-VIS

NIR        TWP2-NIR             TWP5-NIR

SWIR    TWP2-SWIR

三、PS-DC-Coupled Phase Shifters

UV                 VIS                  NIR                SWIR               MWIR            LWIR

200-400nm  370-650nm       30-1100nm    1.0-3.0μm        3-7μm              7-12μm

PS-UV      PS-VIS                PS-NIR           PS-SWIR       PS- MWIR       PS-LWIR

PSA-UV    PSA-VIS             PSA-NIR         PSA-SWIR    PSA-MWIR      PSA-LWIR

四、AM - Resonant Amplitude Modulators

AM6                AM7          AM8

0.1-1MHz    2-30 MHz     31-160 MHz

AM6-UV     AM7-UV       AM8-UV      UV（200-400nm）

AM6-VIS     AM7-VIS      AM8-VIS     VIS（360-650nm）

AM6-NIR    AM7-NIR       AM8-NIR     NIR（0.6-1.1μm）

AM6-SWIR  AM7-SWIR     AM8-SWIR   SWIR（1.0-1.7μm）

五、PC -Pockels Cells
