公司简介

德国Amphos公司(取名自Amplifying Photonics,光子放大)是夫琅和费研究院和亚琛工业大学孵化的公司。Amphos致力于InnoSlab放大技术的超高功率超快激光器研发,服务于工业和科研市场!是当今世界功率最高的超快激光器制造商!


技术能力

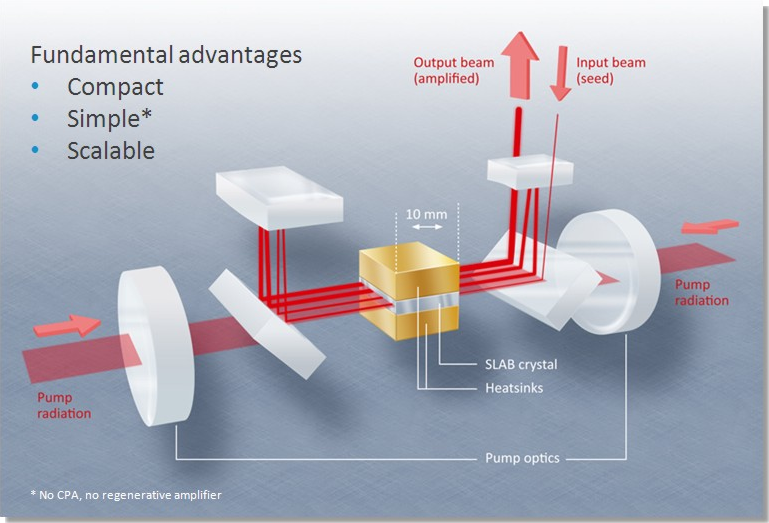

AMPHOS Lasersystems are based on InnoSlab Amplification Technology. InnoSlab amplifier systems are characterized by a very simple beam path. No CPA and no regenerative beam path is necessary to achieve large amplification with high efficiency.

The extremely compact setup - the distance between the folding mirrors is just 35mm - leads to a robust, quasi monolithic package.

Prinzip

Due to the line shaped amplification volume of the InnoSlab amplifier the pumping system is highly efficient. No symmetrization of the diode laser radiation is necessary.

The usage of Yb:YAG as active medium allows high average power due to the stable YAG crystal and low quantum defect as well as ultrashort pulses in the 500fs range due to the broad emission spectrum.

As the InnoSlab laser is a "crystal" laser, the time-bandwidth spectrum is diffraction limited.

Scalability of output power is also simple with InnoSlab lasers. By increasing the crystal width the output power can be increased keeping the high beam quality and without increasing the demand on brightness of diode lasers. This is unique for diode pumped solid state lasers.


产品列表

AMPHOS 10

The AMPHOS Ultra-Short-Pulse-Laser with  an output power of 10W

Compact system design - Wide range of paramters - Flexible pulse-bursts - Yb:YAG amplification technology


PARAMETER

  • Outputpower > 10W

  • Wavelength = 1030nm

  • Pulse duration < 1ps ... > 10 ps

  • Repition rate: 100kHz ... 40 MHz

  • Max. pulse energy > 100 µJ

  • Beam quality: M² < 1.3

FEATURES

  • Variable repetition rate by software

  • Pulse-On-Demand (PLL)

  • Integrated Isolator

  • Integrated AOM

  • Multi-pass amplification technology

OPTIONS

  • Fast mechanical shutter

  • Amplifier only version

  • Higher repetition rate (up to 80 MHz)

  • Frequency conversion to 515nm

APPLICATIONS

  • Micromachining

  • Thin film PV patterning

  • Laser scribing

  • Laser dicing

  • Silicon edge isolation

  • Microfluidic devices

  • SLE process

DIMENSIONS/INTERFACES:



  • Width:  40 cm

  • Height:  11,2 cm

  • Length:  58 cm

  • Control unit 19“, 3HE

  • TCP/IP interface

  • Cooling water


AMPHOS 100

The AMPHOS Ultra-Short-Pulse-Laser with  an output power of 100W

Compact laserhead - Pulse energy > 250 µJ - Flexible repetition rate up to 40 MHz - Yb:YAG amplification technology


PARAMETER
  • Outputpower > 100W

  • Wavelength = 1030nm

  • Pulse duration <1ps ... >10 ps

  • Repition rate: 400kHz ... 40 MHz

  • Max. pulse energy > 250 µJ

  • Beam quality: M² < 1.3

FEATURES

  • Integrated optical isolator

  • Integrated pulse picker / modulator

  • Flexible repetition rate by software

  • TCP/IP control

  • Pulse bursts

OPTIONS

  • Higher pulse energy

  • Frequency conversion

  • Higher repetition rate

  • Higher output power

  • Flexible pulse duration

  • Different control interfaces

  • ns-pulse version

APPLICATIONS

  • Micromachining

  • Thin film PV patterning

  • Laser scribing

  • Glass cutting

  • Laser dicing

  • Silicon edge isolation

  • Microfluidic devices

  • CFRP cutting

DIMENSIONS/INTERFACES:

  • Width:  60 cm

  • Height:  18.5 cm

  • Length:  60 cm

  • Control unit 19“, 6HE

  • TCP/IP interface

  • Fast external modulator

  • Cooling water

AMPHOS 200

The AMPHOS Ultra-Short-Pulse-Laser with  an output power of 200W

Compact laserhead - Pulse energy > 500 µJ - Flexible pulse parameters by software - Yb:YAG amplification technology


PARAMETER
  • Outputpower > 200 W

  • Wavelength = 1030 nm

  • Pulse duration < 1 ps ... > 10 ps

  • Repition rate: 400 kHz ... 40 MHz

  • Max. pulse energy > 500 µJ

  • Beam quality: M² < 1.5

FEATURES

  • Integrated optical isolator

  • Integrated EO modulater

  • Flexible pulse duration, flexible repetition rate by software

  • TCP/IP control

  • Pulse bursts

OPTIONS

  • Higher pulse energy

  • Frequency conversion

  • Higher repetition rate

  • Higher output power

  • Different control interfaces

  • ns-pulse duration version

APPLICATIONS

  • Micromachining

  • Thin film PV patterning

  • Laser scribing

  • Glass cutting

  • Laser dicing

  • Silicon edge isolation

  • Microfluidic devices

  • CFRP cutting

DIMENSIONS/INTERFACES:

  • Width:  60 cm

  • Height:  18.5 cm

  • Length:  60 cm

  • Control unit 19“, 6HE

  • TCP/IP interface

  • Fast external modulator

  • Cooling water


AMPHOS 400

The AMPHOS Ultra-Short-Pulse-Laser with  an output power of 400W

Pulse energy > 500 µJ - Flexible pulse parameters - Upgrade to >1.000W - Amplifier-only version


PARAMETER
  • Outputpower > 400W

  • Wavelength = 1030nm

  • Pulse duration < 1ps ... > 10ps

  • Repition rate: 800kHz ... 40MHz

  • Max. pulse energy > 500 µJ

  • Beam quality: M² < 1.5

FEATURES

  • High repetition rate EOM

  • Power setting unit

  • Flexible pulse duration and repetition rate by software

  • Integrated high power optical isolator

OPTIONS

  • Higher Pulse energy

  • Seedlaser: fs, ps, ns, cw

  • Additional amplifier to achieve 1000W output power

  • Frequency conversion

  • Amplifier-only version

APPLICATIONS

  • OPCPA

  • Micromachining

  • Thin film PV patterning

  • Laser scribing

  • Laser dicing

  • Silicon edge isolation

  • Microfluidic devices

  • SLE process

DIMENSIONS/INTERFACES:

  • Width:  72 cm

  • Height:  16,5 cm

  • Length:  111 cm

  • TCP/IP commands

  • Fast external modulator

  • Cooling water

应用领域

Applications of AMPHOS laser systems cover a very broad range from fundamental research up to industrial processes.

Scientific applications use the high average output power to reduce measurement time in metrology or high intensity that cannot be achieved with other systems.

Scientific applications:

  • cohernt EUV generation

  • OPCPA

  • attosecond physics

Industrial applications increase their throughput due to the high average power of AMPHOS laser systems. Many applications have been demonstrated using Watt-level fs-lasers. These applications are economical now:

  • Cutting of glass

  • CFRP machining

  • High-Pressure Turbines (HPT)

  • Polymer LPVD

  • removal of hard and brittle materials

  • EDM - Replacement

  • Photovoltaics
