公司简介

Global Leader In Electroformed Optics, Deep-Dish Optical Coatings, And Infrared Imaging Components


产品列表

Precision Electroformed Optics


Electroforming is a versatile manufacturing technique used to produce precision optical components.

Based on the principles of electrochemistry, electroforming is essentially a specialized form of electroplating that allows a high degree of control, precision and reliability. The process of electroforming entails preparation of a suitable mandrel and placing it in an electroplating bath. Nickel or other metals are deposited on the mandrel by electrochemical deposition. The outer surface of the mandrel forms the inner surface of the form. The surface of the finished part  is rendered in fine detail with respect to the original.

Standard Optical Components

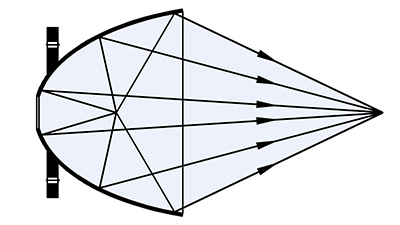

Elliptical Reflector Light Path

Elliptical Reflectors

Parabolic Reflectors

Off-Axis Parabolic Reflectors (OAP)

Spherical Reflectors

Aconic Reflectors

Custom Optical Reflectors
Specialized Structures

Compound Parabolic Collectors (CPC)

Condensers

Troughs

Light Tubes

Related Services

Reflector Mounting Systems

Reflector Refurbishment

In-House Design

Related Products

Thin Film Optical Coatings

Infrared Imaging Components

Electrodeposited Platings

Technical Resources

What is Electroforming

Electroforming Definitions

Nickel Metal Properties

See More

Thin Film Optical Coatings

Infrared Imaging Components

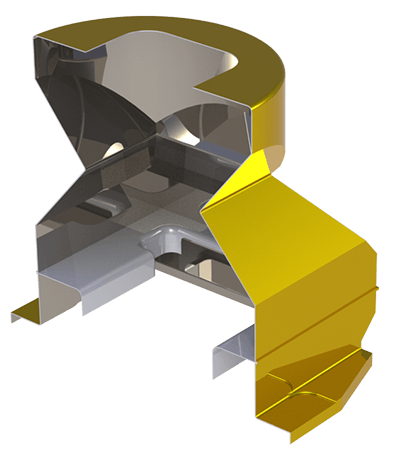

IR Imaging Components


Capabilities

Every aspect of our manufacturing takes place in-house, allowing us to deliver a quality product on time. Our fully integrated CNC machine shop produces our IR Imaging components to your tightest dimensional specifications and our Optical/Touch-probe CMM validates our CNC capabilities. With multiple stereo scopes at 20X magnification we perform visual inspection on 100% of our parts.

  • Machining: CNC 3,4, and 5th axis vertical mills, CNC lathes

  • Electro-discharge machining (EDM)

  • Laser marking and cutting

  • CAD/CAM programming

  • Metrology: Optical/Touch-probe CMM, Zygo Interferometer, Scanning Electron Microscope (SEM) / Electron Dispersive Spectroscopy (EDS), Hemispherical Directional Reflectance (HDR), Thermal Handheld Emissometer (ET100), Perkin Elmer Spectrophotometer


Electrodeposition

Electrodeposited Coatings

Gold (Au)

Totally inert, gold (Au) is an excellent reflective surface for the near to far infrared.


Optical Coatings Plated Gold Au Reflectivity Graph

Click or Tap on Graph to Learn More

Rhodium (Rh)

Hard, durable, and inert, this precious metal increases the reflectivity of electroformed nickel substrates.

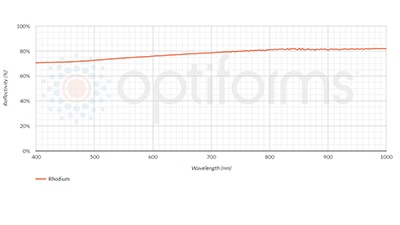

Optical Coatings Rhodium Reflectivity Graph

Click or Tap on Graph to Learn More
