neoLASE was founded in 2007 and emerged as a start-up company from the laser development department of the Laser Zentrum Hannover e.V. who they still cooperate with. The long term experience in the field of diode pumped solid state lasers allows neoLASE holding a high degree of qualification and competence in developing customized laser solutions. The balanced neoLASE team is formed by qualified and dedicated physicists, engineers as well as technicians. With our distributors from China, Japan, the USA and Canada we have the opportunity to work internationally.

产品列表

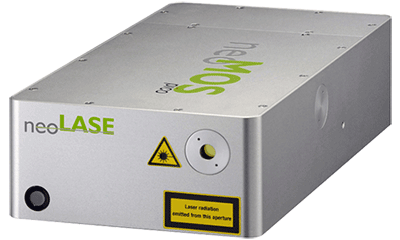

Picosecond Laser - neoMOS 2ps

The neoMOS picosecond laser series combines the reliability and low maintenance of a state of the art picosecond laser oscillator with a solid-state amplifier. The new developed laser system further expands the neoMOS pulse duration range into the area of less than 2 ps. The CPA free technology allows for bandwidth limited pulses on a smallest available footprint.

neoMOS 2ps Laser Parameters Pulse durations <2 ps Output power levels 5 W Pulse energy up to 30 µJ Repetition rates single shot to 25 MHz TEM0,0 Beam quality, M2 < 1.3

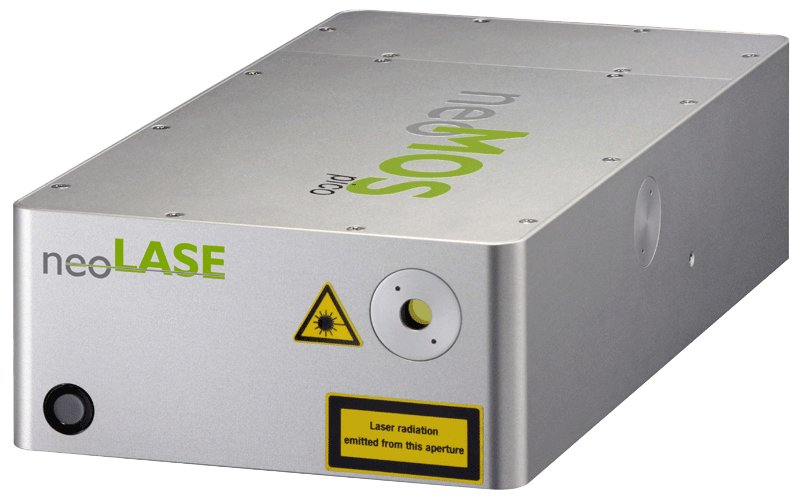

Picosecond Laser – neoMOS 10ps

The neoMOS picosecond laser series combines the reliability and low maintenance of state of the art picosecond oscillators with a solid-state amplifier. The ultra-compact laser head has the smallest footprint currently available enabling easy system integration. High stability and long lifetime are provided by design for 24/7 industrial use.

neoMOS 10ps Laser Parameters Pulse durations <10 ps Output power levels up to 50 W Pulse energy up to 150 µJ Repetition rates single shot to 40 MHz TEM0,0 Beam quality, M2 < 1.3

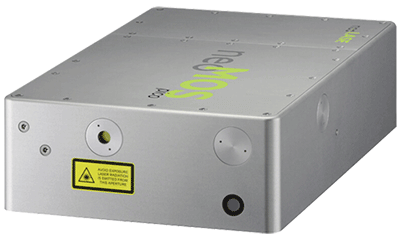

Picosecond Laser - neoMOS 70ps

The neoMOS picosecond laser series combines the reliability and low maintenance of a state of the art picosecond laser diode with a solid-state amplifier. Customized combinations with different output powers and flexible repetition rates are integrated into a ultra-compact laser head enabling easy system integration. High stability and long lifetime are provided by design for 24/7 industrial use.

neoMOS 70ps Laser Parameters Pulse durations 70 ps Output power levels 15 W Pulse energy up to 250 µJ Repetition rates single shot to 80 MHz FlexPulse Technologie TEM0,0 Beam quality, M2 < 1.3

Femtosecond Laser - neoMOS 700fs

The neoMOS picosecond laser series combines the reliability and low maintenance of a state of the art picosecond laser diode with a solid-state amplifier. Customized combinations with different output powers and flexible repetition rates are integrated into a ultra-compact laser head enabling easy system integration. High stability and long lifetime are provided by design for 24/7 industrial use.

The neoMOS femtosecond laser series combines the reliability and low maintenance of a state of the art fiber oscillator with a solid-state amplifier. The new developed laser system further expands the neoMOS pulse duration range into the area of less than 700 fs. The CPA free technology allows for bandwidth limited pulses on a smallest available footprint. neoMOS 700fs Laser Parameters Pulse durations < 700 fs Output power levels 10 W Pulse energy up to 40 µJ Repetition rates single shot to MHz TEM0,0 Beam quality, M2 < 1.3

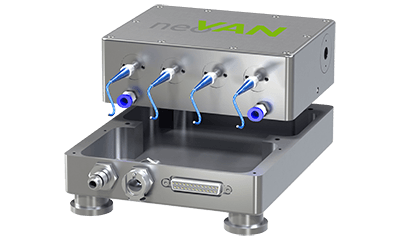

Laser Amplifiers

The neoVAN series is an OEM type solid-state laser amplifier system to boost the pulse energy or average output power for a couple of applications. The flexible system design allows a selection of different power and energy levels based on high reliable and long lifetime gain modules. The ultra-compact and nearly monolithic modules allow easy integration and cost effective upgrading of laser application machines, scientific lasers or low power oscillators.

Whether high peak power short pulse picosecond lasers for micromachining applications or single frequency radiation for gravitational wave detection the neoVAN amplifier modules will boost your application. While the fiber coupled, high gain module allows direct amplification of mode-locked oscillators, gain switched or narrow linewidth diodes, the standard free-space modules scales microchip lasers either into high average power or high energy levels. neoVAN Laser Amplifier Parameters: Output power 5 to 100 W Pulse energy up to 5mJ Mode of operation cw to ps-pulses Beam quality TEM0,0 / M²<1.3 Amplification factor up to 40 dB

NEW neoVAN-OEM Amplifier

The new developed OEM amplifier platform delivers the same system specifications as the neoVAN Systems but the laser head also includes laser pump diodes. This allows a very compact system design and a direct integration into existing laser systems or applications.

neoVAN Amplifier OEM Parameters: Output power 5 to >100 W Pulse energy up to 5mJ Mode of operation cw to ps-pulses Beam quality TEM0,0 / M²<1.3 Amplification factor up to 40 dB

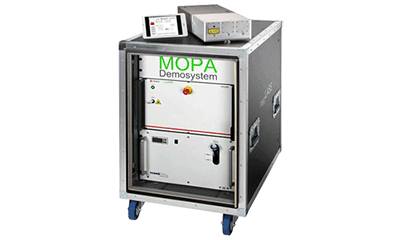

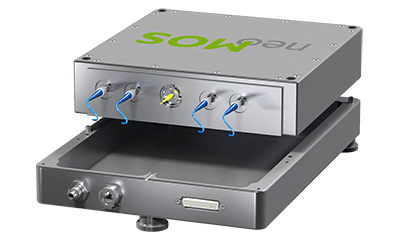

NEW neoMOS OEM MOPA System

The new developed OEM MOPA platform offers, complementary to the neoVAN amplifier family a fully integrated amplifier platform for short pulse laser applications. Equipped with a fiber coupled input as well as optical isolators and modulators the system can directly be used to amplifier mode-locked fiber oscillators.

Output power 5 to 50 W Pulse duration 1 ns – 5 ps Pulse energy up to 1 mJ Mode of operation single shot to MHz repetition rates Beam quality TEM0,0 / M²<1.3
