Low-cost Injection Molded Parts for High Volume LED Lighting Applications

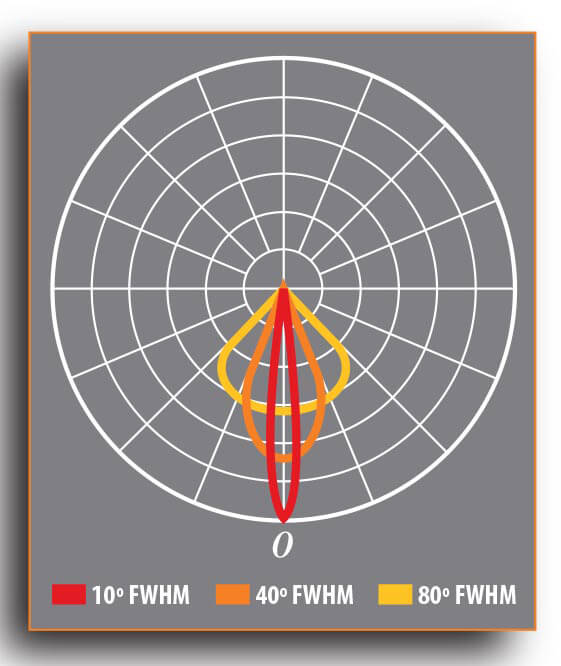

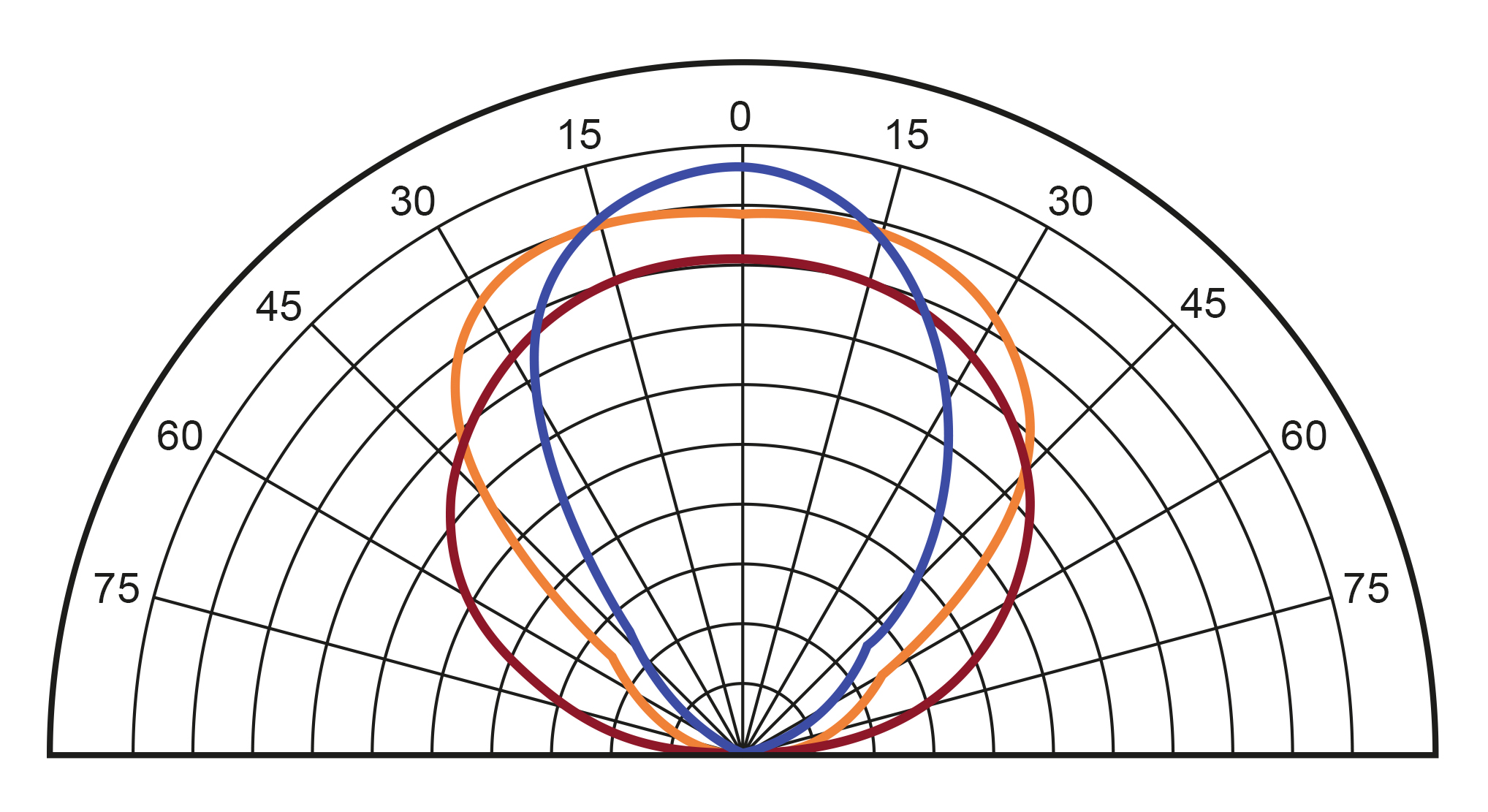

Low-cost injection molded Light Shaping Diffuser lenses are available for high volume LED lighting applications. Lenses (or windows) can be custom designed in a variety of circular and elliptical beam angles making them suitable for down lights as well as PAR or MR lamp formats. They can be designed to fit a lamp or fixture with the appropriate mechanical tabs or clips molded in. The monolithic integration of Luminit’s LSD microstructures into the exit window of a lamp or fixture results in a rigid lens with very high light transmission, a smooth “frosty” finish and a controlled beam pattern. These parts can be made to fit most lamp formats, including down lights, spotlights, flashlights and other lighting fixtures and can be produced at low cost in quantities of 10,000 or more.

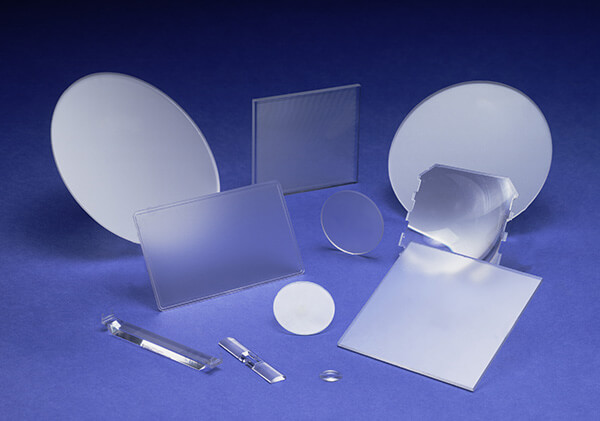

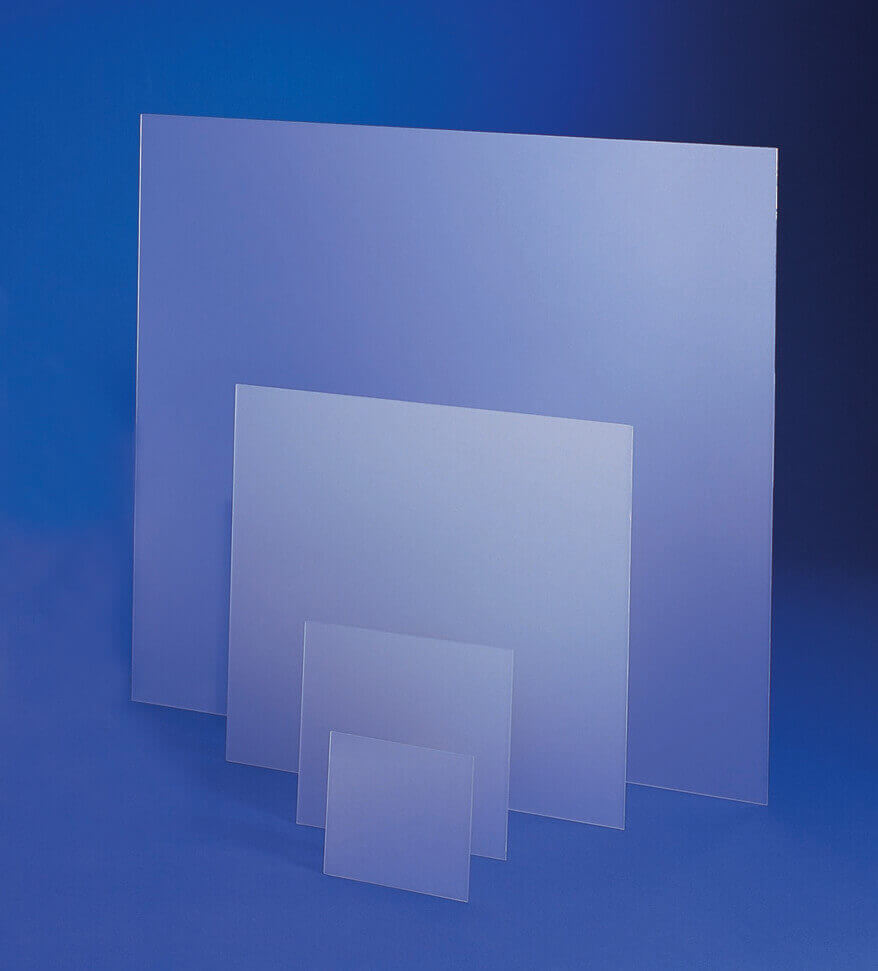

Rigid Sheet Light Shaping Diffusers

Luminit Light Shaping Diffusers are available in various circular and elliptical angles in pre-cut and rigid sheet format. Thicknesses from 0.030" to 0.250" are available.

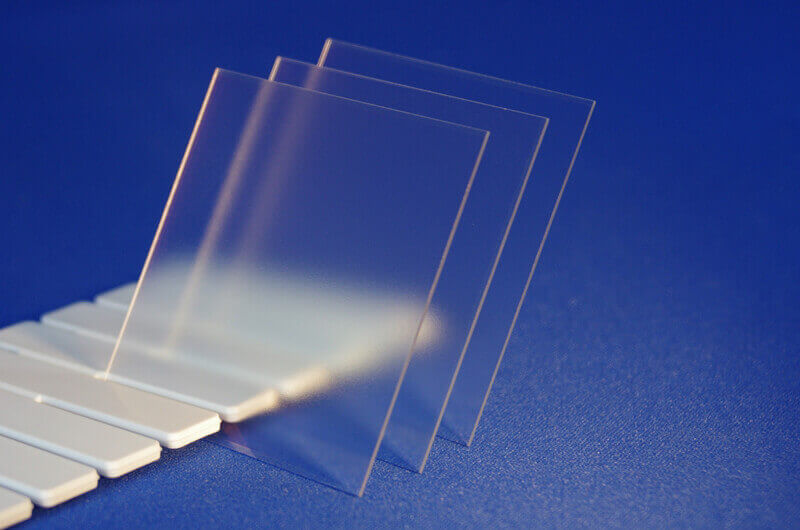

 Glass-on-Glass for High-Temperature Applications

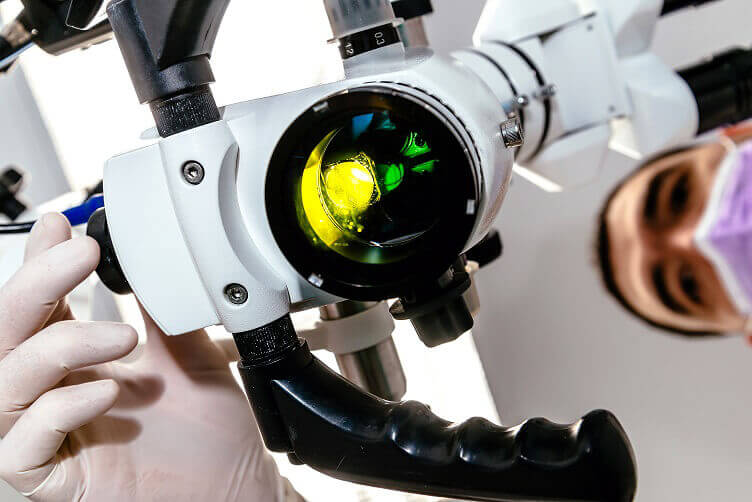

Luminit Glass-on-Glass Light Shaping Diffusers are primarily applicable to laser, biomedical instrumentation and other high temperature/high power applications as well as UV applications requiring high transmission at UV wavelengths. Custom sizes are available to fit most applications. We make Glass-on-Glass Light Shaping Diffusers by replicating our surface relief structures in Sol-Gel directly on a float glass or UV silica substrate.
