400-863-9100

ALPAO SAS(法国)

http://www.alpao.com

地址:
Inovallee 345 rue Lavoisier 38330 Montbonnot St. Martin France
电话:
+33 4 76 89 09 65
传真:
产品:
波前分析  变形镜  自适应光学

公司简介

作为一个为科研以及工业服务的自适应光学制造商,法国ALPAO公司提供完整的自适应光学产品:具有较大调制量的高速可变形镜,高灵敏度波前分析仪,完整的自适应光学闭环系统。所有的这些产品都已经被广泛应用于各种领域,包括:天文学、眼科、显微镜、无线光通信和激光领域。


产品列表

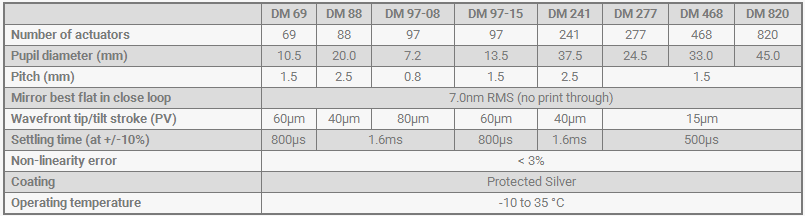

Deformable mirrors

Large deformation
  • • Up to 80μm optical deformation (peak to valley): to correct large amplitude aberrations.

  • • Up to 5.0μm optical deformation (inter actuator): to correct high spatial-frequency aberrations.

Highly dynamic motion:
  • • Settling time as low as 500µs at +/­10%.

Optical quality
  • • Active best flat as low as 3nm RMS




Adaptive Optics Systems

Key features and specifications
Ready to use system
  • • All components are included (even the breadboard and PC) and preassembled.

  • • A user-friendly graphical interface.

  • • Complete inline documentation including stepbystep tutorials.



Adaptive Optics Softwares & Real Time Computer

Specifications

Standard ALPAO Core Engine (ACE) based on the Matlab environment is the perfect choice to control adaptive optics systems. Its open, objectoriented architecture allows the user to rapidly build a robust, userfriendly software solution. ACE can run smoothly up to 800Hz with a typical delay below 1ms.

icon download

Download ACE datasheet

For the most demanding applications, ALPAO can provide you with the powerful ALPAO Core Engine fast (ACE fast), running up to 2kHz with a pure delay lower than 200μs.

icon download

Download ACE fast RTC datasheet
