1.Laser

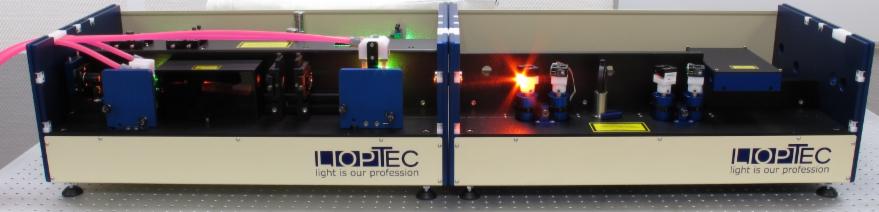

LiopStar-HQ        high repetition rate dye laser

  • low ASE < 0,05%

  • repetition rates up to 100 kHz

  • highly efficient laser resonator

  • eroded stainless steel case for oscillator and amplifier cells

  • new state-of-the-art integrated electronics and user friendly LabView Software

  • intelligent PI control for FCU autotracking unit

  • temperature stabilized crystals

  • USB port

  • remote control via TCP / IP protocol

  • smallest footprint



linewidth specifications                                                                         LIOPSTAR-HQ


              grating

     tuning range

       linewidth

LIOPSTAR-HQ

1800 l/mm, 90 mm

  430 nm – 900 nm

< 0.08  cm-1 @ 565 nm

LIOPSTAR-HQ

2400 l/mm, 90 mm

  430 nm – 750 nm

< 0.06 cm-1  @ 565 nm

 specifications                                                                                         LIOPSTAR-HQ

conversion efficiency:

Nd:YAG pumped 532 nm, 10 kHz, 10ns, 40W

Nd:YAG pumped 532 nm, 10 kHz, 10ns, 15W

 10 W,  25% @ 564 nm                         Rhodamine 6G

 6.8 W, 17% @ 640 nm                         DCM

 2 W,    13% @ 440 nm                         Coumarin 120

conversion efficiency:

Nd:YAG pumped 532 nm, 10 kHz, 10ns, 90W

Nd:YAG pumped 355 nm, 10 kHz, 10ns, 30W

 20 W,    22% @ 564 nm                       Rhodamine 6G

 13.5 W, 15% @ 640 nm                       DCM

3.3 W,    11% @ 440 nm                       Coumarin 120

conversion efficiency   SHG

>10%



conversion efficiency:

Nd:YAG pumped 532 nm, 1 kHz, 150ns, 90W

20 W, 22% @ 564 nm                            Rhodamine 6G

500 mW, 2.5% @ 282 nm                     SHG



wavelength reproducibility

 < 0.005 nm

absolute accuracy

 <   0.01 nm

scan linearity

 < 0.002 nm

wavelength stability

 < 0.001 nm/°C

divergence

        0.5 mrad

polarisation

 >    98 %                                                     vertical

ASE-background

 <    0.5 %



dimensions                                                                                        LIOPSTAR-HQ

LIOPSTAR-HQ

1040 mm x 400 mm x 300 mm ± 10 mm, 80 kg

beam input height

  180 mm ± 10 mm

beam output height

  200 mm ± 10 mm

requirements                                                                                     LIOPSTAR-HQ

cooling for dye solvent

800 Watt, resonator & amplifier system

laboratory

dust-free air (flow box)

voltage

110…230V, single phase, 50 Hz/ 60 Hz

computer

single USB port

operating system

Windows XP/ Windows Vista/ Windows 7



pump laser pulse power, kHz operation

up to 150 Watt

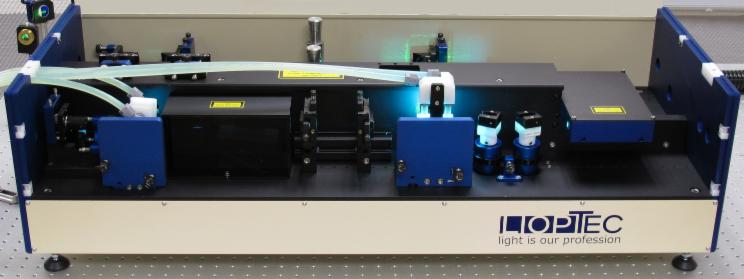

LiopStar


  • extreme narrow bandwidth system down to 0,02cm-1

  • extreme narrow bandwidth system down to 0,02cm-1

  • wide spectral range 197nm – 5000nm

  • low ASE <0,5%

  • repetition rates up to 100kHz

  • high efficient laser resonator

  • Gaussian near beam quality due to Bethune cells

  • third dye cell for high power pump laser

  • eroded stainless-steel case for oscillator and amplifier cuvettes for highest stability

  • new state-of-the art integrated electronics and user-friendly software

  • intelligent PI control for FCU autotracking unit with temperature stabilized crystals

  • USB port
    remote control via TCP / IP protocol
    smallest footprint

energy output

dye

UV/IR wavelength

pump energy

@ 10Hz

dye laser

output energy



SHG                  206 nm – 450 nm

Coumarin 120

220 nm

280 mJ @ 355 nm

LiopStar-VN

>   5 mJ

Coumarin 307

250 nm

280 mJ @ 355 nm

LiopStar-VN

>   5 mJ

Rhodamine 6G

280 nm

400 mJ @ 532 nm

LiopStar-VN

> 25 mJ

DCM

320 nm

400 mJ @ 532 nm

LiopStar-VN

> 25 mJ



THG1   (requires an aditional LSEH)          197 nm – 212 nm

Rhodamine B

200 nm

400 mJ @ 532 nm

LiopStar-VN

2 mJ

Rhodamine 101

205 nm

400 mJ @ 532 nm

LiopStar-VN

4 mJ

DCM

210 nm

400 mJ @ 532 nm

LiopStar-VN

4 mJ



DFM1,3    (requires an aditional LSEH)       1.4 μm – 5.0 μm

DCM

1.6 μm

400 mJ @ 532 nm

LiopStar-E-VN

6    mJ

Pyridine1

2.0 μm

400 mJ @ 532 nm

LiopStar-E-VN

5.5  mJ

Styryl 9

3.4 μm

400 mJ @ 532 nm

LiopStar-E-VN

800 μJ

LDS 867

4.7 μm

400 mJ @ 532 nm

LiopStar-E-VN

100 μJ


linewidth specifications                                                                                                                        LiopStar


              grating

     tuning range

       linewidth

LiopStar-E

1800 l/mm, 60 mm

  355 nm – 900 nm

< 0.1   cm-1 @ 620 nm

LiopStar-E

2400 l/mm, 60 mm

  355 nm – 740 nm

< 0.08 cm-1 @ 570 nm

LiopStar-E-N

1800 l/mm, 90 mm

  355 nm – 900 nm

< 0.06 cm-1 @ 620 nm

LiopStar-E-N

2400 l/mm, 90 mm

  355 nm – 740 nm

< 0.06 cm-1 @ 570 nm

LiopStar-E-N

3000 l/mm, 90 mm

  355 nm – 610 nm

< 0.05 cm-1 @ 560 nm

LiopStar-E-VN

double 1800 l/mm, 90 mm

  355 nm – 900 nm

< 0.05 cm-1 @ 620 nm

LiopStar-E-VN

double 2400 l/mm, 90 mm

  355 nm – 720 nm

< 0.04 cm-1 @ 570 nm

LiopStar-E-VN

double 3000 l/mm, 90 mm

  355 nm – 580 nm

< 0.03 cm-1 @ 570 nm



beam specifications                                                                                                                                 LiopStar

conversion efficiency:

Nd:YAG pumped 355 nm

 20% @ 405 nm                       Exalite 404

 14% @ 460 nm                       Coumarin 47

conversion efficiency:

Nd:YAG pumped 532 nm

 25% @ 630 nm                       DCM

 28% @ 565 nm                       Rhodamine 6G

wavelength reproducibility

 < 0.005 nm

absolute accuracy

 <   0.01 nm

scan linearity

 < 0.002 nm

wavelength stability

 < 0.001 nm/°C

divergence

        0.5 mrad

polarisation

 >    98 %                                  vertical

ASE-background

 <    0.5 %



dimensions                                                                                                                                                      LiopStar

LiopStar

1040 mm x 400 mm x 300 mm ± 10 mm, 70 kg

beam input height

  180 mm ± 10 mm

beam output height

  200 mm ± 10 mm



requirements                                                                                                                                                    LiopStar

pump laser pulse power

10 mJ … 1500 mJ (high power option),  s-pol

voltage

110 V 6A / 220 V 3 A, 50/60 Hz, single phase

computer

Windows, one free USB port


LiopStar-E


  • extreme narrow bandwidth system down to 0,02cm-1

  • wide spectral range 197nm – 5000nm

  • low ASE <0,5%

  • repetition rates up to 250kHz

  • high efficient laser resonator

  • Gaussian near beam quality due to Bethune cells

  • eroded stainless-steel case for oscillator and amplifier cuvettes for highest stability

  • new state-of-the art integrated electronics and user-friendly software
    intelligent PI control for FCU autotracking unit with temperature stabilized crystals
    USB port
    remote control via TCP / IP protocol
    smallest footprint


energy output

dye

UV/IR wavelength

pump energy

@ 10Hz

dye laser

output energy



SHG1                  206 nm – 450 nm

Coumarin 120

220 nm

280 mJ @ 355 nm

LiopStar-E-VN

>   5 mJ

Coumarin 307

250 nm

280 mJ @ 355 nm

LiopStar-E-VN

>   5 mJ

Rhodamine 6G

280 nm

400 mJ @ 532 nm

LiopStar-E-VN

> 25 mJ

DCM

320 nm

400 mJ @ 532 nm

LiopStar-E-VN

> 25 mJ



THG1                 197 nm – 212 nm

Rhodamine B

200 nm

400 mJ @ 532 nm

LiopStar-E-VN

2 mJ

Rhodamine 101

205 nm

400 mJ @ 532 nm

LiopStar-E-VN

4 mJ

DCM

210 nm

400 mJ @ 532 nm

LiopStar-E-VN

4 mJ



DFM1,3               1.4 μm – 5.0 μm

DCM

1.6 μm

400 mJ @ 532 nm

LiopStar-E-VN

6    mJ

Pyridine1

2.0 μm

400 mJ @ 532 nm

LiopStar-E-VN

5.5  mJ

Styryl 9

3.4 μm

400 mJ @ 532 nm

LiopStar-E-VN

800 μJ

LDS 867

4.7 μm

400 mJ @ 532 nm

LiopStar-E-VN

100 μJ


linewidth specifications                                                                                                                             LiopStar-E


              grating

     tuning range

       linewidth

LiopStar-E

1800 l/mm, 60 mm

  355 nm – 900 nm

< 0.1   cm-1 @ 620 nm

LiopStar-E

2400 l/mm, 60 mm

  355 nm – 740 nm

< 0.08 cm-1 @ 570 nm

LiopStar-E-N

1800 l/mm, 90 mm

  355 nm – 900 nm

< 0.06 cm-1 @ 620 nm

LiopStar-E-N

2400 l/mm, 90 mm

  355 nm – 740 nm

< 0.06 cm-1 @ 570 nm

LiopStar-E-N

3000 l/mm, 90 mm

  355 nm – 610 nm

< 0.05 cm-1 @ 560 nm

LiopStar-E-VN

double 1800 l/mm, 90 mm

  355 nm – 900 nm

< 0.05 cm-1 @ 620 nm

LiopStar-E-VN

double 2400 l/mm, 90 mm

  355 nm – 720 nm

< 0.04 cm-1 @ 570 nm

LiopStar-E-VN

double 3000 l/mm, 90 mm

  355 nm – 580 nm

< 0.03 cm-1 @ 570 nm



beam specifications                                                                                                                                     LiopStar-E

conversion efficiency:

Nd:YAG pumped 355 nm

 20% @ 405 nm                       Exalite 404

 14% @ 460 nm                       Coumarin 47

conversion efficiency:

Nd:YAG pumped 532 nm

 25% @ 630 nm                       DCM

 28% @ 565 nm                       Rhodamine 6G

wavelength reproducibility

 < 0.005 nm

absolute accuracy

 <   0.01 nm

scan linearity

 < 0.002 nm

wavelength stability

 < 0.001 nm/°C

divergence

        0.5 mrad

polarisation

 >    98 %                                  vertical

ASE-background

 <    0.5 %



dimensions                                                                                                                                            LiopStar-E

Liop-Star-E

  750 mm x 400 mm x 300 mm ± 10 mm, 50 kg

LSEH-Extension

  750 mm x 400 mm x 300 mm ± 10 mm, 30 kg

beam input height

  180 mm ± 10 mm

beam output height

  200 mm ± 10 mm



requirements                                                                                                                                        LiopStar-E

pump laser pulse power

10 mJ … 1000 mJ (high power option),  s-pol

voltage

110 V 6A / 220 V 3 A, 50/60 Hz, single phase

computer

Windows, one free USB port


LSEH


Extension unit LSEHTypicalSHG:210 nm - 440 nm
THG:197 nm - 220 nm
DFM:1.4 µm - 5.0 µm
Mixing with 355 nm:215 nm - 245 nm
Mixing with 1064nm:360 nm - 440 nm
Mixing after doubling with 1064nm:192 nm - 200 nm and 221 nm - 250 nm

LiopStar-E with LSEH



2.Opto-Mechanics

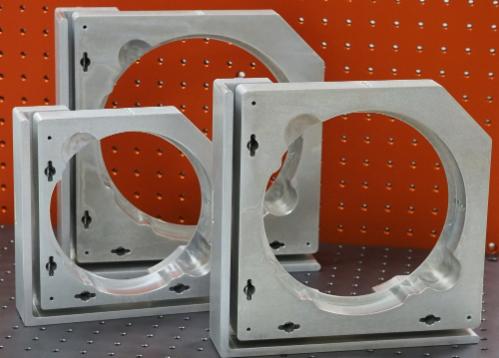

ANTARES


     - Gimbal design

     - For large optics according to customer demand (e.g. 500mm x 700mm)

     - Adjustment by 170 TPI fine thread screws (standard)

     - Available with piezo drive

     - Suitable for high vacuum applications

Typical application: Beam steering in compressor chambers of ultrahigh power laser systems

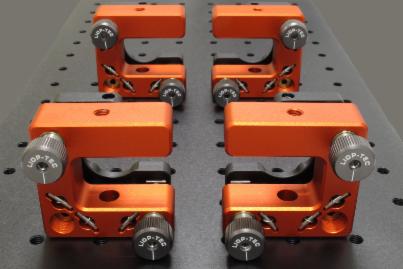

ASTEROID

1/2" mirror mount of stainless steel with screw lock



AS050K-050-3


Planet

0.5 inch

PL050L-050-2-BU PL050R-050-2-BU


1 inch

PL050-050L-2-BU PL050-050R-2-BU

0.5 inch

PL050L-100-2-BU PL050R-100-2-BU

1 inch

PL100L-100-2-BU PL100R-100-2-BU


1 inch

PL100-100L-2-BU PL100-100R-2-BU


Star

0.5 inch

SR050-050-2-BU

0.5 inch

SR050-050L-2-BU

0.5 inch

SR050-050R-2-BU

1 inch

SR050-100-2-BU


1 inch

SR100-100-2-BU

1 inch

SR100-100C-2-BU

1 inch

SR100-100L-2-BU

1 inch

SR100-100R-2-BU


1.5 inch

SR100-150-2-BU

2 inch

SR100L-200-2-BU


SR100-PH-2-BU


2 inch

SR200-200-2-BU


2 inch

SR200-200R-2-BU

2 inch

SR200i-200-2-BU

2 inch

SR200i-200L-2-BU

2 inch

SR200i-200R-2-BU

3 inch

SR300i-300-2-BU


3 inch

SR300i-300L-2-BU

3 inch

SR300i-300R-2-BU

6 inch, 7 inch and 8 inch

 SR600i-600-2S, SR700i-700-2S and SR800i-800-2S


Custom-Made Solutions


    c-mount
