公司简介

美国Lee Laser公司是绿光激光器的全球行业领先者，可提供工业绿光激光器需要的解决方案。公司提供高功率纳秒或连续Nd:YAG激光器：Nd:YAG倍频532nm绿光激光器的功率从TEM00的3W到多模150W，包括灯泵和半导体泵浦两大类产品。


产品列表

1、UV Industrial Lasers

LDP-100MQU – 12 Watts

series-LDP-100TQU-LDP-100MQU-industrial-

UV DIODE-PUMPED Nd:YAG LASER
Multimode / 355 nm Wavelength

An innovative laser optics design, combined with an industrial-grade power supply, results in an extraordinarily reliable and rugged diode-pumped Nd:YAG laser for industrial use. A TOTALLY SOLID-STATE LASER for TROUBLE-FREE MANUFACTURING!

  • Efficient diode optical pumping for improved performance and reliability.

  • Q-switched pulse stability < 5 % rms up to 15 kHz

  • Efficient water/water heat exchanger cooling system (self-contained chiller optionally available).

  • Uses Intracavity SHG and THG Assemblies with LBO harmonic generator crystals.

  • “CE Mark” Certified; this is a CDRH Class IV laser product.

Wavelength: 355 nm
Transverse Mode: Multimode
Beam Diameter, nominal: 1.0 mm
Beam Divergence, nominal: 2.5 mr
Polarization: Linear


Q-switched performance

Frequency5 kHz7.5 kHz10* kHz20 kHz30 kHz
Average Power8 Watts11 Watts12* Watts6 Watts5 Watts
Pulse Energy1.6 mJ1.5 mJ1.2* mJ0.3 mJ0.17 mJ
Pulse Width105 ns125 ns160* ns270 ns400 ns
Peak Pulse Power15.2 kW11.7 kW7.5* kW1.1 kW0.42 kW

* Laser is specified at 10 kHz, all other values are typical.


Mechanical

Optical Resonator Length70 L x 20 W x 21 H cm
Power Station Dimensions (water/water cooler)77 H x 60 W x 85 D cm

Electrical Power

Recommended Service220 ± 10% VAC, 1-phase, 50/60 Hz, 20A
Average Consumption2 kW, maximum

Cooling

City water cooled, 8 L/min at 15° C max. temp.
>2.5 bar (35 psi) pressure
Self-contained, refrigerated chiller optionally available.
1-kW heat vented into room.
Maximum ambient operating temperature 30° C

Additional Information

 Specification Sheet


LDP-200MQU-HP – 55 Watts

series-LDP-100TQU-LDP-100MQU-industrial-

UV DIODE-PUMPED Nd:YAG LASER
Multimode / 355 nm Wavelength

An innovative laser optics design, combined with an industrial-grade power supply, results in an extraordinarily reliable and rugged diode-pumped Nd:YAG laser for industrial use. A TOTALLY SOLID-STATE LASER for TROUBLE-FREE MANUFACTURING!

  • Efficient diode optical pumping for improved performance and reliability

  • Q-switched pulse stability ≤ 5 % rms peak-to-peak up to 30 kHz

  • Efficient water/water heat exchanger cooling system.

  • Uses intracavity THG assemblies with LBO harmonic generator crystals.

  • “CE Mark” Certified; this is a CDRH Class IV laser product

Wavelength: 355 nm
Transverse Mode: Multimode
Beam Diameter, nominal: 2.0 mm
Beam Divergence, nominal: 4.0 mr
Polarization: Linear


Q-switched performance

Frequency7.5 kHz10* kHz15 kHz20 kHz50 kHz
Average Power50 Watts55* Watts50 Watts45 Watts45 Watts
Pulse Energy6.7 mJ5.5* mJ3.3 mJ2.25 mJ0.9 mJ
Pulse Width≤ 90 ns≤ 100* ns≤ 140 ns≤ 170 ns≤ 180 ns
Peak Pulse Power≤ 74.1 kW≤ 55.0* kW≤ 23.8 kW≤ 13.2 kW≤ 5.0 kW

* Laser is optimized at 10 kHz, all other values are typical.


Mechanical

Optical Resonator Length152.4 L x 24.1 W x 20.3 H cm
Power Station Dimensions (water/water cooler)77 H x 60 W x 85 D cm

Electrical Power

Recommended Service220 ± 10% VAC, 1-phase, 50/60 Hz, 30A
Average Consumption2.3 kW, maximum

Cooling

City water cooled, 24 L/min at 15° C max. temp.
>2.5 bar (35 psi) pressure

Environmental

Temperature, Operating18 - 30°C
Temperature, Storage5 - 60°C
Humidity10 - 90% non-condensing

Additional Information

 Specification Sheet


LDP-200MQU-HP-Dual – 100 Watts

series-LDP-100TQU-LDP-100MQU-industrial-

UV DIODE-PUMPED Nd:YAG LASER
Multimode / 355 nm Wavelength

An innovative laser optics design, combined with an industrial-grade power supply, results in an extraordinarily reliable and rugged diode-pumped Nd:YAG laser for industrial use. A TOTALLY SOLID-STATE LASER for TROUBLE-FREE MANUFACTURING!

  • Efficient diode optical pumping for improved performance and reliability.

  • Q-switched pulse stability ≤ 5 % rms peak-to-peak up to 30 kHz.

  • Efficient water/water heat exchanger cooling system.

  • Uses intracavity THG assemblies with LBO harmonic generator crystals.

  • “CE Mark” Certified; this is a CDRH Class IV laser product

Wavelength: 355 nm
Transverse Mode: Multimode
Beam Diameter, nominal: 2.0 mm
Beam Divergence, nominal: 4.0 mr
Polarization: Linear


Q-switched performance

Frequency7.5 kHz10* kHz15 kHz20 kHz50 kHz
Average Power90 Watts100* Watts100 Watts90 Watts90 Watts
Pulse Energy12 mJ10* mJ6.7 mJ4.5 mJ1.8 mJ
Pulse Width≤ 110 ns≤ 120* ns≤ 140 ns≤ 180 ns≤ 180 ns
Peak Pulse Power≤ 109 kW≤ 91* kW≤ 48 kW≤ 25 kW≤ 10 kW

* Laser is optimized at 10 kHz, all other values are typical.


Mechanical

Optical Resonator Length152.4 L x 50 W x 20.3 H cm
Power Station Dimensions (water/water cooler)2@77 H x 60 W x 85 D cm

Electrical Power

Recommended Service220 ± 10% VAC, 1-phase, 50/60 Hz, 30A
Average Consumption2.3 kW, maximum

Cooling

City water cooled, 24 L/min at 15° C max. temp.
>2.5 bar (35 psi) pressure

Environmental

Temperature, Operating18 - 30°C
Temperature, Storage5 - 60°C
Humidity10 - 90% non-condensing

Additional Information

 Specification Sheet


2、Diode Pumped Lasers

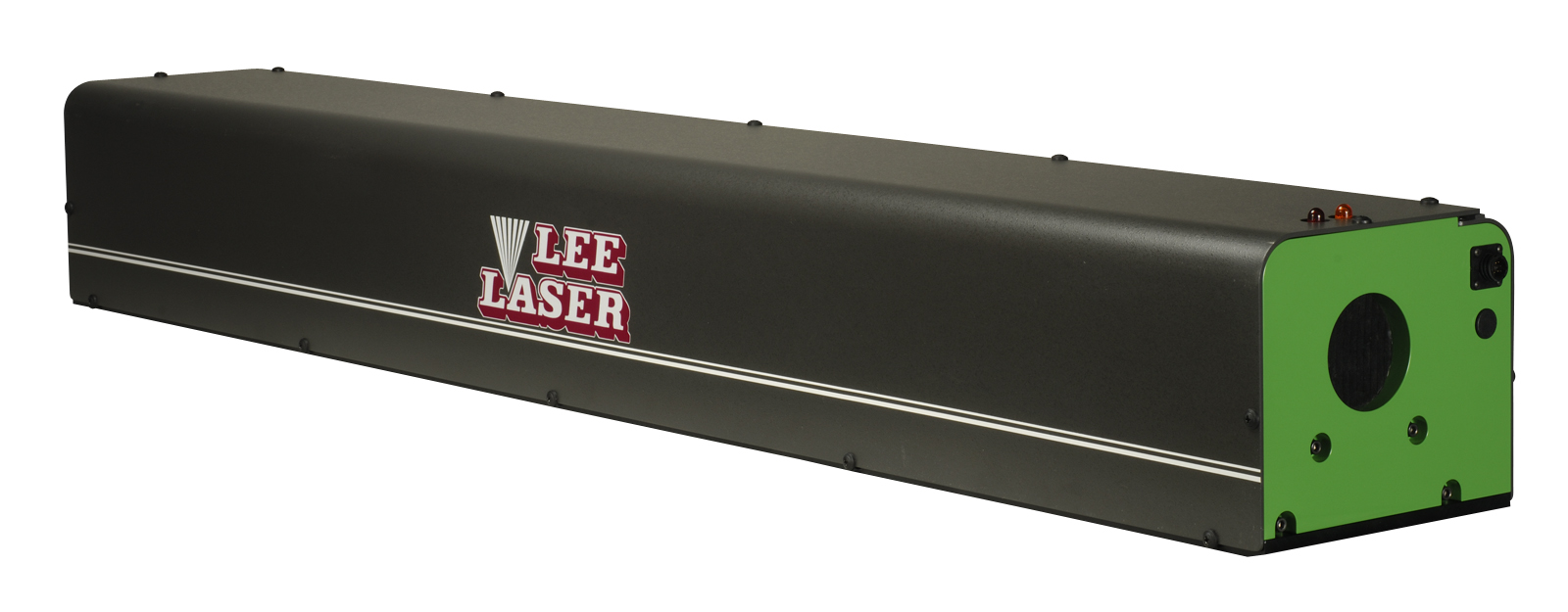

    LDP-100MQ 10kHz

    Green1_no background

    HIGH POWER, DIODE-PUMPED CW Nd:YAG LASER
    Multimode / 1064 wavelength

    An innovative laser optics design, combined with an industrial-grade power supply, results in an extraordinarily reliable and rugged diode-pumped Nd:YAG laser for industrial or scientific use.

    ●Efficient diode optical pumping for improved performance and reliability
    ●High power output from small diameter, low divergence beam
    ●Highly circular multimode beam profile
    ●Q-switched pulse stability:  < 3 % rms up to 10 kHz
    ●Efficient water/water heat exchange cooling system (water-cooled, refrigerated-chiller cooling system optionally available)
     ● “CE Mark” Certified; this is a CDRH Class IV laser product


    Q-switched performance

    Frequency (kHz)*
    		CW10



    Average Power (W)*
    		10070



    Pulse Width (ns) Nominal*

    		200



    Pulse Width Power (kW)*

    		35











    * Actual results are configuration dependant







    Operational

    Wavelength
    		1064nm
    Tansverse Mode
    		Multimode
    Beam Diameter, nominal
    		<2.0mm
    Beam Divergence, nominal
    		6mr
    Polarization
    		Random



    * Actual results are configuration dependant


    Mechanical & Electrical


    Optical Rail Length
    		21 H X 22.9 W X 100 L cm
    Power Station Dimensions
    		77 H X 60 W X 86 D cm (Water / Water cooler)
    Recommended Service
    		220 +/- 10% VAC, 1-phase, 50/60 Hz, 20A
    Average Consumption
    		2 kW, maximum with water / water cooler
    Cooling - Water
    		City water, 16 1/m @ 15 C max. temp.


    		Optional city-water cooled refrigerated chiller


    		requires city water, 8 1/m @ 25 C max. temp
    Temperature Operating
    		18 - 33 C
    Humidity
    		10 - 90%, non-condensing



    * Actual dimensions and water service are configuration dependent.

    Data Sheets

    LDP-100MQ



    3、Picosecond Laser

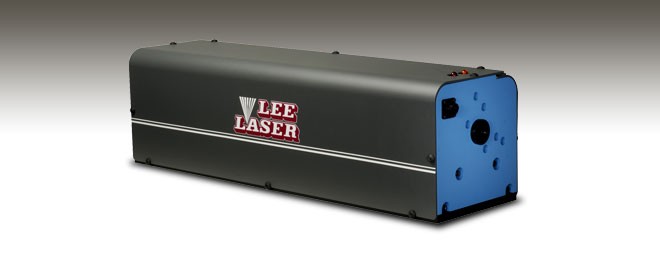

    LFP-50T

    pico

    PICOSECOND LASER

    High Power Micromachining

    An innovative laser optics design, combined with an industrial-grade power supply, results in an extraordinarily reliable and rugged diode-pumped Nd:YAG laser for industrial or scientific use.



    ●Efficient seed/diode pumped solid-state amplifier (patented)
    ●“CE Mark” Certified; this is a CDRH Class IV laser product


    Q-switched performance

    Wavelength (nm)10641064532532


    Max Output Power before POD (W)*1550930


    Max Output Power after POD (W)*1240724


    Max Pulse Energy before POD (mJ)*12040060200


    Pulse Width FWHM (ps) Nominal*15151515


    Min. Pulse Repetition Rate (kHz)*0, Single Pulse0, Single Pulse0, Single Pulse0, Single Pulse


    Max. Pulse Repetition Rate (MHz)*30303030


    Single Pulse Selection (MHz)*Up to 4Up to 4Up to 4Up to 4


    Pulse Peak Power (MW)*8253.513










    * Actual results are configuration dependant







    Operational

    Wavelength1064nm532nm
    M2 Value< 1.4< 1.4
    Beam Diameter, nominal2.0mm2.0mm
    Beam Divergence (full angle), nominal< 1.0mr< 0.5mr
    PolarizationLinearLinear



    * Actual results are configuration dependant


    Mechanical & Electrical

    Output Module Dimensions
    		198 H X 371 W X 985 L mm
    Recommended Service
    		220 +/- 10% VAC, 1-phase, 50/60 Hz, 30A
    Max Power Consumption
    		2.02 kW
    Weight, Output Module
    		60 kg
    Weight, Power Supply
    		230 kg
    Cooling
    		City water cooled, 8 I/m @ 15 C max temp. Self-contained, refrigerated chiller 1-kW heat vented into room
    Temperature Operating
    		18 - 33 C
    Humidity
    		10 - 90%, non-condensing
    Options
    		Power/cooling supply as 19" rack mount for integration



    * Actual dimensions and water service are configuration dependent.


    Data Sheets

    LFP-50T


    4、End Pumped Lasers
