Innolume GmbH(德国)

http://www.innolume.com/

地址:
Konrad-Adenauer-Allee 11 44263 Dortmund Germany
电话:
+49 231 47 73 02 00
传真:
+49 231 47 73 02 50
产品:
放大器  光纤光学  光纤耦合半导体激光器  光纤  激光二极管  激光  半导体激光器  半导体光放大器  超辐射发光二极管

公司简介

德国Innolume公司位于多特蒙德,并在美国加州的圣克拉拉也设有生产基地。公司主要生产量子阱半导体激光器和激光模块,波长覆盖780nm~1340nm。


产品列表

Laser Diode Driver

Laser Diode Driver

Compact solution features 14-pin butterfly mount, current driver and TEC controller in one box. Available for all Innolume SM fiber coupled devices.

  • Current range: 0-2 A

  • TEC current: 0-3 A

  • Software control via USB


HPLD

Single-mode Laser Diodes

Single-mode Edge Emitting High Power Laser Diodes operating in CW and/or pulse modes on submounts or in different housings. The wavelength stabilization is possible by a fiber Bragg grating (FBG).

  • Any wavelength in the range 970-1330 nm.

  • Power ex fiber: up to 600mW

  • Pulsed lasers

  • FBG-stabilized modules


HPLD

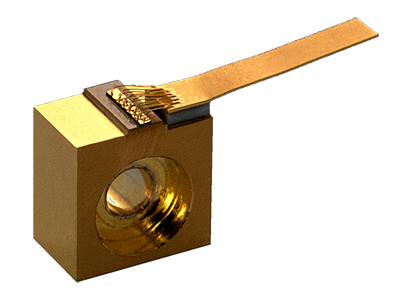

Broad-area Laser Diodes

Multimode Edge Emitting High Power Laser Diodes up to 20W in 970-1330nm spectral range on submounts or in different housings.

  • Power ex chip: up to 12 W

  • Power ex fiber: up to 20 W

  • Pulsed lasers


Comb-laser

Comb-laser

Comb-laser is a light source generating a dozen of low noise equidistant spectral lines for application in DWDM links in optical interconnects.

  • Wavelegth: 1310 nm

  • Number of channels: 12-16

  • Channel spacing: 80 GHz

  • Power: 2.5 mW/channel

  • Total power: 35 mW

  • Individual RIN: < -125 dB


DFB and DBR laser

DFB & DBR lasers

Distributed Feedback (DFB) and Distributed Bragg Reflector (DBR) laser diodes are the light sources emitting extremely narrow spectral line with bandwidth below 5MHz and typical Side Mode Suppression Ratio (SMSR) > 40dB.

  • Wavelength: 976, 1064, 1178, 1260 nm

  • Power: up to 150 mW

  • Linewidth: < 5 MHz


Gain-chips

Gain-chips

Gain-chip is the irreplaceable component as a gain medium for the building of the tunable diode laser or high stable external cavity diode laser.

  • Tunning range: 60-160 nm

  • Output power: up to 300 mW

  • High signal/ASE ratio: up to 40 dB

  • Straight and curved stripe designs

  • Low beam divergence models are available

  • No self lasing


Gain-modules

Gain-modules

Gain-modules designed like gain-chips especially for external cavity systems and tunable lasers, but already have fiber output which significantly simplifies final device design and adjustment.

  • Fiber output

  • Tunning range: 100-160 nm

  • Power ex fiber: up to 300 mW

  • High signal/ASE ratio: up to 40 dB

  • Low beam divergence models are available

  • No self lasing


Semiconductor Optical Amplifiers

Semiconductor Optical Amplifiers

Semiconductor optical amplifiers (booster optical amplifiers) are amplifiers which use a semiconductor to provide the gain medium. They have tilted chip design and anti-reflecting coating on both facets.

  • High gain: up to 40dB

  • Gain bandwidth: 20-110 nm (FWHM)

  • Low noise figure: < 5 dB

  • High saturation output power: > 15dBm

  • Low ripples: < 0.3 dB (RMS)


HPLD

Superluminescent Diodes

Superluminescent Diodes are edge-emitting semiconductor light sources based on superluminescence. They are especially essential when broadband light source with low ripples is needed.

  • Power: > 100 mW

  • ASE bandwidth: 20-110 nm (FWHM)

  • Low ripples: < 0.2 dB (RMS)


RCLED & LED

RCLED & LED

Resonant cavity light emitting diode InGaAs/AlGaAs chips operating at 930nm, 960nm, 1170nm, 1240nm and 1270nm.

  • Power: up to 15mW

  • Bandwidth: 40nm (FWHM)


Epi-Wafers

Epi-Wafers

Innolume provides GaAs-based Quantum Dot and Quantum Well wafers used in a wide range of optoelectronic applications.



    应用领域


    Raman Amplification

    Innolume provides high power pump-lasers in the 12xx nm range, first time enabling low cost Raman Amplification in the telecom O-band.



    Optical Interconnect

    Innolume offers solutions for optical interconnect technologies in next generation, high speed data transfer. Innolume’s COMB-Laser and extensive activities in the area of photonic integrated solutions eliminate the bottleneck in electronic data signaling over copper wires.



    Medical & Industrial

    Innolume enables completely new medical and industrial applications by offering high power, high brightness diode lasers in the wavelength range fully covering 1064nm – 1320nm. The excellent performance and advantages in terms of efficiency, footprint and cost makes them an attractive replacement to old fashioned  gas or solid state lasers.
