公司简介
AdvR成立于1999年，是公认的工程化非线性光学结构的光子设备和应用程序的领导者。开发、生产和销售工程化非线性结构、激光及相关光电产品，目前出售的工程化非线性光学结构波导和散装形式拥有从大学和工业研究人员到新产品开发人员的广泛的客户群。
产品列表
Waveguide Frequency Conversion | Quantum Frequency Conversion | Bulk Frequency Conversion |
KTP Phase Modualtor | X-Cut LN Phase Modulator |
Prototypes
Stabilized Seed Laser Systems | EO Deflectors and Switches |

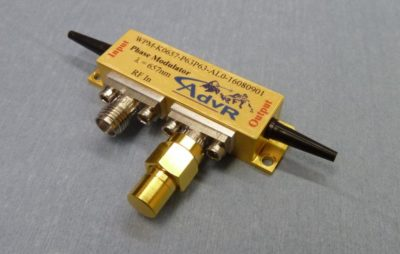

High Power Fiber Coupled Phase Modulators
Specification
Wavelength 3dB Bandwidth (GHz) Vπ (V) Fiber
397
423 PM400
446 ≤ 5
480
532
556 PM480
583 ~5 or ~10 ≤ 6
606
633
657
671 PM630
689 ≤ 7
707
730
780
852 ≤8 PM850
1064 ~10 PM980

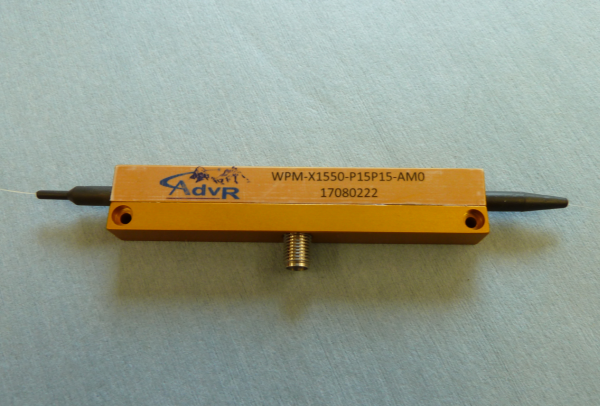

X-Cut APE LN Phase Modulato
Specification
Operation Wavelength | 13XX nm | 15XX nm |
Insertion Loss | ≤3.5 dB | |
Half-wave Voltage | <3.5 V | < 4.5 V |
Bandwidth | > 100 MHz | |
Fiber Type | PM1300 | PM1550 |
Fiber Connector | FC/APC | |
RF Connection | F SMA (5 in lbs) | |
