公司简介

Elforlight位于英国北安普敦郡，成立于1997年，主要从事设计和制造半导体泵浦固体激光器解决科研和工业应用对DPSS激光器得需求，产品特色所有的产品都是紧凑型，小型或微型，免维 护的设计和制造风格，并为特定的工业和科研应用而设计。


产品列表

CW Laser

1.Infra Red SLM

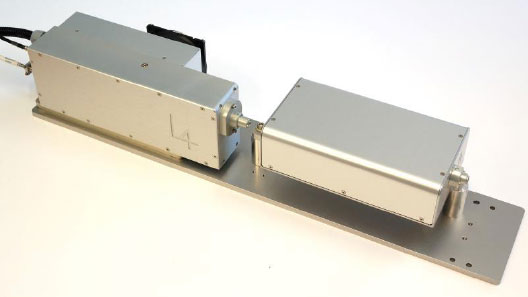

I4 (1064nm Seeder) Series


ModelI4-30-1064-SI4-60-1064-S
Power30mW60mW
Wavelength1064nm
Tuneability~ 100Ghz
Spatial ModeTEM00 M2 < 1.2
Longitudinal ModeSingle Longitudinal Mode (SLM)
Noise< 0.5% RMS (typ 0.2%)
Beam Divergence< 2.5mRad
Polarisation>100:1 Vertical


I4 (1064nm) Series



ModelI4-500I4-700I4-1000
Power500mW700mW1W
Wavelength1064nm
Spatial ModeTEM00 M2 < 1.2
Longitudinal ModeSingle Longitudinal Mode (SLM)
Noise< 0.5% RMS (typ 0.2%)
Beam Divergence< 2mRad
Polarisation>100:1 Vertical


I4 (1342nm) Series



ModelI4-250-1342I4-500-1342I4-1000-1342
Power250mW500mW1W
Wavelength1342nm
Spatial ModeTEM00 M2 < 1.2
Longitudinal ModeSingle Longitudinal ModeMulti ModeMulti Mode
Noise< 0.5% RMS (typ 0.2%)
Beam Divergence< 2.5mRad
Polarisation>100:1 Vertical


2.Infra Red High Power

ModelHPI-5HPI-10
Power5W10W
Wavelength1064nm
Spatial ModeTEM00 M2 < 1.2
Power Stability< +/- 2% over 1 hour
Noise< 0.5% RMS
Beam Divergence< 1mRad
Polarisation>100:1


3.Visible SLM



ModelG4-60G4-100G4-150G4-200G4-250
Power60mW100mW150mW200mW250mW
Wavelength532nm
Spatial ModeTEM00 M2 < 1.1
Longitudinal ModeSingle Longitudinal Mode (SLM)
Noise< 0.5% RMS (typ 0.2%)
Beam Divergence< 1mRad
Polarisation>100:1 Vertical


4.Visible High Power

ModelHPG-2000HPG-3000HPG-4000HPG-5000HPG-6000
Power2W3W4W5W6W
Wavelength532nm
Spatial ModeTEM00 M2 < 1.2
Longitudinal ModeMulti Mode
Noise3% Pk / Pk
Beam Divergence< 1mRad
Polarisation>100:1 Horizontal



Pulsed Lasers

1064nm



≤50uj  <2ns

ModelSPOT-10-500-1064SPOT-10-100-532SPOT-10-200-532SPOT-10-100-355SPOT-10-50-266
Wavelength1064nm532nm355nm266nm
Pulse Energy50µJ10µJ20µJ10µJ5µJ
Pulse Width< 2ns< 1.8ns< 1.5ns< 1.5ns
Repetition Rate0 - 50kHz0 - 50kHz0 - 40kHz0 - 40kHz
Spatial ModeTEM00 M2 < 1.2
Jitter< +/- 1ns

≤400uj  <4ns

ModelFQS-400-1-Y-1064FQS-200-1-Y-532FQS-100-1-Y-355
Wavelength1064nm532nm355nm
Pulse Energy @ 1kHz> 400µJ> 200µJ> 100µJ
Pulse Width< 5ns< 5ns< 4ns
Repetition Rate0-10kHz0-10kHz0-10kHz
Spatial ModeTEM00 M2 < 1.2
Jitter< +/- 1ns

≤1mj   10ns

ModelFQ-800-5-Y-1064FQ-70-100-V-1064
Wavelength1064nm
Average Power4W at 5kHz7W at 100kHz
Pulse Width10-15 ns< 20ns at < 50kHz
Repetition RateUp to 10kHz10 to 100kHz
Spatial ModeTEM00 M2 < 1.1
Jitter< +/- 3%

≤10mj   10ns

ModelFLP-3-A-1064FLP-1-A-532FLP-1.5-P-1064FLP-0.75-P-532
Q-switch TypeActiveActivePassivePassive
Wavelength1064nm532nm1064nm532nm
Energy Per Pulse3mJ1mJ1.5mJ0.75mJ
Linewidth> 2cm-2 (can be customised)SLM
Pulse Width2-5ns~5ns
Repetition RateUp to 50 Hz
Spatial ModeTEM00 M2 < 1.2


532nm



≤20uj  <2ns

ModelSPOT-10-500-1064SPOT-10-100-532SPOT-10-200-532SPOT-10-100-355SPOT-10-50-266
Wavelength1064nm532nm355nm266nm
Pulse Energy50µJ10µJ20µJ10µJ5µJ
Pulse Width< 2ns< 1.8ns< 1.5ns< 1.5ns
Repetition Rate0 - 50kHz0 - 50kHz0 - 40kHz0 - 40kHz
Spatial ModeTEM00 M2 < 1.2
Jitter< +/- 1ns

≤200uj  <4ns

ModelFQS-400-1-Y-1064FQS-200-1-Y-532FQS-100-1-Y-355
Wavelength1064nm532nm355nm
Pulse Energy @ 1kHz> 400µJ> 200µJ> 100µJ
Pulse Width< 5ns< 5ns< 4ns
Repetition Rate0-10kHz0-10kHz0-10kHz
Spatial ModeTEM00 M2 < 1.2
Jitter< +/- 1ns

≤500uj  10ns

ModelFQ-500-532
Wavelength532nm
Average Power2.5W at 5kHz
Pulse Width12-15 ns at 5kHz
Repetition RateUp to 15kHz
Spatial ModeTEM00 M2 < 1.2
Jitter< +/- 3%

≤3mj  10ns

ModelFLP-3-A-1064FLP-1-A-532FLP-1.5-P-1064FLP-0.75-P-532
Q-switch TypeActiveActivePassivePassive
Wavelength1064nm532nm1064nm532nm
Energy Per Pulse3mJ1mJ1.5mJ0.75mJ
Linewidth> 2cm-2 (can be customised)SLM
Pulse Width2-5ns~5ns
Repetition RateUp to 50 Hz
Spatial ModeTEM00 M2 < 1.2


355nm



≤10uj  <2ns

ModelSPOT-10-500-1064SPOT-10-100-532SPOT-10-200-532SPOT-10-100-355SPOT-10-50-266
Wavelength1064nm532nm355nm266nm
Pulse Energy50µJ10µJ20µJ10µJ5µJ
Pulse Width< 2ns< 1.8ns< 1.5ns< 1.5ns
Repetition Rate0 - 50kHz0 - 50kHz0 - 40kHz0 - 40kHz
Spatial ModeTEM00 M2 < 1.2
Jitter< +/- 1ns

≤100uj  <4ns

ModelFQS-400-1-Y-1064FQS-200-1-Y-532FQS-100-1-Y-355
Wavelength1064nm532nm355nm
Pulse Energy @ 1kHz> 400µJ> 200µJ> 100µJ
Pulse Width< 5ns< 5ns< 4ns
Repetition Rate0-10kHz0-10kHz0-10kHz
Spatial ModeTEM00 M2 < 1.2
Jitter< +/- 1ns

≤200uj  10ns

ModelFQ-60-80-V-355FQ-200-80-V-355FQ-500-30-V-355
Wavelength355nm
Average Power> 60mW> 200mW> 500mW
Repetition Rate> 80kHz80 to 100kHz30kHz
Spatial ModeTEM00 M2 < 1.1
Jitter< +/- 3%


266nm



≤2uj  <2ns

ModelSPOT-10-500-1064SPOT-10-100-532SPOT-10-200-532SPOT-10-100-355SPOT-10-50-266
Wavelength1064nm532nm355nm266nm
Pulse Energy50µJ10µJ20µJ10µJ5µJ
Pulse Width< 2ns< 1.8ns< 1.5ns< 1.5ns
Repetition Rate0 - 50kHz0 - 50kHz0 - 40kHz0 - 40kHz
Spatial ModeTEM00 M2 < 1.2
Jitter< +/- 1ns



Dye Lasers

560-610nm

ModelDL-10-5DL-1-50
WavelengthIn range 560-610nm (Other dyes/wavelengths available)
Pulse Energy5µJ50µJ
Pulse Width< 2ns< 5ns
Repetition Rate0 - 10kHz0 - 1kHz
Jitter< +/- 1ns< +/- 1ns



OPO

Tunable MIR OPO


ModelOPO-50-500-3000OPO-1-100-3000
Wavelength1064nM
Max Energy500uJ100uJ
Spatial ModeTEM00, M2 <1.4
Wavelength2500-4000nm
Tuning>50nm within range. Range factory set
Repetition RateUp to 50hzUp to 1kHz
Pulse Width5-10ns
Beam Diameter~5mm at output aperture
Laser Head Size420mm x 184mm x 104mm
Power supply2U high 19 inch rack
ControlRS232
CoolingAir cooled
Power requirement100 - 240 VAC, 50 / 60 Hz Max 1000W

Tunable OPO 1700nm


ModelOPO-100-500-1700OPO-1-200-1700OPO-5-100-1700
Repetition Rate1-500Hz1Hz to1kHz1Hz-5kHz
OPO Energy500μJ200μJ100μJ
Pulse width~5ns~7ns~7ns
Power requirement100-240VAC, 50/60Hz, Max 600W
CoolingAir cooled (no water required)
DimensionsHead 420mm x 184mm x 104mm, PSU 2U x 19" case
OPO Wavelength

1650 – 1950nm tunable
Other wavelengths / ranges on request, please contact factory

Tunabaility>50nm within range. Range factory set

Visible OPO



ModelVOPO-200-20VOPO-1000-10
Max. Energy20μJ10μJ
Wavelength480-650nm450-670nm
Repetition Rate200HzUp to 1kHz
Pulse Width~3ns
Laser Head Size420mm x 184mm x 104mm
Power supply2U high 19 inch rack
ControlRS232
CoolingAir cooled
Power requirement100 - 240 VAC, 50 / 60 Hz Max 1000W




Raman Shift

500uj

Elforlight offer pulsed outputs at 1197nm through a Raman shifting process. Utilising the FQ series laser operating at 1064nm as a pump laser source a significant conversion efficiency is achieved through the Raman crystal.

ModelRS-1200
Pump Power1mJ
Pump Wavelength1064nm
Repetition Rate1kHz
Raman Output Power500µJ
Raman Output Wavelength1197nm
