CO2 Laser


Laser for surgery

Treatments with CO2 laser are characterized by a very successful healing process – there remain often no scars after treatments on the surface. By the wrinkle removal, skin resurfacing and streamlining takes place.


Less pain and fast cure with the C-Las

This carbon dioxide laser is an approved tool for an extremely fine cutting and removal of the histoid. The CO2 laser is securely established in all the specialist disciplines since many years. It is very welcome by many doctors in hospitals as well as in many outpatient clinics thanks to its reliability and versatility.
C-Las is flexible


Fast regeneration

High flexibility – simple in use and more possibilities with the Waveguide system.  The output power of  up to 25 watt and a big range of motion are the features of the CO2 fiber.
C-Las is an allrounder

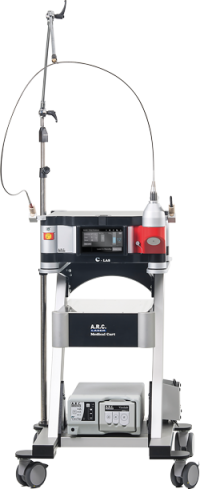

The Micromanipulator can be adapted to almost all the microscopes of your choice.
C-Las is innovative


Fiber or articulated arm?

The desicion depends on your needs. The waveguide technology allows a very flexible application of a laser with a high mobility level. The option with an articulated arm for colposcopy and micromanipulators.

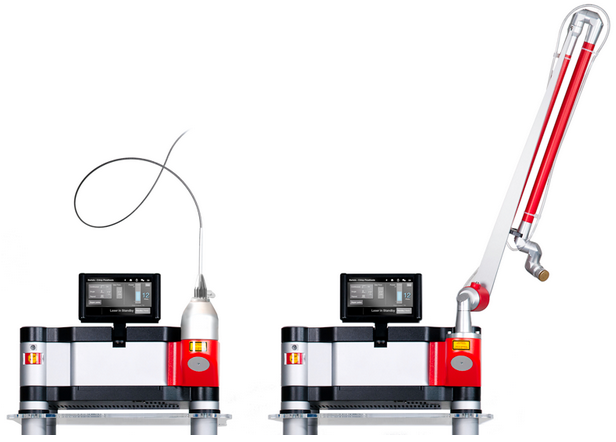

  • C-Las with a fiber (left)

  • C-Las with an articulated arm (right)

C-Las has two versions for different types of application

Simply good results

The latest technology which is represented in our Co2 laser allows a compact design. The location of the laser doesn´t matter, on the table or on the trolley, the C-Las suits in every surgery room.This design shows a strong character.
C-Las is precise

  • 2m or 3m long waveguide

  • Precise cuts with the universal handpiece

  • The weight of just 18 kg

  • Fast access to all the surgery programs

  • Large amount of accessories

Technical data:

LaserCO2 carbon dioxide
output power *
10600 nm
Output powermin. 25 watt with waveguide

min. 30 watt with articulated arm
Operating modequasi Gauss with waveguide
Pulslength, adjustableCW and pulsed
Beam guidanceflexible waveguide / articulated arm
Accessoriesuniversal handpiece/ scanner/ micromanipulator
Weight18 kg ready-to-operate
Dimensions491 x 478 x 200mm
Power supply100-260 V,50/60 Hz, 10A


A Scanner of the highest functionality

The Weasel Scanner is highly precise, fast and has a function to control laser beam in already programmed models. Going this way you can organize your surgery individually and remove the histoid selectively and accurate.

The wasel scanner for stapelotomie
The weasel scanner for dermatology

Diode Laser



Hybrid Laser Solution

Flexible - Versatile - User-friendly

The Laser-System with a variable penetration depth. Apply your laser beam in 2 different wavelength or a mixture from both. This means a high grade of flexibility for you as a surgeon and maximum Comfort for your patients.

Two laser beams through one fiber

The best from two worlds
… best in coagulation
… best in cutting


Hybrid 980 + 532 nm

  • One Handpiece - two laser beams

  • High Power IR 980 is brought together
    with a wavelength of 532 nm

  • Touch-Screen for both lasers

  • Elegant Design

  • Benefit from a broad range of
    affordable accessories from A.R.C.

980 nm

Eindrincgtiefe des 980 nm Lasers
Eindringtiefe des "roten" Lasers mit 980 nm Wellenlänge

The 980 nm wavelength offers precise cutting and protects the surrounding tissue. Postoperative pain is significantly reduced when compared to non laser procedures. Benefit from minimal or no requirement for anesthetics.
The system creates short pulses for minimal discomfort and improved patient compliance.

532 nm

Eindringtiefe des 532 nm Lasers
Eindringtiefe des grünen Lasers mit 532 nm Wellenlänge

532 nm is an established wavelength for a wide range of soft tissue applications.  The depth of penetration is limited for increased control while providing excellent hemostasis, vaporization and cutting power. This allows a more tolerable procedure and - whenever possible - convenience for the patient.
The superficial penetration of the 532 nm wavelength minimizes complications and offers modern treatment options.
Its incorporated selective ablation avoids epithelial damage.


Exact and reliable

The FOX from the A.R.C. Laser is the only calibrateable laser worldwide. No other system has such an advantage. FOX laser is the only one which can reliably provide you with the adjusted output power.
FOX sets new standards in security.

Training videos directly on the display

Training videos can be saved on the USB stick, which is part of the standard delivery of FOX. The videos come up on the display as soon as you choose it in the menu.
FOX is innovative

Green aiming beam

The green aiming beam of FOX laser improves the alignment and the exact sighting during the treatment.
FOX gives you a better view

Touch screen

The modern color touch screen with a very simple guide: you can set and change the adjustments intuitionally.

Mobile like your assistant

The convenient battery operation allows implementing treatments everywhere and every time. You can transport the FOX in the helpful case to every place you need.
FOX means flexibility

Technical data:

Wavelength – Output power*810 nm: 8 watt

940 nm: 4 watt

980 nm: 12 watt

1064 nm: 10 watt
Puls length, adjustable0,1 ms to cw
Puls interval0,1 ms to cw
Aiming beamgreen 532 nm, < 1 mW
Dimensions142 x 163 x 174 mm
Weight 1,2 kg operational
Power supply220 V or battery driven


Small, all-around and powerful

The Wolf - optional with 980, 1064 or 1470 nm - has a potential for very big amount of applications. The laser is designed for giving up to 18 watt output power.

Wins through qualitiy, design and art of processing.


This laser system provides the latest laser technology, which can be for example very useful at treatments with 1470 nm in endovascular surgery thanks to the latest donut fiber. The laser provides you with 18 watt in the version of 980 nm: it is ideal for surgical, orthopedic, dermatological or ENT treatments.
Wolf is innovative

Modern design

The Wolf rises over the competitors thanks to its features. We were able to reduce the dimensions and improve the handling due to using of long-lasting and reliable materials. It provides flexibility at the installation in clinics or surgery rooms.
Wolf is stackable

The best in its class

We offer advanced performance index in form, size and function on the basis of the Wolf housing. Thanks to its range of fibers from 200 to 600 µm and different handpieces, wolf allows you flexibility and versatility, which perfectly suits in every modern doctor’s office.
Wolf is space-saving

Easy in application

  • Color touch screen

  • Editable applications

  • Individual programming

  • Different fibersizes and applicators available

  • Plug & Play

Wolf is modern

Technical data:

WOLF980 nm1064 nm1470 nm
Wavelength laser980 nm1064 nm1470 nm
Display / Controlcolor touch screencolor touch screencolor touch screen
Output Power (Laser)18 W10 W8 W
Aiming Beam532 nm, ajdustable532 nm, adjustable532 nm, adjustable
Fiber couplingA.R.C. LaserA.R.C. LaserA.R.C. Laser
Treatment modeCW, pulsedCW, pulsedCW, pulsed
Power requirements19 V, 4,7 A19 V, 4,7 A19 V, 4,7 A
Dimensions10 x 24 x 20 (cm)10 x 24 x 20 (cm)10 x 24 x 20 (cm)
Weight2,8 Kg2,8 Kg2,8 Kg

Frequency doubled Nd:YAG / KTP -Laser


Reproductable results

The Nuvolas offers the whole 8 Watt output power on laser end. This powerful KTP laser guarantees more power than even needed to run the most diverse treatments. Nuvolas is one of the most powerful lasers for medical applications.

More power  - more possibilities


Wide application spectrum

The green laser can be applied in different fields of medicine.
Nuvolas means green

A unique technical standard

  • 8 Watt output power on laser end

  • Weight is just 23 kg

  • Removable display control

  • Easy usage

  • Different adjustments

  • Different handpieces and applications

Nuvolas is user friendly

The easy click connector does not require any turning of screws after it is in place. Click in- and it fits. The fibers are attractively priced, due to the plastic connector. Fibers are available in different sizes up to 600 µm.

Technical data:

Laser wavelength532 nm
Display / Controlcolor touch screen
Output Power (Laser)8 W
Aiming Beam635 nm, adjustable
Fiber ConnectionA.R.C. Laser
Operating ModesCW, pulsed
Coolingforced air
Power Requirements110 - 230 V / 50-60 Hz - 10 A
Dimensions (HxWxD)478 x 200 x 491mm
Weight (without case)23 Kg

Ophthalmic Systems

CITO 532

Cito 532nm SLT-Laser

redesigned from scratch: SLT Laser CITO 532

Modern technology "Made in Germany" redefines the SLT-Treatment.
Convincing technical refinements characterize this unique laser system on which we are proud: No heating on the housing and no UV light at the cavity. The life time of the CITO 532 is theoretically unlimited – stable and without loosing energy throughout the entire lifecycle.

Briefly: 2 years of research and development can be seen. An investment that is not at leastbeneficial for your patients.

SLT is a laser therapy which may replace medication for the treatment of open-angle glaucoma (OAG). Laser Selected Trabeculotomy is a gentle and repeatable laser treatment. It promotes cellular regeneration of trabecular meshwork without any medication.

  • No harm for your patients trabecular meshworc (TM)

  • No side effects

  • Well known treament for open angle glaucoma (OAG)


CITO 532: no compromises.

  • Designed for the anterior segment

  • Highest repetition rate thanks to our Rapid Procedure Rapid-Trigger-Mode (RTM)

  • Optional head-up-display

  • No high voltage inside - No UV-light on the cavity

  • < 2% Deviation: Highest pulse-to-pulse stability for REPRODUCIBLE RESULTS

Unique innovations are the Rapid-Trigger-Mode (RTM) for a fast repetition rate and the optional head-up-display: the selected treatment power is always in view.

World leading technology for Ophthalmology

Designed for the anterior segment

Specially coated optics with parallel or convergent tube provide a detailed view into the anterior segment

Die SLT ist a natural way to reduce IOP by stimulating the Trabecular Meshwork with its specific "low level laser beam"


New Design - New Features

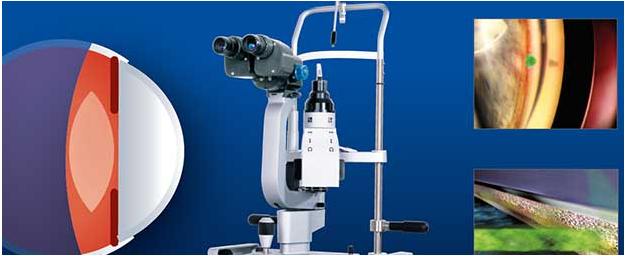

Set-up of the slit lamp with head-up display

Slit lamp PCL5

Benefit from specially coated optics with parallel or optionally a convergent tube which provides a detailed view into the anterior segment.

Head-up Display
Check all the necessary values at a glance - without taking the eyes from the eyepiece. The display follows each alteration of the energy level. The overall input energy is displayed in addition.


The CITO 532 without compromises.  Redesigned from scratch by A.R.C. Laser.


laserQ-switched 532 nm
frequency doubled Nd:YAG
energy0.2 to2.0 mJ, quasi continuous
spot diameter400 μm in aiming beam focus
repetition rate, pulse> 10 Hz
pulse width3 ns
aiming beamrote Diode 635 nm / 1 mW, variable
laser protection filterpermanent
treatment angle3,2°
Laser pathinside the housing
arrangement of laser sourcecentral with the microscope
weight53 kg with slit lamp
space needed0.5 m2
power requirements100 bis 240V 50/60 Hz, 600 Watt
laser class3b | 532 nm, E = 2,5 mJ
aiming beam: 635 nm, P < 5 mW

Alterations of the described features or pictured features are possible. Please keep updated on the current status before ordering.

subject to change without notice. © A.R.C. Laser 2016.


Outstanding for photocoagulation

The Classic- a star under all available coagulation systems. Precision lenses and a shifted coaxial couple laser stands for a masterful performance development.

With up to 1, 5 Watt output power, a lot of several applications on the retina can be realized. The big coloured display gives a clear view even from the side.

  • Neutral colored eye protection filter

  • Hand triggering possible

  • Battery operation possible

  • LIO - Laser Indirect Ophthalmoscope


The Classic – Retina Laser combined with two different slit lamps

Classic + PCL5 ZL

  • Classical design - illumination beam path over prism

  • LED or halogen illumination

  • Single hand operation

  • Compact design

  • In combination with Nd:YAG Laser

The Classic is compatible

Classic + PCL5 SHL

  • Illumination from above

  • Top notch optical quality

  • Coaxility of illumination / laser beam / monitoring optic

The Classic is modern

Technical data:

LaserKTP - 532 nm (green)
Output power1,5 W at fiber end
Pulse length10 ms - cw
Pulse pause100 ms - 1.000 ms
Repeat frequency1 to 9 Hz
Laser beam 635 nm, < 1 mW
Utility space250 x 190 x 52 mm
Weight3,3 kg - complete
Supply connection rechargeable battery  / 90 - 230 VAC
Laser outputs 2 fiber ports
Accessoriesindirect ophthalmoscope / endo probes


Precise and Reliable

The FOX from A.R.C. Laser is worldwide the only laser that can be calibrated. No other system has this advantage. Only the mobile FOX Laser offers you reliably the setted output power.

FOX sets standards in safety


Training videos directly on the display

Trainings and schooling videos can be stored onto the supplied memory stick from A.R.C. Laser. The videos are shown on the display, as soon as you select the data from the menu.
FOX is innovative

Green laser beam

The green laser of the FOX laser improves the orientation and the exact aiming during course of treatment.
FOX is easily readable


The modern color touch display with an easy user handling: changing and customizing settings intuitively.
FOX is intuitive to use

Mobile like your assistant

The comfortable battery use allows a laser treatment any time any place. With the handy transport case you can take your FOX everywhere you like.
FOX stands for flexibility

Technical data:

Wavelength – output power *810 nm: 8 Watt

940 nm: 4 Watt

980 nm: 12 Watt

1064 nm: 10 Watt
Pulse length, adjustable0,1 ms to cw
Pulse interval0,1 ms to cw
Laser beamgreen 532 nm, < 1 mW
Measurements BWH142 x 163 x 174 cm
Weight1,2 kg operational

Powerbuilt-in rechargeable battery


Capsulotomy, Iridotomy

The Q-Las gives you the possibility to treat secondary cataract and the wide-angle-glaucoma. It links economy, ergonomics, and longevity in a very innovative way.

  • Outstanding focusing with the three part laser beam

  • Combination with Trabeculas / Classic

  • Laser beam and slit illumination are coaxial


Tristar focus

The superior concept

The dynamic focus from A.R.C. Laser supports you effectively. The unique Tristar Focus is trend-setting. With only just one laser spot you can calmly trigger the laser. We call that intelligent laser technology.

Combined systems

The Q-Las can be combined with the Classic retina laser and the glaucoma laser Trabeculas. Furthermore is the Q-Las Laser available with 2 different slit lamp types.

Q-Las + PCL5 ZL

  • With a classical YAG slit lamp

  • Illumination radiation channel through prism

Q-Las + PCL5 SHL

  • Light source at the tip of the slit projector

  • High end optical quality

Technical data:

Wavelength1064 nm
Pulse length < 4 ns
Aiming beamdiode red / 3 beam
Outout0,3 - 10 mJ, smooth spot
Size diameter in the air < 10 µm
Angel, laser lens16°
Burst mode 1 - 2 - 3 pulse, 20 µs pulse pause
Repeat frequency2,5 5 pulses per second
Mode structurgauß
Focus shift2 stepped - 125/250 µ - posterior
Input tension 230 V, 50 Hz, 3A / 110 V, 6 A


Cetus Nano-Laser Kataraktchirurgie

Cataract surgery with the Nano-Laser

  • 100 % Photofragmentation

  • 100 % no ultrasound

  • 100 % single use hand pieces

  • Your most affordable choice to enter the
    prestigious PREMIUM laser segment.

Pulses with 4 Nanosekonds and 3 to 7 mJ per pulse will crack the nucleus.

Cataract surgery becomes 100% laser-surgery with the CETUS.

Nano-Laser Surgery means PREMIUM

  • Do you offer premium lenses within your portfolio?

  • Do you want to offer a premium service with a laser option?

  • Do you want to avoid the expense and time consuming effort with femto laser assisted Cataract Surgery?

The Nano-Laser can be operated with a femto laser to do the rhexis, or without the expensive femto laser. In either case, you benefit by performing full laser cataract surgery.

Easy OR Integration

The A.R.C. Nano-Laser is very compact meaning it needs only a fraction of a Femto‘s space.


  • The Nano-Laser is easily adapted to your Phaco Ultrasonic system by simply plugging in the cutters tubing.

  • Inexpensive single-use hand piece eliminates the need for cleaning, sterilization and tuning of the phaco hand piece.

  • Complete single-use-sets are available.

  • The Nano-Laser is maintenance free.

Upgrade your Phaco with a laser system as easy as 1-2-3

Nano-Laser im OP

Nano-Laser ist gentle, safe and easy to use

  • Ultrasound energy has been implicated in the pathogenesis of endothelial cell loss.

  • This manual laser treatment creates no thermal gradient.

  • The laser avoids mechanical side effects caused by the oscillating phaco tip – minimum risk for a capsular rupture.

  • Eliminates the risk of cross contamination - Single-use hand pieces guarantee highest sterility.

  • LOCS P- and -C criterias can be fulfilled.

No more expensive hand pieces.
No more cross contamination.
No more need for a Femto.

Lasers attract patients

With the introduction of Lasik, laser became the number one tool in ophthalmology and patient satisfaction.

  • Patients have never been so highly attracted by any other means of surgery.

  • Patients demand laser surgery - especially in ophthalmology.

  • Lasers are advanced technology and contribute to a high value image of your practice.

  • There is no other treatment with the appeal of laser based surgery.

  • It’s only a small step for you to get started with PREMIUM laser surgery.


The A.R.C. Nano-Laser emulsifies the cataract with pulses that are gentle and effective.

  • No moving parts,

  • No temperature gradient

  • and Cataract-Laser-Surgery is yours upon request.

Inexpensive, single-use, lightweight laser hand piece eliminates the need for cleaning, sterilization and tuning of the heavy phaco hand piece.

Nano-Laser coaxial hand piece

Coaxial with two different sleeves allows small incisions of 2.2 or 2.6 mm.
Your other hand assists with your manipulator. Coaxial fluid management works the same way as conventional ultrasound phaco.

The Nano-Laser surgery benefits from an extremely little energy into the eye.

Cetus Nano-Laser Handstück


Max. Energy10mJ
Operating modepulsed
Shot frequency up to10Hz
Pulse energy3mJ to 10mJ
Pulse length5ns
Control7“ TouchScreen
Power requirements

110-240Vac, 650VA, 50 to 60Hz

Dimensions135*478*421mm (device housing)

VARIO - The Alternative

VARIO - The best combination, propably.

Maximum Performance: VARIO

This is how we understand a combined system. Usually one has the idea to join all lasers in one housing. We think that our crossover from diagnostic and treatment for the anterior and posterior eye segment is propably the one with the most advantages.

Our solution is called VARIO:

  • Perfect vision throug the Optics, for anterior and posterior.

  • Full mobility for your patient - also with wheelchair.

  • 2 slitlamps included.


You need a YAG Laser and a Laser for Photocoagulation and a laser to perform SLT?

  • Designed for the anterior and posterior segment

  • Modern Laser systems on one table

  • Optional head-up-display

  • Spacious legroom for wheelchair patients

World leading technology for Ophthalmology


Designed for anterior and posterior eye segments

Specially coated optics with parallel or convergent tube provide a detailed view into the anterior segment or the posterior segment.


Ideal for anterior and posterior segment

Slit lamp PCL5
Benefit from specially coated optics with parallel or optionally a convergent tube which provides a detailed view into the anterior segment.

Head-up Display
Check all the necessary values at a glance - without taking the eyes from the eyepiece. The display follows each alteration of the energy level. The overall input energy is displayed in addition.


Combine your lasers - get the best out of the available space



A.R.C. Slit lamps convince with brillant looks and highest quality. Made in Germany

The PCL5 is slitlamp that is a precision instrument for reliable diagnosis  for your practice. A premium product where you can count on. High user comfort paired with brilliant stereoscopic lenses for a large depth of focus and impressing color fidelity – ideal for the posterior and anterior eye section.

  • The slit (high light yield) is easily adjustable with the hand

  • IR-& UV filters are standard

  • 5-times magnification

  • Change from LED to Halogen in you practice

PCL5 SHD is diagnosis for a faire price

Technical data:


Gap width (at 180°)0 - 8 mm continuous
Gap height0,5 - 8 mm continuous
Circle of light fields0.2, 1, 2, 3, 4, 6, 8 mm Test mark with fixation
Gap rotation± 90° (0-180°)
Adjustment of lightinghorizontally ± 90°
Filterblue, red-free (green), gray (10%).
UV and heat filters are integrated
Lightinghalogen 6 V, 20 W
0 lux bis 600,000 lux (Halogen)

optional: LED 14 V, 5 W
Eye protection filteroptional
Electrical connection values110 V - 240 V 50/60 Hz
Weight12.7 kg
Stereo microscope
Stereo angle10°
Adjustable eyepieces± 8 dpt
Amplifications6.3x / 10x / 16x / 25x / 40x
PD52 to 78 mm
Pivoting of the microscope axis horizontal± 30°


Gap width (at 180°)0 - 16 mm continuous
Gap height1 - 16 mm continuous
Circle of light fieldsØ: 1 mm test brand
Gap rotation± 90° (0-180°)
Adjustability of the
horizontally ± 90°
Filterblue, red-free (green), gray (10%).
UV and heat filters are integrated
Lightinghalogen 6 V, 20 W
0 lux bis 600,000 lux (Halogen)

optional: LED 14 V, 5 W
Eye protection filteroptional
Electrical connection values110 V - 240 V 50/60 Hz
Weight12.7 kg


Our Dye EmunDo®

EmunDo® and FOX  –
Breakthrough in Photothermal Therapy

More than 75% of adults suffer from periodontitis (PD) and other bacterial infections of the gums or the oral cavity. Attempts to mechanically clean the bleeding gums may lead to the transfer of bacteria in the mouth into the bloodstream (bacteremia) potentially causing the bacteria to spread throughout the body.

The consequence: Unwanted bacteria may result in cerebrovascual diseases.
Due to the stress on the immune system, the risk of diseases of the arteria carotis, heart attacks, arthritis, diabetes and premature births is rising. This clearly shows that the PD bacteria is more harmful than smoking, obesity or high cholesterol levels.

Now, it is possible to reduce or totally avoid the use of antibiotics and eliminate all of the associated health risks for patients with periodontitis. Independent of antibiotic resistance, EmunDo® selectively destroys the relevant PD-Germs.

EmunDo® Therapy reaches germs  even in deep gingival pockets. Patients that undergo an extensive, repeated mechanical cleaning now have the chance to lose less root substance. Your patients will appreciate  the lower hypersensitivity.

EmunDo & FOX III - Flyer (PDF)

分享到 :
