EdgeWave GmbH(德国)

http://www.edge-wave.com

地址:
Schumanstr. 18B 52146 Würselen Germany
电话:
+49 2405 4 18 60
传真:
+49 2405 41 86 33
产品:
半导体泵浦激光器  高功率激光  激光  锁模激光器  纳秒激光器  皮秒激光器  脉冲激光器  调Q激光器  固体激光器  超快激光器

公司简介

EdgeWave GmbH位于德国北莱茵-威斯特法伦州的亚琛市,成立于2001年,是世界尖端技术InnoSlab技术的先驱和当今世界这个新激光技术领域的领先者。其产品服务范围包括固体激光器、半导体激光器和外围元器件的研发、生产、销售以及提供激光在应用和设备方面的技术支持。作为该公司的核心技术,InnoSlab技术已被广泛地应用于光伏产业、玻璃加工业、陶瓷加工业、半导体工业、汽车制造业、机械制造业、模型加工业、家具制造业以及微加工、广告技术、医疗技术、分析技术和科学研究领域。


产品列表

SHORT PULSE LASERS

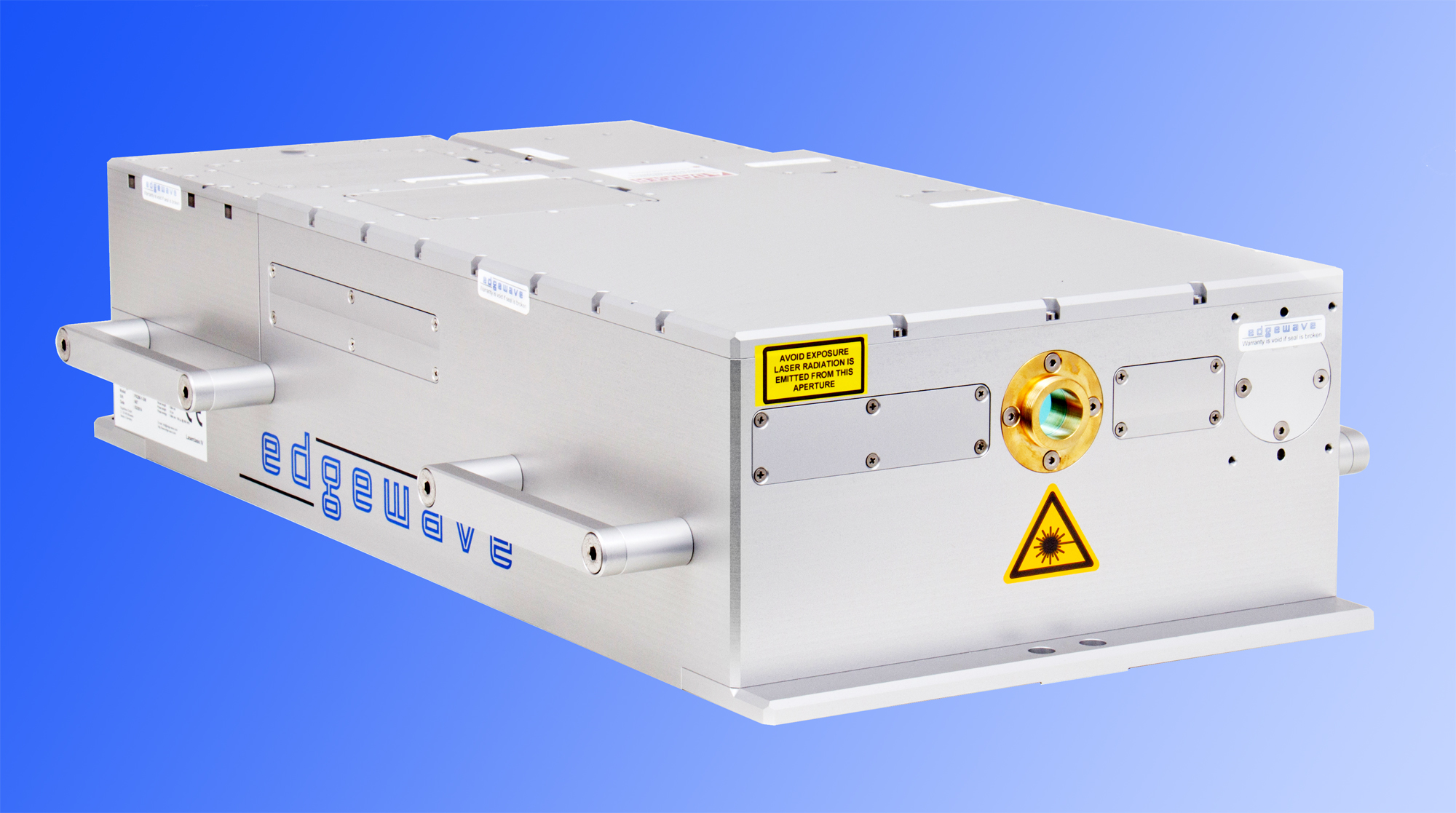

EdgeWave’s short pulse lasers are diode-pumped and q-switched solid-state lasers, based on the unique InnoSlab laser technology.

Our standard short pulse laser product encompasses electro-optical Q-switched InnoSlab lasers with various laser medium, pulse energy and output power and a choice of wavelengths:

·         beam quality: M² < 2

·         pulse energy up to 60mJ

·         pulse length down to 4ns

·         peak power up to 7MW

·         pulse rep. rate up to 100 kHz

·         average power up to 600W

·         wavelength 1064, 532, 355, 266nm


A distinguished and enabling feature of InnoSlab lasers is the tailored beam profile: from circular Gaussian, through line shaped one dimensional Top-hat to square two dimensional Top-hat.

BX-SERIES

BX-series is an electro-optical Q-switched InnoSlab laser with low to medium power and pulse energy. Passively cooled diode lasers are used for increased reliability.

·         beam quality: M² < 2

·         pulse energy up to 8mJ

·         pulse length down to 4ns

·         peak power up to 1MW

·         pulse rep. rate up to 150 kHz

·         average power up to 80W

·         wavelength 1064, 532, 355, 266nm


Data sheet


IS-SERIES

IS-series is an electro-optical Q-switched InnoSlab laser with medium to high power and pulse energy:


·         beam quality: M² < 2

·         pulse energy up to 50mJ

·         pulse length down to 1ns

·         peak power up to 10MW

·         pulse rep. rate up to 150 kHz

·         average power up to 400W

·         wavelength 1064, 532, 355, 266nm


Data sheet



HD-SERIES

HD-series is an electro-optical Q-switched InnoSlab laser with high power and pulse energy:

·         beam quality: M² < 2

·         pulse energy up to 60mJ

·         pulse length down to 4ns

·         peak power up to 7MW

·         pulse rep. rate up to 150 kHz

·         average power up to 600W

·         wavelength 1064, 532, 355, 266nm


Data sheet


ULTRA SHORT PULSE LASERS

EdgeWave’s ultra short pulse lasers are diode-pumped and mode locked solid-state oscillators and amplifiers. The amplifiers are based on the unique InnoSlab laser technology. Through an optimal combination of crystal shape, cooling and resonator design, ultra short pulse lasers with InnoSlab amplifiers poss special qualities:

  • Compact setup

  • High efficiency and high amplification factor

  • High beam quality

  • Scalability for multi kW

PX-SERIES

PX-series is a pico second oscillator and amplifer system based on InnoSlab technology with following power spec with medium to high power and pulse energy:


·         beam quality: M² < 1.5

·         pulse energy up to 1000µJ

·         typical pulse length 10ps

·         peak power up to 100MW

·         pulse rep. rate up to 50MHz

·         average power up to 400W

·         wavelength 1064, 532, 355, 266nm


Data sheet



FX-SERIES

FX-series is a pico second oscillator and amplifer system based on InnoSlab technology with following power spec with medium to high power and pulse energy:


·         beam quality: M² < 1.5

·         pulse energy up to 100µJ

·         typical pulse length 600fs

·         peak power up to 160MW

·         pulse rep. rate up to 50MHz

·         average power up to 200W

·         wavelength 1030, 515, 343nm


Data sheet


技术能力

·         InnoSlab Laser

·         InnoSlab amplifier

·         Micro glass processing


应用领域

·         Photovoltaic

·         Glass processing industry

·         Scientific applications
