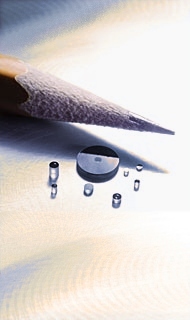

SINGLET LENSES

Configurations available:
Plano Convex, Plano Concave, Bi-Concave, Bi-Convex, Positive and Negative Meniscus

• Optical and filter glasses

• Spherical and cylindrical radii

• Submillimeter curvatures and diameters

• Exceptional centration

• Antireflection coatings designed to your specification

• Careful control of surface curvature

• Standard curvature list is available upon request

CEMENTED MULTI-ELEMENT LENSES

Doublets (achromats) and triplets can be cemented and accurately aligned and documented.
The centration of each element is verified before and after cementing.  Submillimeter curvatures and diameters are within our capability.

ACHROMATIC LENSES (DOUBLETS)

The most common type of achromat is an achromatic doublet, a compound lens consisting of two elements cemented together. These precision, micro-miniature optical components can be custom engineered, ground and polished to micron tolerances.

• Optical and filter glasses

• Spherical radii

• Submillimeter curvatures and diameters

• Exceptional centration

• Antireflection coatings designed to your specification

• Careful control of surface curvature

The centration of each element is verified before and after cementing. Ideal for use in optical imaging applications.

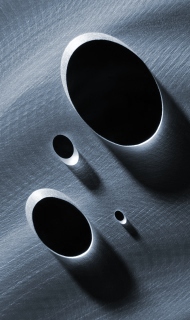

MIRRORS

Bern Optics manufactures high quality mirrors.  Available with dielectric, metallic or hybrid coatings to meet the requirements of your unique application.
Our mirrors can be produced ...

• from a variety of substrate materials

• in all kinds of shapes

• as first or second surface reflectors

• with curved or plano surfaces

• held to micron tolerances

• smaller than a millimeter

WINDOWS

Bern Optics manufactures exceptionally accurate instrument windows. Available with a variety of reflective or anti-reflection coatings to meet the requirements of your unique application. Our windows can be produced using filter or optical glasses, with or without chamfers.

• Micron tolerances

• Submillimeter diameters available

• Custom shaped windows

• Prototype and production

• No minimum order

APERTURES

Bern Optics coated opaque apertures can be precisely located.  Available with a variety of reflective or anti-reflection coatings to meet the requirements of your unique application, they can be produced using filter or optical glasses, with or without chamfers.

• Aperture features can be held within micron tolerances

• Precision location of apertures within microns of design parameters

• Circular apertures available

• Custom-shaped apertures available

• Submillimeter diameters available

• Prototype and production

Bern Optics can also accurately cement apertures to plano convex lenses.

PRISMS

Bern Optics produces a wide variety of accurately angled and dimensioned prisms.
Also available:

• Optical wedges (of any given angle)

• Beam splitter cubes

• Parallel plates

• Cemented, multi-element prisms

• Custom configurations including plano, spherical or cylindrical faces

Available in standard optical and filter glasses, Bern Optics prisms can be coated to suit the needs of your specific application.

• Micron tolerances

• Submillimeter dimensions available

• Prototype and production

• Minimal edge chipping

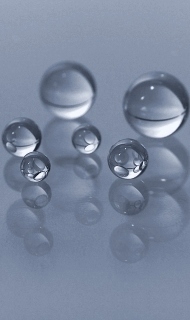

BALL LENSES

Bern Optics produces optically polished spheres from standard optical and filter glasses.

• Micron tolerances

• Specializing in balls under 3mm

• Small quantities

• No minimum order

• Expedited delivery

CUSTOM OPTICS

In addition to the more standard offerings shown in the drop-down Products menu, Bern Optics has extensive experience and expertise in producing customized optics in a variety of optical glasses, with or without specialized coatings, to meet the needs of your specific applications.

• Lenses

• Prisms

• Filters

• Windows

• Mirrors

• Modified catalog items

• Special components with combinations of plano, spherical and cylindrical surfaces

• Submillimeter dimensions

• Production and prototype
