产品:
测试设备  二极管激光器  激光

公司简介

Beratron GmbH is located in the Fraunhofer Institute of Laser Technology in the Euregio Aachen, one of most important R&D Institute in the laser technology field in the world. With this advantage Beratron is best positioned to enhance technology. Thus our customer benefit from the advantage of location.


产品列表

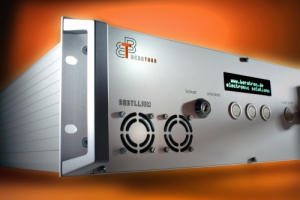

Frontview Astatine and BerylliumAstatine and Beryllium

• up to 500 Amps pulse-current
• fully featured
• 19 inch enclosure
• Key-turn system
•
Astatine max. 500 Watt, Beryllium max. 1500 Watt
•
Astatine air-cooled, Beryllium water-cooled
• Applications: Research and Development, Production
• USB, EIA232 and CAN-Bus

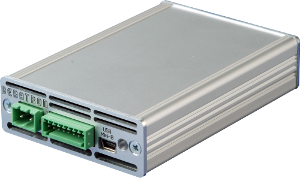

Type 0824Type 0824

• up to 300 mA
• USB- and analogue interface
• TEC up to 1,5 A / 3,5 V
• supply 8 - 30 V DC
• for DIL 14 or Butterfly 14
• Service: mounting of the diode is done by Beratron

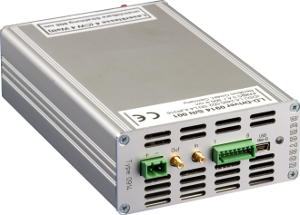

Type 0914Type 0914

• 3.3 A, 5.8 A, 7.5 A, 10 A or 15 A
• rise-time < 1 µs
• USB- and analogue interface
• internally mounted diode with fiber-connector
• TEC up to 15 A / 24 V, equates to ca. 8 W at ΔT=10°C to environment
• suply 24 V/DC
• suitable for many fibre-coupled diodes
• Service: mounting of the diode is done by Beratron

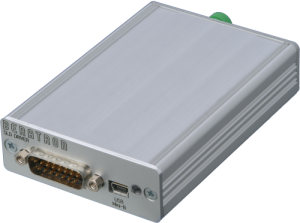

CW Driver Type 0910CW Driver Type 0910

• 30 A CW
• 24 V/DC supply
• USB
• analoguee interface
• air-cooled



Development
customized solutions


If our standard-devices do not fit your personal requirements, please contact us. The Beratron GmbH offers customized solutions.

• customized drivers for you application
• OEM or with enclosure
• optional TEC
• highly accurate temerature regulation
• production possible
