Beam Imaging Solutions (BIS) is dedicated to new innovative imaging solutions for particle and photon (UV, X-ray) beams and offers a wide range of imaging products to fit your particular application and budget. Our products range from stand alone phosphor screens to high resolution beam imaging systems with 2-D and 3-D imaging capabilities. We specialize in microchannel plate (MCP) and phosphor screen based imaging arrays for imaging ion, electron and neutral beams as well as X-rays and UV. Microchannel plate detector assemblies are also available. Beam Imaging Solutions also offers ion beam deflectors (quadrupole) , faraday cups and ion sources.
产品列表

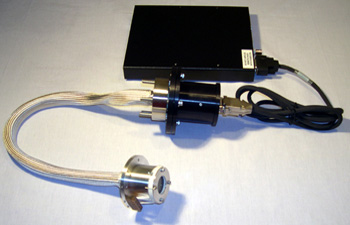

HRBIS (High Resolution Beam Imaging Systems)
High resolution multi-configurable coherent fiber-optic based systems with combination microchannel plate (MCP) and phosphor screen type imaging of electron, ion and neutral beams, as well as X-rays and UV. Two- and three-dimensional beam profile analysis achievable with multi-configurable systems.

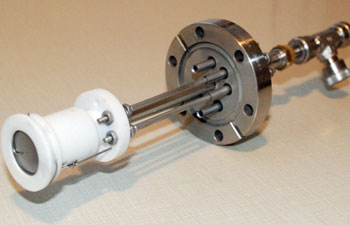

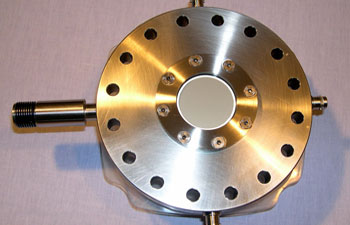

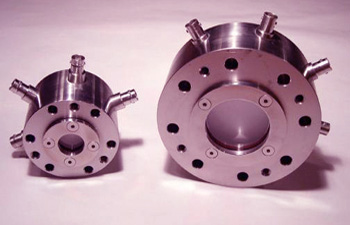

BOS (Beam Observation Systems)
Combination microchannel plate (MCP) with phosphor screen type imaging assemblies are available separately or are incorporated into standard size vacuum flanges with viewports for quick and easy profile analysis of electron, ion and neutral beams, as well as X-rays and UV.

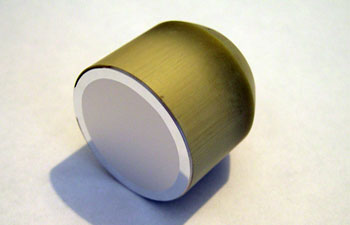

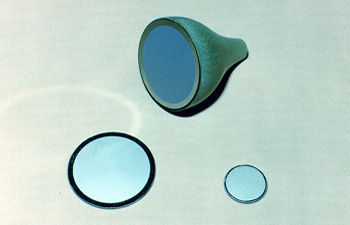

Phosphor Screens
Custom and standard size and type phosphor screens are available for a wide range of imaging applications.

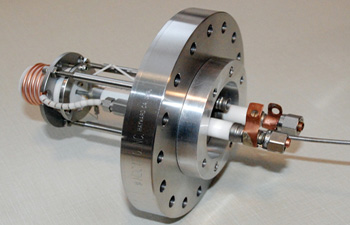

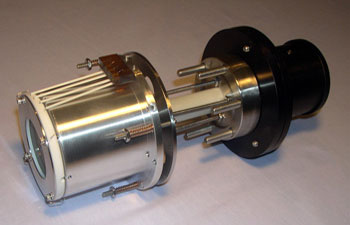

Ion Sources
RF and DC (filament) ion sources compatible with the Colutron® ion gun systems.

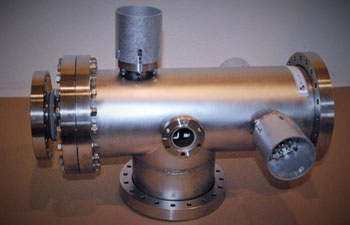

Ion Guns
Colutron® type ion gun systems (1eV – 20keV).

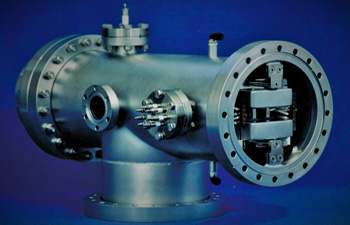

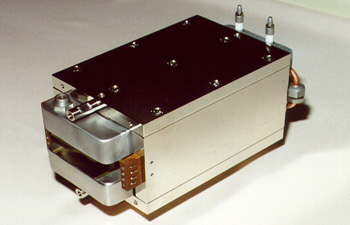

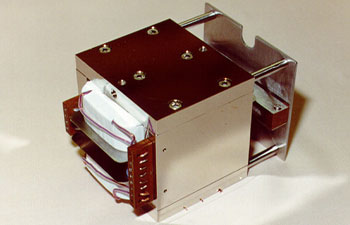

Velocity Filters
E X B type modified Wien type filters with electrostatic guard rings to eliminate the cylindrical focus effect of a standard Wien filter.

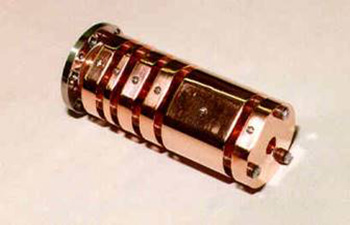

Ion Beam Decelerators
Menzinger type ion beam decelerators.

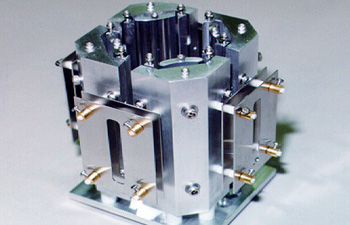

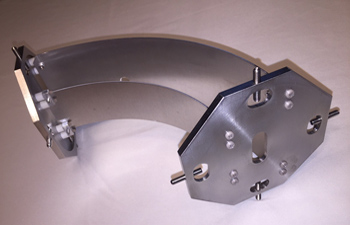

Ion Beam Deflectors
Two 90-degree ion beam bending deflectors are offered. A bending quadrupole with focus lens and a concentric parallel plate type system.

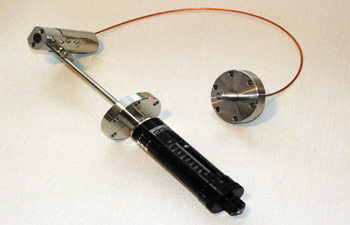

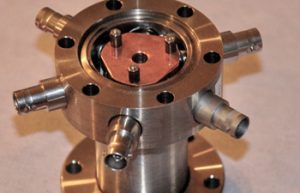

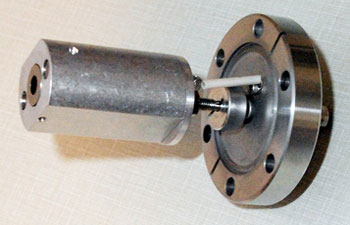

FC-1 Faraday Cup
Flange mountable magnetically shielded Faraday cup with electron screening, and low energy charge exchange ion suppression. Optional FC-/OPT01 Faraday cup with push pull feedthrough is also available.
