公司简介

德国H+P SPECTROSCOPY公司专注于生产商品化的XUV光谱仪,可提供1nm-80nm的极紫外光谱仪。


技术能力


产品、定制、应用:

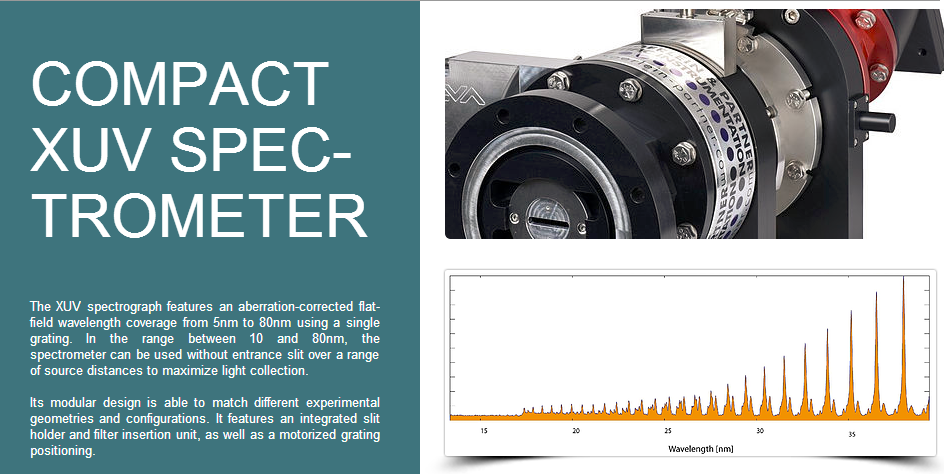

Characteristics

  • flat-field grazing-incidence spectrograph

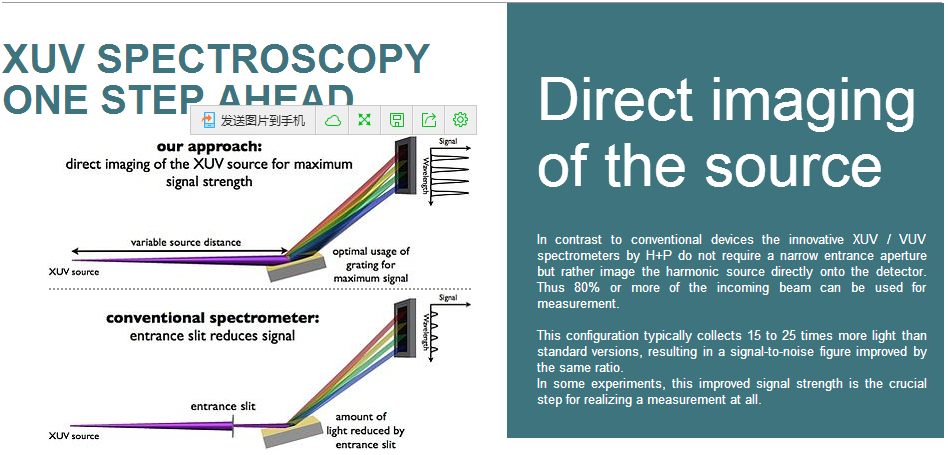

  • proprietary H+P design for direct source

    imaging and maximum light collection



  • XUV wavelength range from 5 to 80 nm

  • optional wavelength range 1 to 5 nm

  • VUV version range 40 to 200 nm

  • three different geometry options

  • operating pressure <10^-6 mbar



  • modular, adaptable design

  • turn-key, hassle-free operation


Customization

Our goal is to supply the perfect XUV / VUV spectrometer for your application. We

customize every spectrometer to exactly

match the desired application.



This includes e.g.:

  • interfacing to experimental chambers

  • adaption of the source distance

  • integration of customer-supplied detectors

  • user-defined filter mounts



Detection

Our spectrometers can be operated with all

state-of-the-art detection systems:

  • x-ray CCD cameras for highest resolution, large dynamic range and absolute signal

    strength

  • large-area MCPs for broadest wavelength coverage and gated / intensified detection



Special solutions

We offer specialized solution for almost

every application, including:

  • non-magnetic instruments

  • special housing geometries, in-chamber

    solutions

  • EMP-protection

  • special mounting situations

    (e.g. upside-down)

  • UHV configurations


Applications

  • high harmonic generation (HHG) radiation

  • high intensity laser-matter interaction

  • undulator and free-electron-laser (FEL)

    radiation

  • magnetically confined plasmas

  • fusion research

  • characterization of line-emission sources

  • EUV source calibration

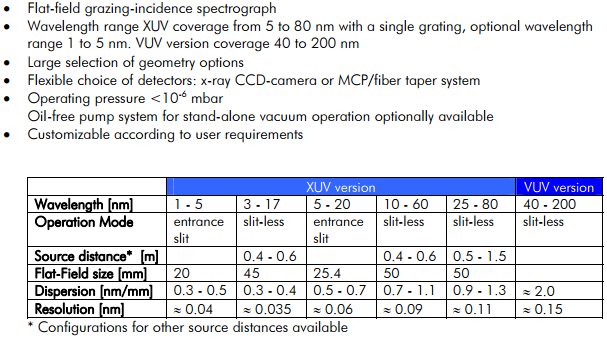

性能参数
