公司简介

美国Discovery Semiconductors公司成立于1993年,是超快制造、高光功率InGaAs光电探测器、光纤射频接收器、平行光接收器行业的领军者。


产品列表

10G InGaAs Photodiodes and Optical Receivers - Fiberoptic Modules

InGaAs PIN Photodiodes

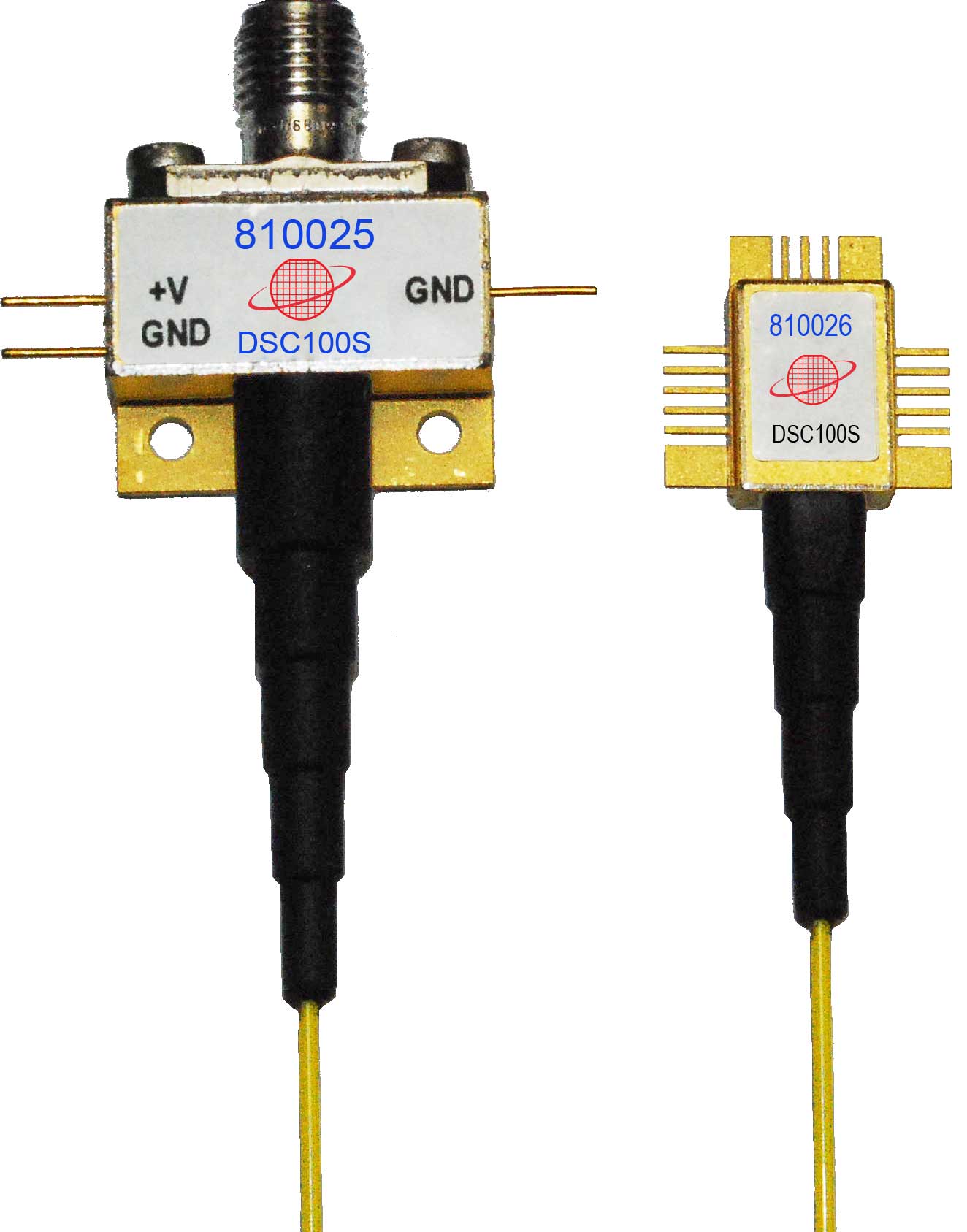

InGaAs Photodiodes: 6 GHz, Highly Linear, Optical Power Handling

  • High Optical Power Handling

  • Low Group Delay

  • Low Harmonic Distortion

  • Lowest PDL (typical 0.05 dB)

  • Useable spectral wavelength range of 800-1650 nm

  • Telcom, Military and Space Qualified

(PIN or APD) + TIA Optical Receivers

10 GHz Linear PIN + TIA Optical Receiver

  • Low-Noise, High-Gain

  • Low Group Delay

  • Lowest PDL (typical 0.05 dB)

  • Useable spectral wavelength range of 800-1650 nm

(PIN or APD) + TIA + LIM Digital Optical Receivers

DSCR603-10 Gb/s High-Sensitivity Limiting PIN + TIA Optical Receivers

  • High Sensitivity

  • Differential Outputs for Common Mode Rejection (R602PIN or R602APD)

  • Lowest PDL (typical 0.05 dB)

  • Useable spectral wavelength range of 800-1650 nm

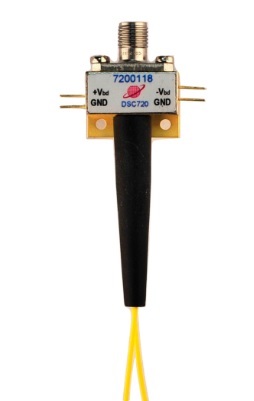

Balanced PIN Photodiodes

Balanced PIN Photodiodes

  • Lowest PDL (typical 0.05 dB)

  • CMRR exceeds 30 dB

  • Useable spectral wavelength range of 800-1650 nm

  • RIN and ASE noise cancellation

  • Suppression of Even Order Harmonics

  • High optical power handling

Balanced PIN + (TIA or LNA) Optical Receivers

Balanced Photoreceivers with 14 GHz Bandwidth or 20 GHz Bandwidth    Balanced Photoreceivers with 14 GHz Bandwidth or 20 GHz Bandwidth

  • High Common Mode Rejection

  • Lowest PDL (typical 0.05 dB)

  • Useable spectral wavelength range of 800-1650 nm

  • RIN and ASE noise cancellation

  • Optical Delay Line Option available


25G Datacom InGaAs Photodiodes and Optical Receivers ----- CDR & PAM4

PIN + TIA Optical Receivers

DSC-R411: 25G/40G Limiting InGaAs Optical Receiver 850nm-1550nm with CDR
DSC-R411 Pizza Lab Buddy

  • Linear and High Gain Versions

  • Differential or Single-Ended RF Outputs

  • Lowest PDL (typical 0.05 dB)

  • Useable Spectral Wavelength Range of 1064-1650 nm

Quad PIN + TIA Optical Receiver Lab Buddy

DSC-R801 Lab Buddy Array Instrument

  • Lab buddy with four PIN + TIA channels

  • High responsivity at 1310nm, 1550nm & L-band

  • High single-ended conversion gain of 550 V/W

  • Sensitivity of -12 dBm at 25.8 Gb/s

  • Overload of +4 dBm at 25.8 Gb/s

  • Very low power dissipation of 200 mW per channel


40G InGaAs Photodiodes and Optical Receivers - Fiberoptic Modules

InGaAs PIN Photodiodes

DSC10ER Lab Buddy    Ultra-fast InGaAs PIN Photodiodes to 60 GHz

  • High Optical Power Handling

  • Low Group Delay

  • Low Harmonic Distortion

  • Lowest PDL (typical 0.05 dB)

  • Useable Spectral Wavelength Range of 1064-1650 nm

  • Telcom, Military and Space Qualified

PIN + TIA Optical Receivers

DSC-R401HG Lab Buddy. For busy test stations or student labs, where users of different experience levels might be handling high value opto-electronics that are easily damaged by mishandling, order your photodiode to be mounted in the Lab Buddy.    DSC-R401HG: 20 GHz Linear InGaAs Optical Receiver

  • Linear and High Gain Versions

  • Differential or Single-Ended RF Outputs

  • Lowest PDL (typical 0.05 dB)

  • Useable Spectral Wavelength Range of 1064-1650 nm

Balanced PIN Photodiodes

DSC730 and DSC740 Lab Buddy. For busy test stations or student labs, where users of different experience levels might be handling high value opto-electronics that are easily damaged by mishandling, order your photodiode to be mounted in the Lab Buddy.    DSC730/DSC740:Balanced PIN Photodiodes

  • Lowest PDL (typical 0.05 dB)

  • CMRR Exceeds 30 dB

  • Useable Spectral Wavelength Range of 1064-1650 nm

  • RIN and ASE Noise Cancellation

  • Suppression of Even Order Harmonics

  • High Optical Power Handling

Balanced PIN Photoreceivers

DSC730 and DSC740 Lab Buddy. For busy test stations or student labs, where users of different experience levels might be handling high value opto-electronics that are easily damaged by mishandling, order your photodiode to be mounted in the Lab Buddy.    Balanced PIN Photoreceivers

  • Industry Leading OSNR Performance

  • Peak Detector Function for Monitoring of AC Photo-Current

  • Very High Differential Conversion Gain

  • Differential or Single-Ended RF Outputs


Highly Linear Photodiodes ( HLPD®)

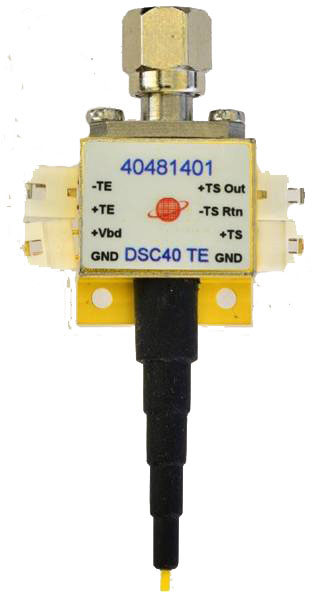

Thermo-Electrically Cooled Extra Highly Linear Photodiode (xHLPD)

Thermo-Electrically cooled extra highly linear photodiode (XHLPD)

  • O/E bandwidth up to 10 GHz

  • RF Output up to 4 Vpp

  • Phase linearity < 5 rad/W

  • Wavelength Range: 1064 - 1650 nm

  • Built-in TE cooler and tempearture sensor

Highly Linear InGaAs Photodiode (HLPD) Lab Buddy to 22 GHz

The Highly Linear Photodiode (HLPD) Lab Buddy incorporates Discovery Semiconductor's state-of-the-art highly linear photodiode with high optical power handling capability

  • O/E bandwidth up to 10 GHz

  • RF Output up to 4 Vpp

  • Phase linearity < 5 rad/W

  • Wavelength Range: 1064 - 1650 nm

  • Built-in TE cooler and tempearture sensor


100G/200G/400G Coherent Optical Receivers

AGC Balanced PIN + TIA Optical Receiver

DSC-R412 Linear AGC Balanced Receiver for 40G/100G Coherent Communications

  • Adjustable differential transimpedance gain (50 to 4000 ohms)

  • Adjustable differential output voltage (200 to 700 mVp-p)

  • Wide optical dynamic range of -16 to +2dBm

  • Wavelength Range of 1064 to 1650 nm

  • Excellent DPSK Eye Pattern quality

Coherent Receiver Lab Buddy

DSC-R413: DP-QPSK 100 Gb/400 Gb Coherent Optical Receiver Lab Buddy Lab Buddy

  • Easy-to-use lab instrument

  • Four well-matched Linear Balanced PIN/TIA Photoreceivers

  • Integrated Dual-Polarization 90 Degree Optical Hybrid

  • Two modes of operation: Automatic and Manual Gain Control

  • Adjustable differential gain

  • Adjustable RF bandwidth for all channels

  • Dual Polarization I/Q Transmitter Characterization

  • Intradyne Link Testing

  • High Speed ADC and DSP Development


2 Micron InGaAs Photodiodes and Optical Receivers

High Optical Power Handling, Highly Linear 2.2 Micron Wavelength InGaAs Photodiodes up to 5 Ghz

50

  • High Current Handling (>30 mA)

  • Useable spectral wavelength range 1200 – 2200 nm

  • One device for multiple wavelengths reduces operational & inventory costs

High Speed 2.2 Micron InGaAs Photodiodes to 20 GHz

<?php include('/includes/prodpages/DSC2-30S40S50S_title.inc'); ?>

  • High Current Handling (up to 15 mA)

  • Useable spectral wavelength range 1200 – 2200 nm

  • K-connector or surface mount package options

  • One device for multiple wavelengths reduces operational & inventory costs

2.2 um InGaAs Optical Receivers

2 Micron InGaAs Photodiodes and Optical Receivers installed in Lab Buddy

  • Spectral Wavelength Range of 1.2um to 2.2um

  • LIDAR @ 2um

  • Balanced or Single Input Versions


InGaAs Narrowband Receivers for 60 GHz cellular, Ka Q U V bands

Model

Application

Specification

Package Option


LMDS or cellular bandMicrowave bands for RF over fiberTyp. Amp. Power GainModuleLab Buddy
DSC-R406 - PIN Photoreceiver with FWHM Bandwidth of 20 - 32 GHz28 GHzKa,K20 dB
DSC-R407 - PIN Photoreceiver with FWHM Bandwidth of 36 - 44 GHz39 GHzQ,U18 dB
DSC-R408 - PIN Photoreceiver with FWHM Bandwidth of 42 - 60 GHz60 GHzQ,U,V20 dB


Wideband RF Amplifiers

Part NumberFrequency RangeTypeInput/Output
DSC-R41430 kHz - 45 GhzInverting, LinearSingle Ended
DSC-R41530 kHz - 20 GhzLinear, Adjustable Bandwidth & Gain Control (AGC)Differential
DSC-R41630 kHz - 20 GhzLimiting, High CMRRDifferential
DSC-R41740 kHz - 70 GhzOptimized for V-Band appsSingle Ended

Wideband RF Amplifier from 30 kHz to 45 GHz

Wideband RF Amplifier from 30 kHz to 45 GHz

  • Easy-to-use RF amplifier gain block

  • Ultra Broadband response

  • Low Noise 3.2dB Typical

  • Powered from a single regulated +5V DC supply

  • Ideal for Optical Communications (30 kHz low frequency cutoff)

  • BER and Impulse Measurements

  • 25G/40G VCSEL Driver Amplifier

Wideband Linear Differential Amplifier from 30 kHz to 20 GHz with Adjustable Gain and Bandwidth

Wideband-Limiting-Differential-Amplifier-from-30-kHz-to-20-GHz

  • Easy-to-use RF amplifier gain block

  • Adjustable Gain and Bandwidth Control (AGC)

  • Ultra Broadband response

  • Differential GPPO inputs and outputs

  • Powered from a single regulated +5V DC supply

Wideband Limiting Differential Amplifier from 30 kHz to 20 GHz



  • Easy-to-use RF amplifier gain block

  • Ultra Broadband response

  • Differential GPPO inputs and outputs

  • Powered from a single regulated +5V DC supply

Q/V Band Amplifier from 35 GHz to 70 GHz

discovery semiconductors wideband amplifier 40ghz 70 ghz DSCR-417

  • Easy-to-use RF Amplifier Gain Block

  • Low Noise 3.8dB Typical

  • Short Haul / High Capacity Links

  • Wireless LANs

  • RF-over-Fiber

  • Antenna Remoting


Lab Buddy: The Most Versatile O/E Converter

10G Receivers



25G Datacom Receivers ---CDR & PAM4



40G Receivers



2 Micron Receivers
