Anitoa is a young Silicon Valley (founded 2013) company that is developing technologies to detect, and help fight infectious pathogens in our body, food and environment. Anitoa created highly-integrated biosensors and systems for a new generation of portable molecular testing solutions that can identify infectious bacteria and virus DNA/RNA or anti-body responses with highly specific and actionable diagnostics information.
产品列表

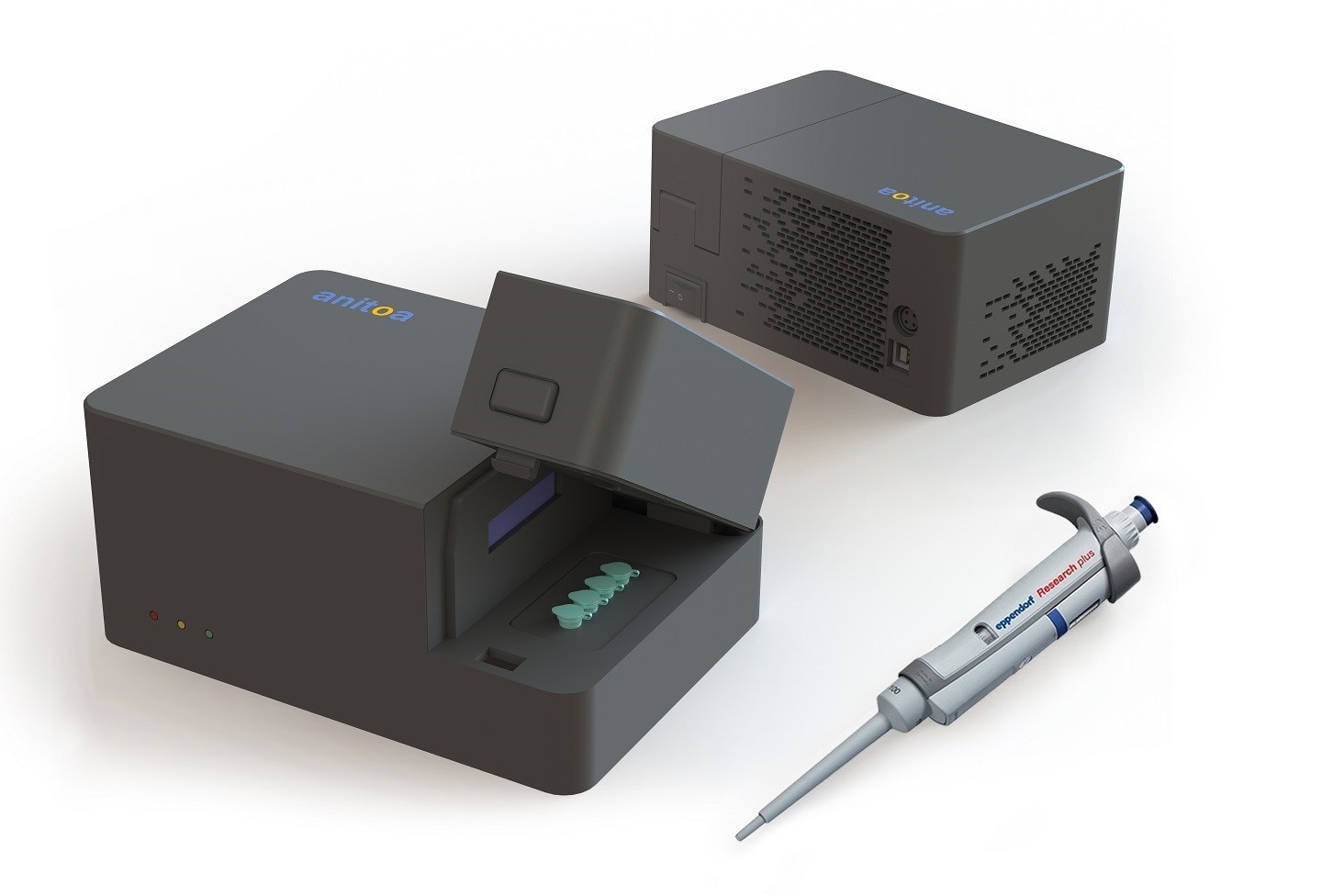

Maverick, an Ultra-Portable qPCR System
Meet Maverick, an ultra-portable, fast, and Bluetooth(R) 2.0-enabled qPCR system that is compatible with standard qPCR assays. Target applications are rapid, on-the-site nucleic acid test of infectious diseases; blood screening; food safety and environmental monitoring.
Maverick features a 4-channel fluorescence optical system based on Anitoa CMOS ULS24 Ultra-low-light biosensor chip. With no internal moving parts, Maverick is rugged and requires no calibration to operate.
Download More Information

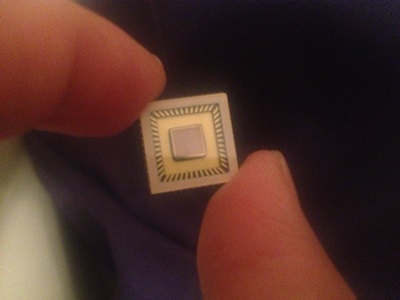

CMOS Ultra-low-light Bio-optical Sensor ULS24
(Now in volume production)
The Anitoa ULS24 is an ultra-low-light CMOS image sensor (CIS). Its low cost, small form factor and high level of integration make it optimally suited for use in a portable device in medical, scientific and industrial applications. An example of such application is a field portable nucleic-acid-test (NAT) system that performs molecular sensing based-on fluorescence or chemiluminescence signaling principles.
Features
Ultra low-light sensitivity. Detection threshold 3.0 x 10-6 lux
Low dark current; high SnR and wide dynamic range.
Built-in 12-bit ADCs; excellent linearity.
3.3V and 1.8V power supply; 30mW max power.
Built-in temperature sensor; wide operating temperature range.
Download More Information
ULS24 Solution Kit
A "Solution Kit" is available for customer evaluation of ULS24. The Solution Kit includes the ULS 24 Sensor IC, an interface board, and software (SDK with optional Python interface). This solution kit can readily interface with a PC via USB. A 4-Channel Solution Kit is also now available.
Download More Information
Datasheet of ULS24 Solution Kit
Compact Multi-channel Fluorescence & Chemiluminescence Cameras
The Anitoa CFIx24 is a palm-sized turn-key fluorescence camera system, powered by ULS24 CMOS bio-optical sensor chips. It features 1-4 channels simultaneous fluorescent emission wavelength sensing, plus optional integrated LED light source with collimation lens system. This camera can be conveniently embedded in a small instrument for molecular imaging.
Download More Information
Preliminary Datasheet of CFIx24 ULS24-Based Chemiluminescence Camera, CCIx24
