400-863-9100

Angstrom Inc(美国)

http://www.angstrom-inc.com

地址:
12890 Haggerty Rd. PO Box 248 Belleville, MI 48112 United States
电话:
+1 734-697-8058
传真:
+1 734-697-3544
产品:
光谱分析仪

公司简介

Provider of arc-spark optical emission spectrometers and retrofit readout systems for existing spectrometers. Supplier of spectroscopic sample preparation equipment.


产品列表

spectrometers

ARTUS 8 CCD Desktop Spectrometer

PolySpek Neo CCD Desktop Spectrometer

PolySpek Jr. CCD Desktop Spectrometer

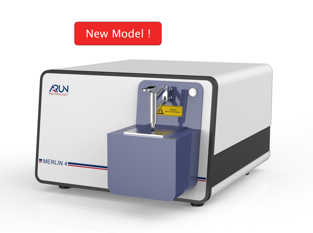

MERLIN 4 CCD Desktop Spectrometer


X-Ray Sample Prep

TE250 Ring Pulverizer for powdering samples to analytical fineness.




4451AE Briquet Press for pelletizing powdered samples.

Angstrom Handy-Kaps for sample making

upgrade

Our new Version 3 Analytical Software is now available as an upgrade to replace Version 1 or 2 software packages on V-950 Spectrometers and S-1000 Upgrade systems. The new package is a complete re-write and adds many new features along with better functionality.

Your system can be upgraded during a routine maintenance visit and all of your existing calibration matrices can be easily imported. Version 3 also incorporates our on-line support system.

We can rebuild and upgrade your old 4451A or 4451AE Briquet Press to not only look like new, but also perform like new as well. Many customers cannot tell the difference between a press that has been rebuilt by our staff and a new one. Let our factory experts extend the life of your existing unit for many more years of use with an upgrade package.

All work is performed at our factory in Belleville, MI and is guaranteed.

If you have an aging Jarrell-Ash, ARL or Baird laboratory type spectrometer that is no longer supported by the manufacturer or needs a more current interface, the S-1000 Readout Upgrade is a logical choice. A combination of electronics and software, the S-1000 system completely replaces your current interface with one can be used with current operating systems.

Our 250LV Source Unit is a stand alone source unit replacement for aging arc-spark spectrometer systems. If your current source is in need of upgrade or repair, the 250LV is a perfect replacement system. Applications include replacement for Jarrell-Ash, Baird and ARL laboratory type systems. Please contact us for a detailed quote.

Hot Metal Molds

Angstrom Hot Metal Molds are used to sample molten metal, providing a solid sample that can be analyzed using an arc-spark or x-ray spectrometer. A variety of molds are available for sampling various metal types.

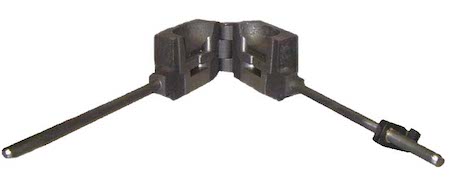

The 2392 vertical pour mold is used for sampling aluminum, zinc, lead and magnesium base alloys. It is made from machined cast iron and produces a sample that is 2-1/2" in diameter and 7/32" thick.

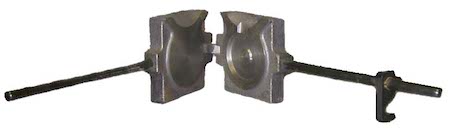

The 2393 horizontal pour mold is used for sampling aluminum, zinc, lead, and magnesium base alloys. It is made from machined cast iron and produces a sample that is 1-7/32" in diameter and 3/8" thick.

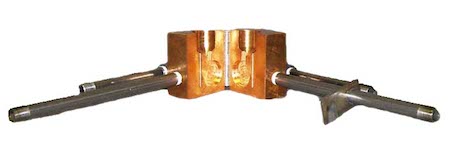

The 2394 series molds are water-cooled copper molds that are used for the rapid chilling of cast iron samples, providing a white sample that is suitable for spectrometer analysis. These are available in various sizes depending on your preference. Please contact us for a list of available sizes.



The 2398 series molds are open pour copper cup molds that are useful for sampling steels, pig iron and zinc base materials. These are available in various sizes depending on your preference. Please contact us for a list of available sizes.
