公司简介

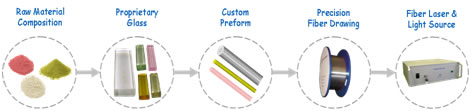

AdValue Photonics公司成立于2007年，公司位于美国亚利桑那州的图森，是全球科学研究、材料加工和医疗等领域2um光纤激光器的领先制造商。公司通过量身定制玻璃基质成分、掺杂浓度和调整光纤形状来优化激光器的性能和可靠性的创新型技术，生产出突破性的、高品质、创新型、高性价比的光纤激光器、光纤放大器、光纤宽带光源及其相关的零部件。


技术能力

  • 玻璃成分设计及玻璃加工

  • 光纤预制棒、光纤拉丝制造

  • 光纤激光器的研发和制造

  • 光纤隔离器（及全光纤隔离器）

  • 拥有超过10名专业从事玻璃、激光和光学设备的博士强大的研发团队


产品列表

1 µm Pulsed Single Frequency Fiber Lasers

Pulsed Single-Frequency Fiber Laser (AP-P-SF-1030)

1um Pulsed Single Frequency Fiber Laser ap-p-sf-1030

  • Pulse energy up to 1.2 mJ

  • Pulse width 2 ns to 300 ns (non-adjustable, factory selectable)

  • Repetition rate: 10 kHz to 1 MHz kHz (non-adjustable, factory selectable)

  • M2 < 1.2


1.55 um Pulsed Single Frequency Fiber Laser

Pulsed Single-Frequency Fiber Laser (AP-P-SF-1550)

1um Pulsed Single Frequency Fiber Laser ap-p-sf-1550

  • Pulse energy up to 1 mJ

  • Pulse width 2 ns to 300 ns (non-adjustable, factory selectable)

  • Repetition rate: 1 kHz to 10 kHz (non-adjustable, factory selectable)

  • M2 < 1.2


2 um Pulsed Single Frequency Fiber Lasers

Pulsed Single-Frequency Fiber Laser (AP-P-SF-1950)

1um Pulsed Single Frequency Fiber Laser ap-p-sf-1950

  • Pulse energy up to 1 mJ

  • Pulse width 2 ns to 300 ns (non-adjustable, factory selectable)

  • Repetition rate: 10 kHz to 1 MHz (non-adjustable, factory selectable)

  • M2 < 1.2

2 µm Q-Switched Lasers (ns)

Q-Switched Module (AP-QS1-MOD)

ap qs1 mod sm

  • Up to 10 kW peak power

  • Up to 10 W average power

  • 20-200 nm options

  • Rugged and reliable OEM package

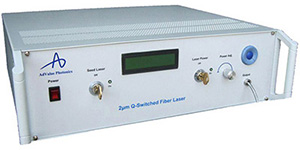

Q-Switched Laser (AP-QS1)

ap qs1 sm

  • Up to 10 kW Peak power

  • Up to 5 W Average Power

  • 20-200 nm options

  • Turn-key "benchtop" package

Q-Switched Laser (AP-QS)

ap qs sm

  • Q-Switched seed laser

  • 100 mW output power

  • 20-200 nm options

  • Turn-key "benchtop" package

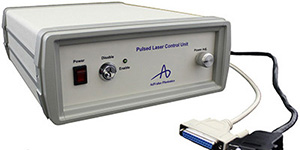

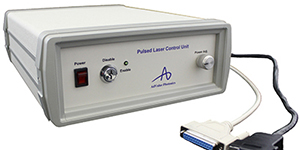

QS Module Control Unit (AP-CU-QS1)

ap cu qs1 sm

  • Provides power & control for the AP-QS1-Mod

  • Input power: AC 100~240 V (50/60Hz)

  • Laser modulation using BNC connector (TTL)

  • Intuitive analog power control

2 µm Mode-Locked Fiber Lasers (ps & fs)

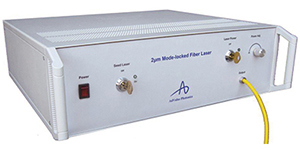

Mode-Locked Laser (AP-ML2)

ap ml2 photo sm

  • Pulse energy up to 10 µJ

  • Short pulse width of 800 fs

  • Repetition rate: 100-500 kHz

  • M2 < 1.3

Mode-Locked Laser (AP-ML1)

ap ml1 photo sm

  • Peak power 10 kW, avg power 1W

  • Pulse width < 3 ps

  • Repetition rate: 20-40 MHz

  • M2 < 1.3

Mode-Locked Seed (AP-ML)

ap ml photo sm

  • 950 fs and 350 fs options

  • Average power 5 mW

  • Repetition rate: 20-40 MHz

  • M2 < 1.1

2 µm Single Frequency Fiber Lasers (CW)

Single Frequency Seed (AP-SF)

ap sf photo sm

  • Up to 30 mW output power

  • Spectral linewidth down to 50kHz

  • M2 < 1.1

  • Turn-key "benchtop" package

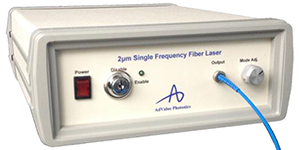

Single Frequency Laser (AP-SF1)

ap sf1 photo sm

  • Up to 5W output power

  • Spectral linewidth down to 50kHz

  • M2 < 1.3

  • Turn-key "benchtop" package

2 µm CW Fiber Lasers

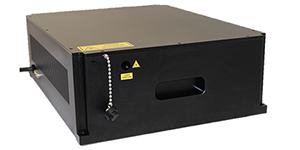

CW Module (AP-CW1-MOD)

ap cw1 mod photo sm

  • 10 W output power

  • Power adjustable from 10-100%

  • CW or Modulated Operation

  • Rugged and reliable OEM package

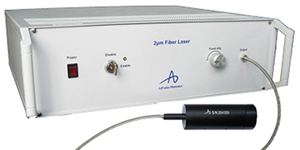

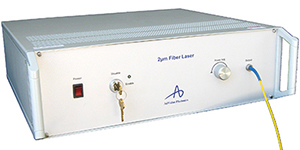

CW Fiber Laser (AP-CW1)

ap cw1 photo sm

  • Up to 10 W output power

  • Power adjustable from 10-100%

  • M2 < 1.1

  • Turn-key "benchtop" package

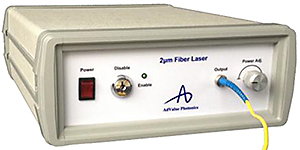

Low Power CW (AP-CW)

ap cw photo sm

  • 200 mW output power

  • Power adjustable from 10-100%

  • M2 < 1.1

  • Turn-key "benchtop" package

CW Module Control Unit (AP-CU-CW1)

ap cu cw1 photo sm

  • Provides power & control for the AP-CW1-MOD

  • Input power: AC 100~240 V (50/60Hz)

  • Laser modulation using BNC connector (TTL)

  • Intuitive analog power control

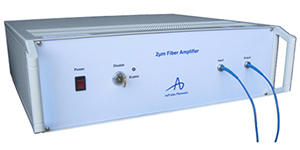

2 µm Fiber Amplifiers

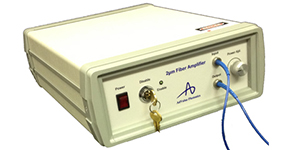

Fiber Amplifier (AP-AMP1)

ap amp1 photo sm

  • Up to 5 W output power

  • Power adjustable from 10-100%

  • Gain range 1.9 to 2.1 µm options

  • Turn-key "benchtop" package

200 mW Amplifier (AP-AMP)

ap amp photo sm

  • Up to 200 mW output power

  • Power adjustable from 10-100%

  • Gain range 1.9 to 2.1 µm options

  • Turn-key "benchtop" package

2 µm Broadband Light Sources

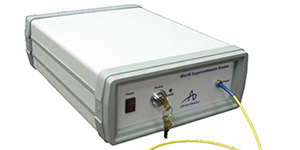

Mid-IR Supercontinuum (AP-SC-MIR)

ap sc mir photo sm

  • Over 500 nm bandwidth

  • 100 mW output power

  • M2 < 1.1

  • Turn-key "benchtop" package

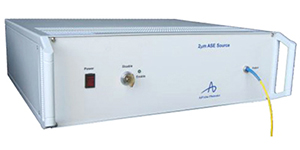

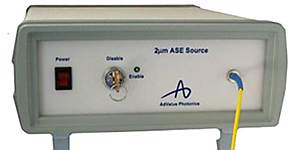

2.0 µm ASE Source (AP-ASE-2000)

ap ase 2000 photo sm

  • Over 170 nm bandwidth

  • 20 mW output power

  • M2 < 1.1

  • Turn-key "benchtop" package

2.1 µm ASE Source (AP-ASE-2100)

ap ase 2100 photo sm

  • Over 100 nm bandwidth

  • 10 mW output power

  • M2 < 1.1

  • Turn-key "benchtop" package

Components

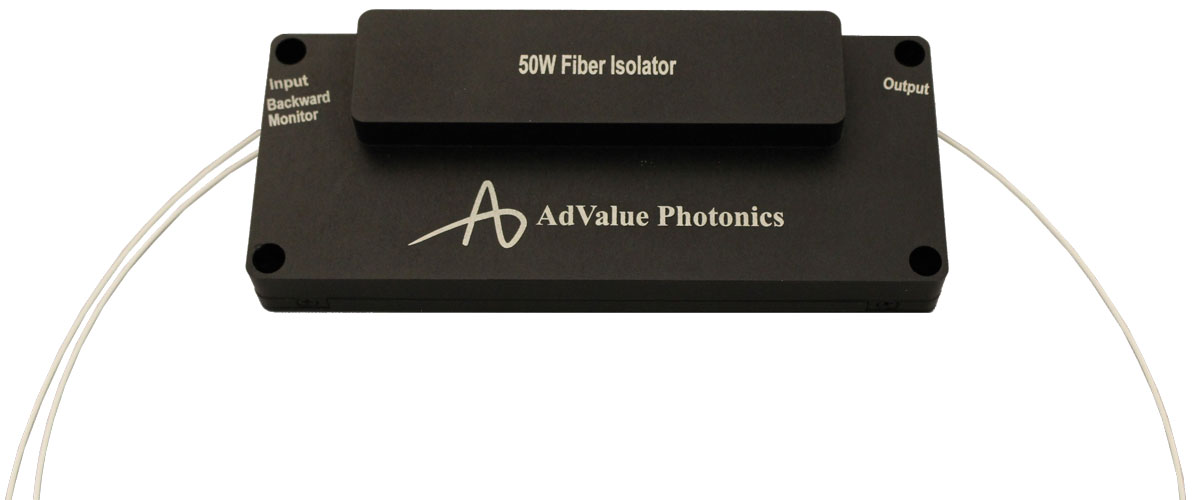

1 µm All-Fiber Isolators (AP-aISO)

ap aiso photo sm

  • 1064 nm & 1030 nm versions

  • 50 W forward and backward power handling

  • 20 dB isolation

  • 1.5 dB insertion loss

2 µm Isolators

ap iso 1550pi and 1550pm photo sm


  • 2 W average power

  • 1.5 dB insertion loss

  • 35 dB isolation

  • Small package

1.5 µm Isolators

ap iso 1550pi and 1550pm photo sm


  • 1 W, 5 W, and 10 W versions

  • Low insertion loss, 0.5 dB typical

  • High Isolation, up to 58 dB

  • Small package

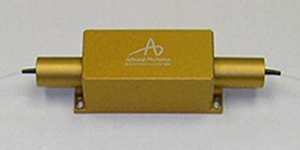

1 µm Free Space Isolators

ap iso 1064pi photo sm


  • 1 W, 5 W, and 20 W versions

  • Low insertion loss, 0.6 dB typical

  • High Isolation, up to 40 dB

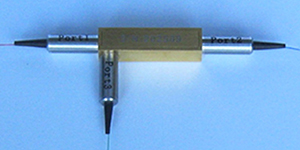

2 µm Circulators

ap cir 2000pi and 2000pm photo sm


  • 2 W max power

  • 1.2 dB Insertion Loss

  • 16 dB Isolation

  • 40 dB min crosstalk
