公司简介

Ⅱ-Ⅵ Photonics公司是世界上最大的泵浦激光器厂家,主要产品有980nm泵浦激光二极管,VCSEL,光通信无源器件,耦合器,光衰减器,EDFA,增益平坦滤波器,波长锁定器等。


产品列表

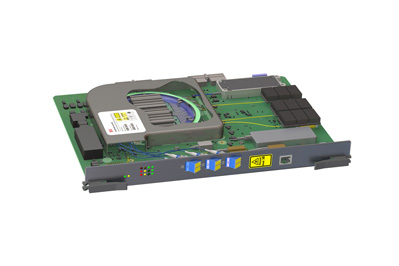

Subsystems & line Cards


Features
  • Leading edge high density solutions

  • Optimized optical, electrical and mechanical designs

  • Cost-effective, high value-added features

  • Plug-and-play, health monitoring and optical safety

  • Industry leading control architectures

Applications

  • Amplification: EDFA, Raman, Hybrid Raman-EDFA

  • Switching: Multi-cast switching and WSS/ROADM


Amplification

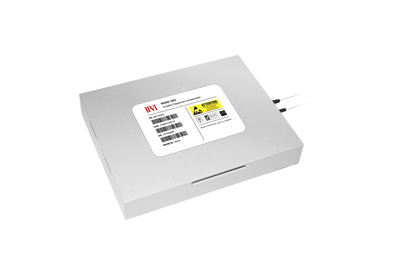

Gain-Block EDFA


Features

  • Custom compact form factors

  • Low power consumption under 2 Watts

  • High output power up to 20 dBm

  • In house 980 nm pump laser

  • Integrated tunable optical filter option

Applications

  • Direct detection transponders

  • Coherent transponders

  • 100, 200 & 400 Gb/s transmission

Fixed-Gain EDFA


Features

  • Custom compact form factors

  • Low power consumption under 2 Watts

  • High output power up to 20 dBm

  • In house 980 nm pump laser

  • Integrated tunable optical filter option

Applications

  • Direct detection transponders

  • Coherent transponders

  • 100, 200 & 400 Gb/s transmission

Variable-Gain EDFA


Features

  • Embedded variable-gain control

  • Industry-leading fast-transient control

  • High output power up to 23 dBm

  • Gain range up to 40 dB

Applications

  • Reconfigurable optical add/drop multiplexer (ROADM)

  • Flex-spectrum super-channel transmission

  • Multi-reach & ultra-long haul transmission

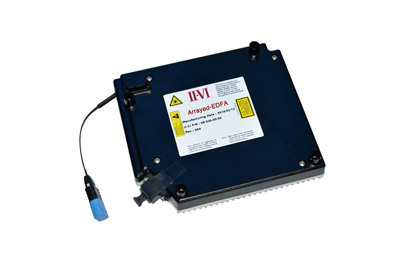

Arrayed-EDFA


Features

  • Compact bi-directional 4-port design (8 amplifiers)

  • Industry-leading fast-transient control

  • High output power up to 23 dBm

  • Gain range up to 40 dB

Applications

  • Colorless, direction-less, contention-less (CDC) ROADM

  • Flex-spectrum super-channel transmission

  • Multi-reach & ultra-long haul transmission

Hybrid Raman-EDFA


Features

  • Multi-layered safety schemes

  • Line diagnostic capabilities

  • High output power up to 23 dBm

  • Gain range up to 40 dB

Applications

  • Reconfigurable optical add/drop multiplexer (ROADM)

  • Flex-spectrum super-channel transmission

  • Multi-reach & ultra-long haul transmission



Monitoring

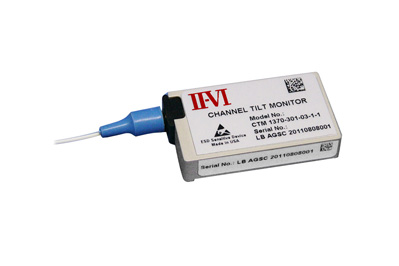

Optical Channel Monitors – CTM Series


Features

  • 10G/40G/100G/400G/1T signals

  • Flex-BW for flexible grid applications

  • Full C- or L-band scanning range

  • Fast response time

  • Small size

Applications

  • ROADM/OADM equalization

  • Smart amplifier gain equalization

  • Self-managed Mux control

  • Power threshold crossing alarms

  • Remote power monitoring & control

  • Automated provisioning & maintenance

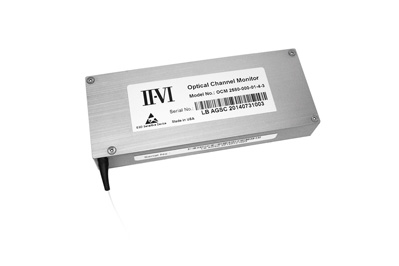

Optical Channel Monitors – OCM Series


Features

  • 10G/40G/100G/400G/1T signals

  • Flex-BW for flexible grid applications

  • Full C- or L-band scanning range

  • Wide channel power divergence

  • Fast response time

  • Dual-mode: scanning & dwelling

  • Access to photodiode response in dwell mode

Applications

  • ROADM/OADM equalization

  • Smart amplifier gain equalization

  • Self-managed Mux control

  • Power threshold crossing alarms

  • Remote power monitoring & control

  • Automated provisioning & maintenance

  • Wavelength tagging

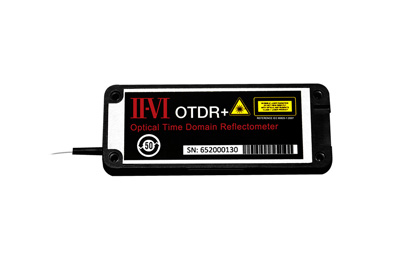

Optical Time Domain Reflectometer – OTDR+ Platform


Features

  • High spectral resolution

  • Low optical power consumption

Applications

  • Embedded OTDR in Metro, Regional and Long-Haul networks

  • Centralized control planes

  • Raman amplification


Datacom

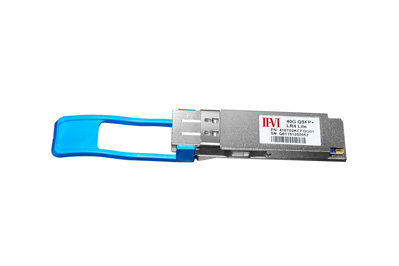

40G QSFP+ LR4


Features

  • Micro-optics MUX/DEMUX

  • Temperature range from 0 to 70C

  • Uncooled 4x10 Gb/s CWDM transmitter

  • Power consumption <3.5 W

Applications

  • 40G LR4 Ethernet

  • Routers, data centers

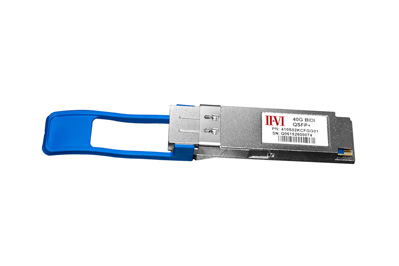

40G QSFP+ LR4 BiDi


Features

  • Micro-optics MUX/DEMUX

  • Temperature range from 0 to 70C

  • Uncooled 4x10 Gb/s CWDM transmitter

  • Power consumption <3.5 W

  • Bidirectional on one fiber

Applications

  • 40G LR4 Ethernet

  • Routers, data centers

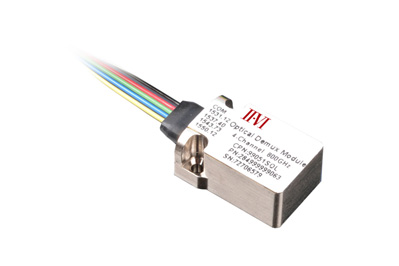

CFP/CFP2 mini-Mux/Demux


Features

  • 4 channels

  • CWDM: 20 nm channel spacing with 12 nm pass band

  • LWDM: 800 GHz channel spacing with 360 GHz pass band

  • 1310 nm in CWDM or LWDM or 1550 nm in LWDM

Applications

  • 10 km 40GBase CFP Transceiver

  • 40 km 100GBase CFP Transceiver


Amplifier Components

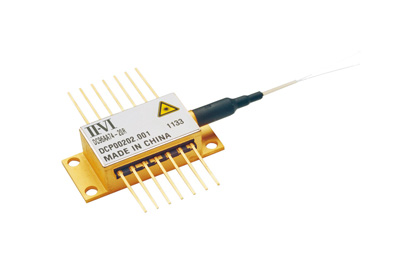

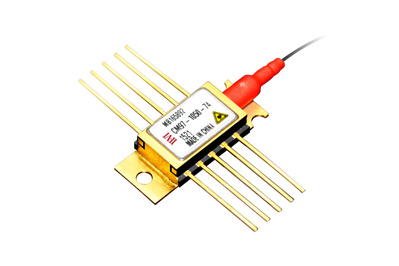

980 nm Pump Lasers – Single Chip


Traditional cooled pumps

  • 14-pin and new 10-pin package format

  • To 1000 mW power range

  • -20 to 75 C operating temperature

Semi-cooled pumps

  • 14-pin and new 10-pin package format

  • To 600 mW power range

  • -20 to 75 C operating temperature

Uncooled pumps

  • SFF 8-pin and new 10-pin package format

  • To 500 mW power range

  • -5 to 75 C

  • High return loss

Applications

  • Multi-stage DWDM

  • Low-noise EDFA

  • SFF and micro-amp applications


 Datasheets

Cooled 10-pin, 200 to 600 mW

D50563-PB

Cooled 14-pin, 200 to   600 mW

D50561-PB

Cooled 10-pin, Low   power consumption, 200 to 600mW

D50564-PB

Cooled 14-pin, Low   power consumption, 200 to 600mW

D50562-PB

Cooled 10-pin, 610 mW   to 1W

D50574-PB

Uncooled 8-pin, 110 to   300 mW

D50569-PB

Uncooled 10-pin, 310 to   500 mW

D50570-PB

980 nm Pump Lasers – Dual Chip


Cooled dual-chip pump

  • Legacy 14-pin package

  • Covering 2x 810 mW power range

  • -20 to 75 C operating temperatures

Uncooled dual-chip pump

  • New 10-pin package

  • Covering 2x 500 mW power range

  • -5 to 75 C operating temperatures

Applications

  • Arrayed amplification

  • MSA and multi-stage DWDM

  • ROADM

  • Low-noise EDFA

 Datasheets

Cooled, dual           chipD00358-PB

Uncooled, dual        chipD00526-PB

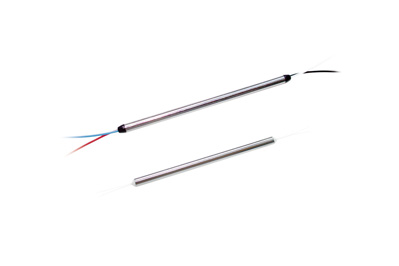

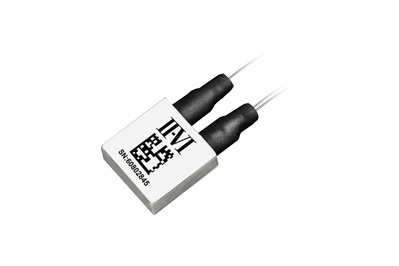

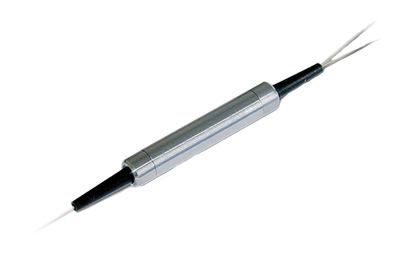

980/1550 WDM couplers


Features

  • High reliability performance

  • Low cost

Applications

  • DWDM amplifiers

  • Single-channel amplifiers

Gain Flattening Filters


Features

  • Wide-band, C & L-bands

  • Exceptional thermal stability

  • Low chromatic dispersion

  • Compact size

Applications

  • EDFAs

  • Raman amplifiers

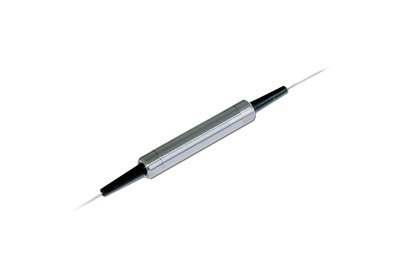

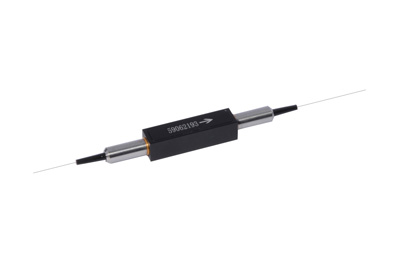

Optical Isolators


Features

  • One-stop source for a wide variety of Isolators

  • Lowest cost & high performance guaranteed

  • Compact size: 3.0×23 mm

  • Low PMD & low loss

Applications

  • EDFAs

  • Transceivers

Hybrid Devices


Features

  • Compact design

  • Optimum performance of combined functionality

  • Lower cost of combined functionality

Applications

  • DWDM amplifiers

  • Single channel amplifiers

  • ROADM systems


Transmission

Tunable Dispersion Compensators


Features

  • Highly accurate chromatic dispersion control

  • 50 and 100 GHz channel spacing designs

  • Designs to custom size requirements

Applications

  • Dynamic compensation in 10G and 40G networks

  • Accurate dispersion trimming at DWDM terminals

  • Dispersion emulation for test & measurement

Polarization Maintaining Coupler


Features

  • High polarization extinction ratio

  • Low insertion loss

  • High directivity

Applications

  • Coherent transceivers

  • Optical amplifiers

  • Power monitoring

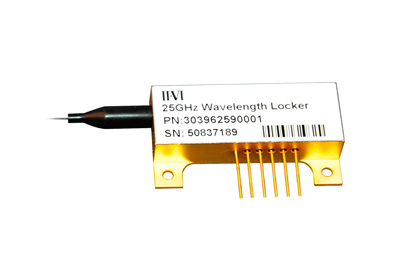

Wavelength Locker


Features

  • Wavelength stability within ± 1.25 GHz

  • Low TDFS and PDFS

  • Compact size

Applications

  • Laser locking for DWDM transmitters

  • DWDM channel frequency monitoring

  • DWDM channel power monitoring

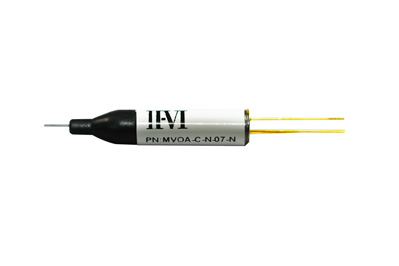

Variable Optical Attenuator


Features

  • 40 dB of attenuation range

  • 0.8 ms response time

  • Low power consumption

Applications

  • Optical amplifier gain control

  • Transmitter bring up

  • Receiver dynamic range optimization

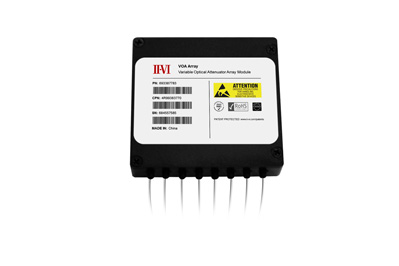

VOA-Array


Features

  • 40 dB of attenuation range

  • 0.8 ms response time

  • Digital interface

Applications

  • Dynamic wavelength equalization

  • Transmitter bring up

  • Receiver dynamic range optimization

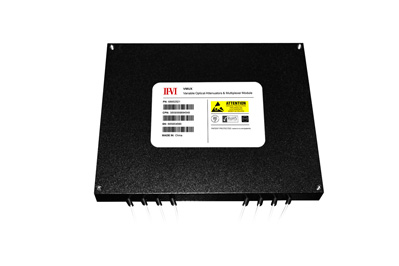

VOA-Array-Multiplexer


Features

  • 40 dB of attenuation range

  • 0.8 ms response time

  • Digital interface

Applications

  • Dynamic wavelength equalization

  • Transmitter bring up

  • Receiver dynamic range optimization

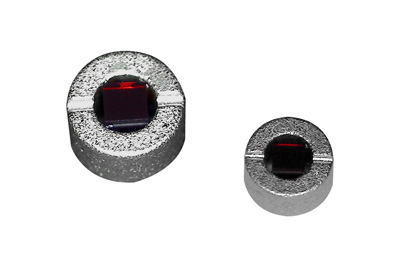

Free-space Isolators


Features

  • High isolation

  • Low insertion loss

  • Compact size

Applications

  • Suppression of optical back reflection in transmitters

  • uppression of optical back reflection in pump lasers

Fixed Wavelength Management

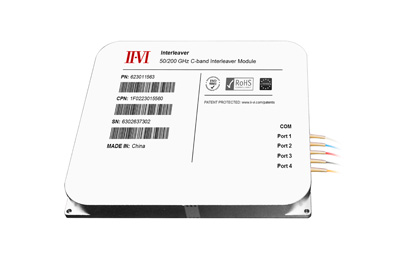

Interleaver




Features

  • High isolation

  • Low insertion loss

  • Low chromatic dispersion

Applications

  • Increased spectral efficiency

  • DWDM capacity upgrades

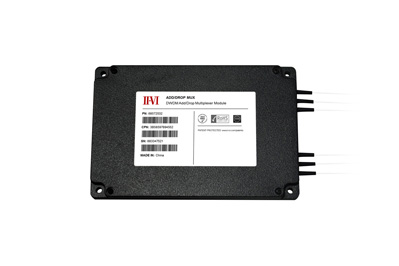

DWDM Modules


Features

  • Low insertion loss

  • Wide and flat pass band

  • High adjacent channel isolation

Applications

  • DWDM transmission

  • Telecom and CATV networks

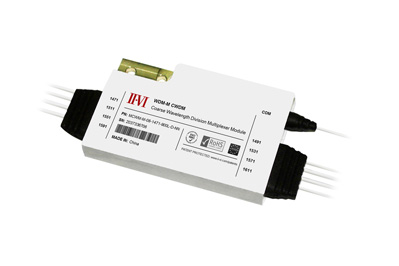

CWDM Modules


Features

  • Low insertion loss

  • Wide and flat pass band

  • High adjacent channel isolation

Applications

  • CWDM transmission

  • Telecom and CATV networks

Band Pass & Edge Filters


Features

  • Low insertion loss

  • Wide and flat pass band

  • High adjacent channel isolation

Applications

  • DWDM transmission

  • Telecom and CATV networks

Optical Circulators


Features

  • Low 5.5 mm diameter profile

  • Low insertion loss

  • Available housed in 3- or 4-port configuration

Applications

  • Fiber Bragg grating applications

  • Tunable dispersion compensators
