IFOS was formed by its current CEO and CTO, Dr. Behzad Moslehi, who graduated from the Stanford University Electrical Engineering Department, under professors Joseph Goodman and the late John Shaw, pioneers in the field of fiber optics who both served on the Board of Directors and/or Advisors over the years. The company maintains strong ties to Stanford University, but also a number of other centers of excellence across the US and occasionally overseas. Like many good Silicon Valley based companies, life started in a garage and as the company grew, IFOS moved from Mountain View to Sunnyvale and ultimately to its present larger location in Santa Clara, formed as Intelligent Fiber Optic Systems Corporation in 2001.
The company has developed pioneering, yet cost-effective optical fiber sensing system level products for the monitoring and control of temperature, static load, dynamic strain, acoustic emission and derived physical, chemical and biological measurands. These systems are used in the maintenance and prognostics of critical high-value assets in very harsh and demanding environments, to 1000°C, 1 kBar and high radiation levels. In 2006, IFOS purchased all assets of venture capital backed San Diego based oil & gas company Oluma™. At about the same time, IFOS began a series of collaborations on the development of optically sensorized/activated medical devices and fiber optic gyroscopes.
IFOS is continuously strengthening its management, business development, marketing, sales and engineering team and continues to leverage its experienced, multidisciplinary team of alumni, current professional staff and world class consultants to develop and commercialize new fiber optic sensing products and solutions to serves the needs of aerospace, energy and medical devices markets.
产品列表
FBG Interragators
Fiber Opitc Gyroscopes

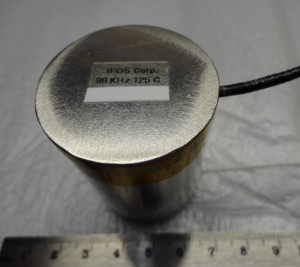

G*Sense™ FOG MWD
The IFOS Fiber Optic Gyroscope (FOG) is a small ruggedized angular rate sensor suited to demanding applications in harsh environments in several variants, such as units for measurement while drilling (MWD). Key features and benefits of the IFOS FOG include:
•Unprecedented noise and bandwidth specifications
•Digital FOG output at the modulation frequency (10’s of kHz) in the rotational rate domain
•No signature of angle quantization in Allan variance (-1 slope)
•No lower limit on AWN in frequency domain – PSD is ARW limited only
•Ultra-low:
•Angular jitter
•Angle White Noise (AWN)
•Angle Random Walk (ARW)
DTS/PTS/DAS
R*Sense® DTS-01 Product Specs* | ||
Measurement Range | ||
Temperature | -40 to +300°C | |
Distance | 5 km | |
Measurement Resolution | ||
Temperature | +/- 0.5°C | |
Distance | 1m over 3 km | |
Measurement Accuracy | ||
Temperature | +/-1°C | |
Distance | +/-2m | |
Acquisition Time | Minimum 2 minutes | |
Signal Processor | ||
Dimensions | 19” rack mount 3U chassis | |
Operating Temperature | -40 to +50°C | |
Interface | USB/ Ethernet/ RS-485 | |
Power Requirement | 800W, 115/240 VAC, 50/60 Hz | |
Specification dependent upon 1 fiber/cable type; 2 length of acquisition time. Specifications are indicative and may change without notice |
The IFOS Distributed Temperature Sensing (DTS) system utilizes several kilometers of optical fiber and an advanced signal processing unit to analyze Raman photon scattering data to determine the temperature along the entire fiber length. The fiber is typically jacketed in metal sheathing for ruggedness and enhanced lifetime. The cable can be deployed straight into boreholes capillary tubing or wound around tanks, drums, power cables or liquid, gas or utilities pipelines over long distances.
Applications :
Measures temperature along a ruggedized fiber cable
Used in harsh environments
Oil & gas wells
Electric Power Transmission Lines
Reactor Vessel Insulation
Pipeline Flow and Leakage
Environmental Remediation
Fire Detection
Concrete Curing
FyberSpace™
FyberSpace Fiber Half Couplers | ||
Number of Fibers | Pricing (each) | |
Single | 1 | Call for Quote |
Dual | 2 | Call for Quote |
Quad | 4 | Call for Quote |
Eight | 8 | Call for Quote |
Sixteen | 16 | Call for Quote |
Fiber Modes: | Single Mode Fiber | Other fiber types available. |
Coatings: | Standard. | Other coatings available. |
Polishing: | Depth of polishing can be carried for customer specifications |
